Army
& Navy CSL, London
12 bore Back action, Sidelock Non Ejector
no. 68743
Approximate date of manufacture: 1925
Click on these images for more detail.
Heritage
Guns' Comment
This gun represents an example in unusually fine
condition of the hammerless sidelock guns that were the backbone
of the English gun trade between the 1st and 2nd World Wars and
a welcome opportunity to buy a gun retailed by this well known
gunmaker. There is a little original colour hardening still visible
on the locks and action and this coupled with the sensitive restoration
makes it a very pretty and highly 'shootable' gun for either game
or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

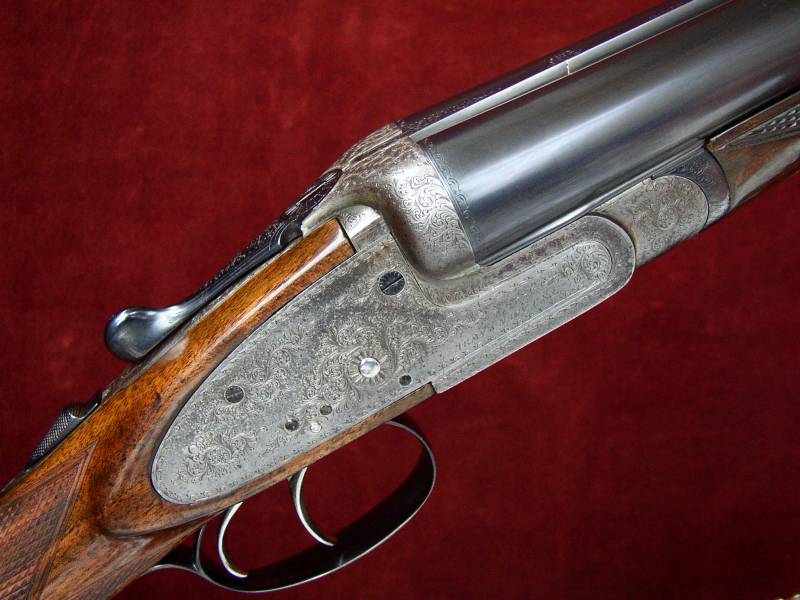

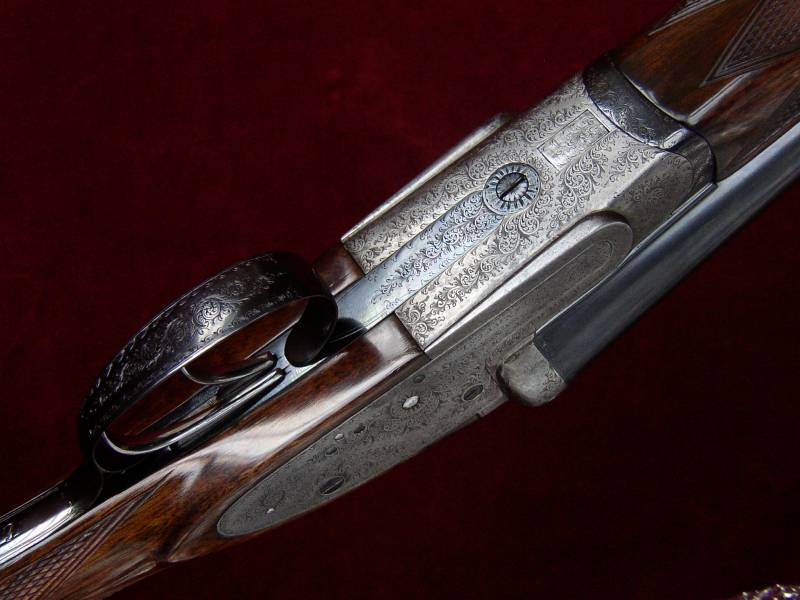

The action is of
Rogers design and features:
Double triggers bolted by an automatic top tang safety
slide,
Back action locks,
Top lever opening, operating a 'Purdey Bolt',
Three point bolting including Greener top extension,
Gun weight 6lb
12 1/2oz
Engraving style Fine scroll.
Trigger pulls measure approximately: Front trigger 6lbs Rear
trigger 6lbs
The steel barrels
are 30" in length, chambered for 2 ¾" (70mm) cartridges
and are of brazed 'dovetail' lump construction with soft soldered ribs.
Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2002.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.7mm (0.736")
|
0.735"
|
0.028" Minimum
|
0.007"
|
Left Barrel |
18.6mm (0.732")
|
0.732"
|
0.025" Minimum
|
0.043"
|

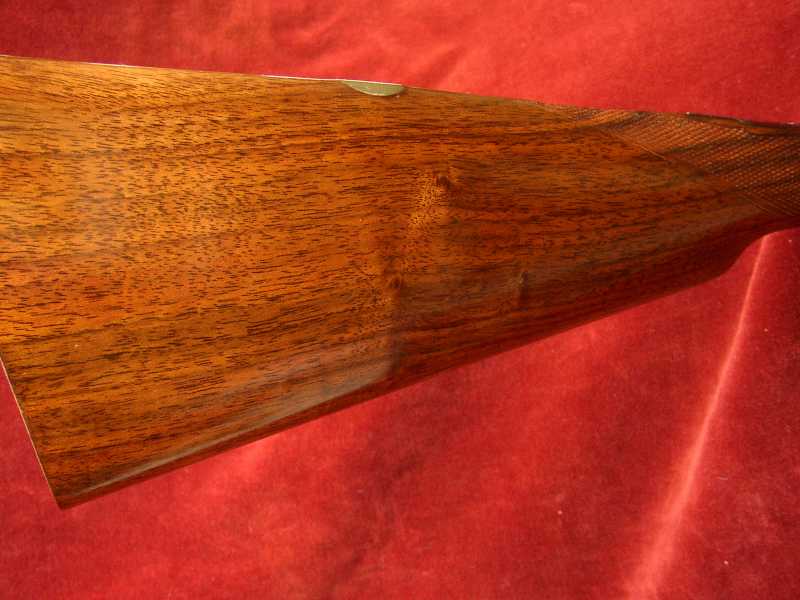

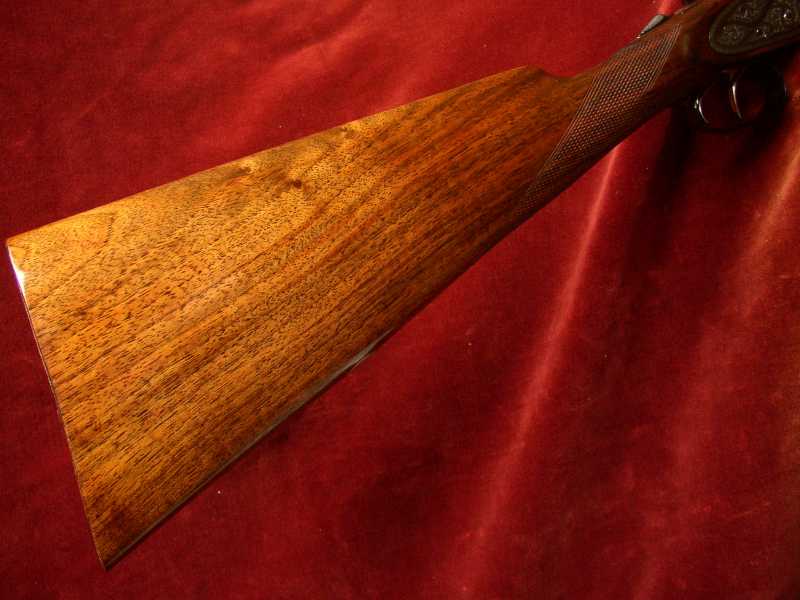

Straight Hand Stock
and Splinter Forend are crafted
from figured walnut. Whilst the forend is most likely original, the
stock is a figured replacement. These is a slim 'fitting' repair to
the top edge of the right lock plate. The stock is cast off for a right-handed
shot.
The 18 lines per inch
chequering has been recut to normal
sidelock design . The stock butt in unfinished to await the purchasers
choice of style.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 7/16"
|
n/a
|
14 7/16"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 3/8"
|
1 5/8"
|
2 3/16"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximate)
|
1/4" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Rogers action patent no. 397 of 1881,
Greener's top extension cross bolt patent no. 3090 of 1874
'Purdey Bolt' patent no. 1104 of 1863,
Anson's forend fastener patent no. 3791 of 1872
and last but not least
Henry's snap cap patent no. 3257 of 1870.
