Frederick T Baker, 88 Fleet St
& 21 Cockspur St, Pall Mall, London
.410 bore Sidelever, Back Action Sidelock
no. 7103
Date
of manufacture: 1882-1898
Click on these images for more detail.
Heritage
Guns' Comment
.410 shotguns from this period are usually quite modest items,
purchased as an introduction to shooting for a young child or
for vermin control in and around farm buildings. However,
‘modest’ is not a term that can be applied to this superb
little gun! FT Baker were renowned for their very finely
finished guns that featured ‘wall to wall’ engraving of very
Best quality and this gun is no exception. The wood has
fantastic colour and figure, the steel barrels measure up well
with only minimal pitting and the gun’s internals are bright
with virtually no corrosion. Furthermore, it has retained its
‘Makers original case which is most unusual. The superb
condition throughout is perhaps explained by having been in
the original purchaser’s possession since being bought new at
the end of the C19th. All in all, this is a very special
opportunity for any enthusiast of the very best and most
interesting products of the London gun trade and represents a
very rare chance to own such a spectacular .410 shotgun.
With good barrel dimensions, sidelever, interceptor sears,
well-proportioned wood and original case, this lovely little
gun would make a wonderful addition to anybody’s collection.

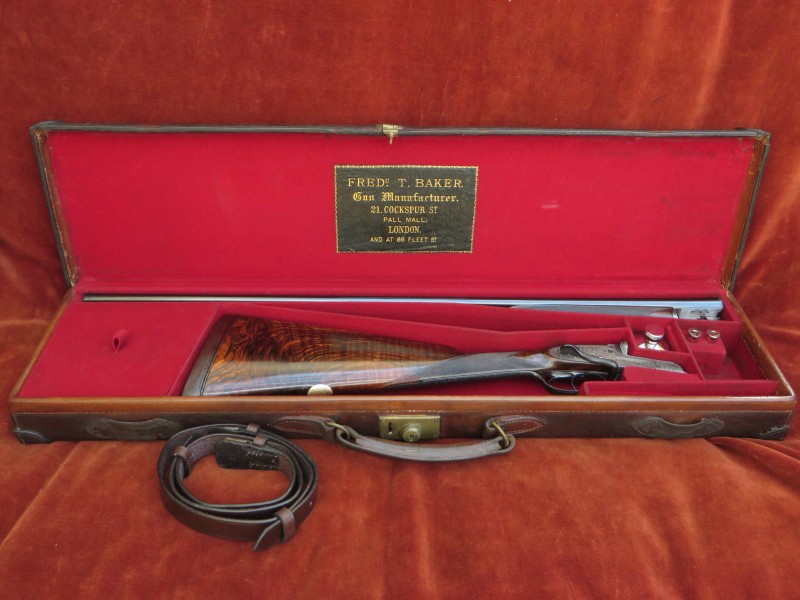

Presented in its 'Makers original leather case with some
accessories. The gun balances ¾” behind hinge pin.
WE REGRET THAT THIS
GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE
CONTACT US.
|
The
action
is of Thomas Southgate’s sidelock design and features:
Double
triggers bolted by an automatic top tang safety slide;

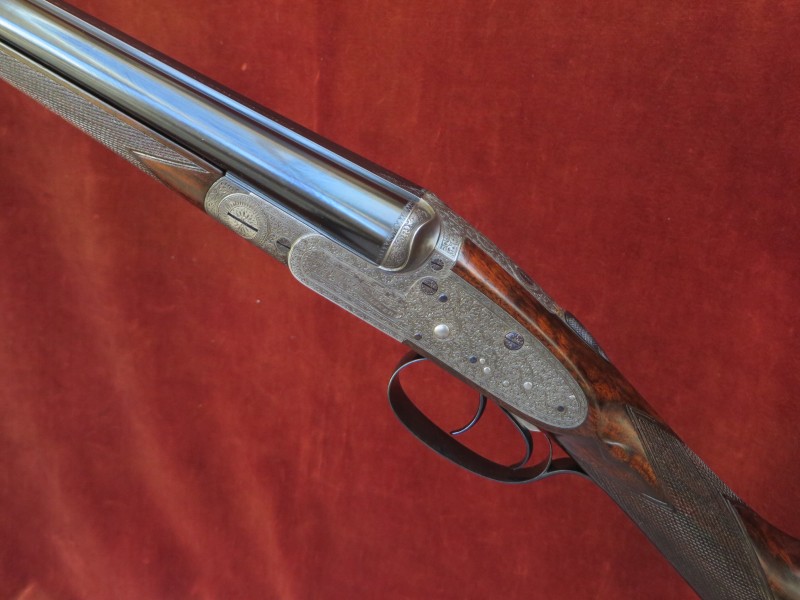

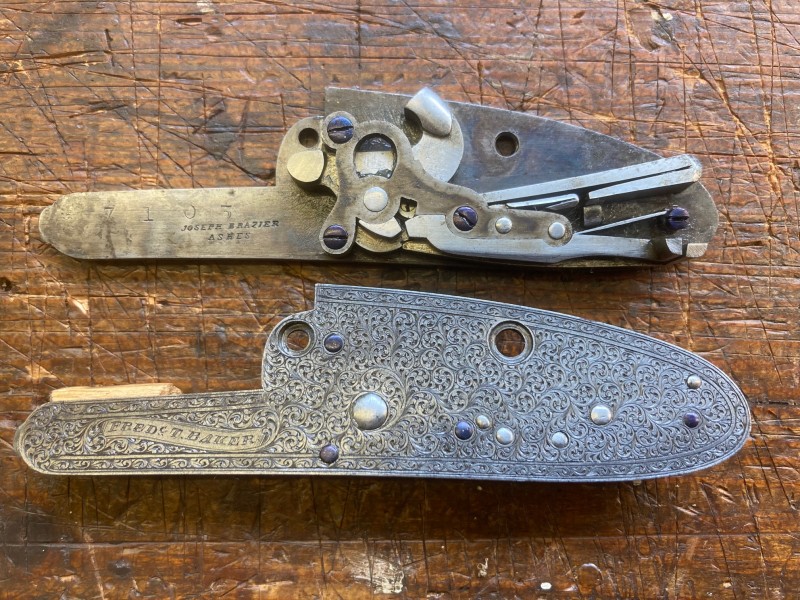

Back action,
10 pin sidelocks; Interceptor sears;

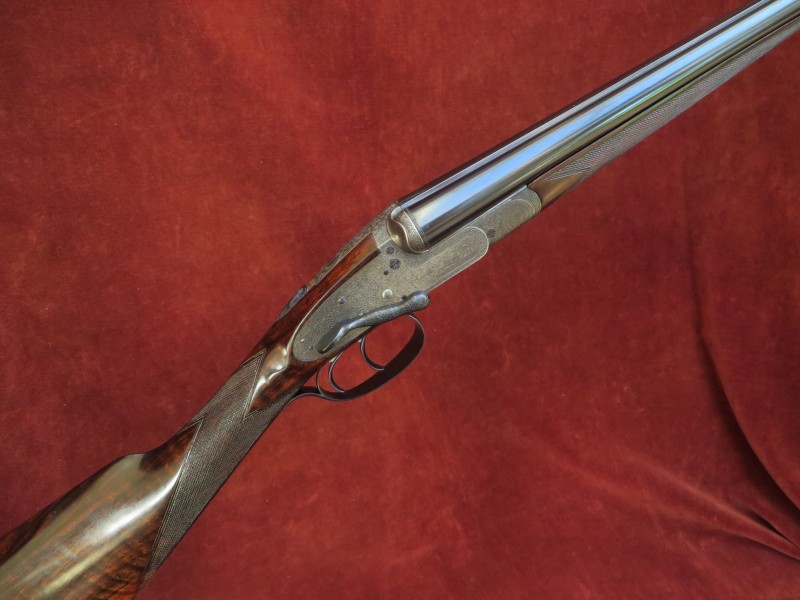

Sidelever operating a double
bite, Purdey bolt;
Roger’s cocking levers pivoting within the action
bar;
Anson pushrod forend catch.
Gun weight 4lb 7oz
Engraving style 100% coverage Very Best Foliate Scroll.

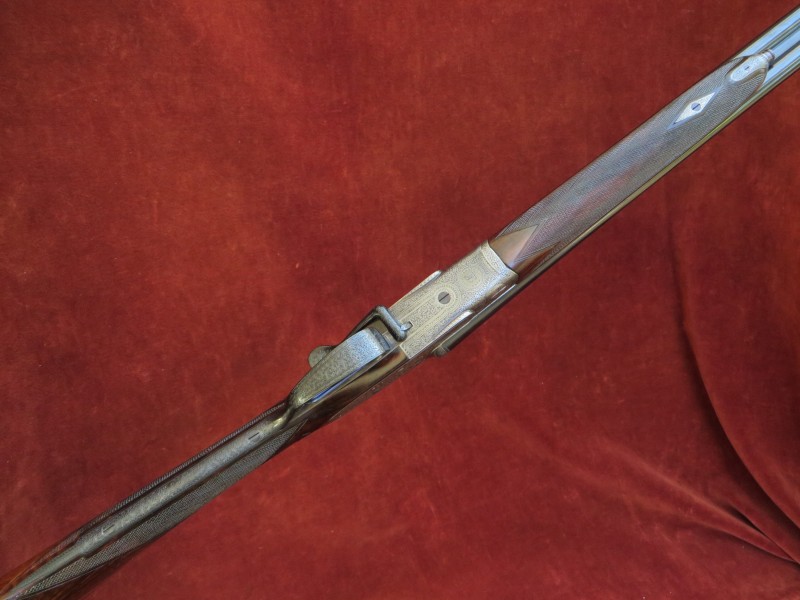

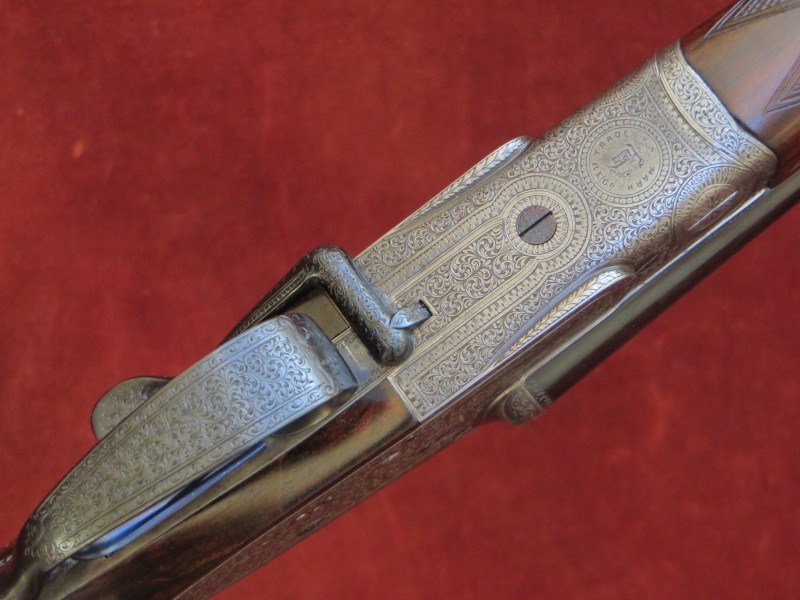

FTB

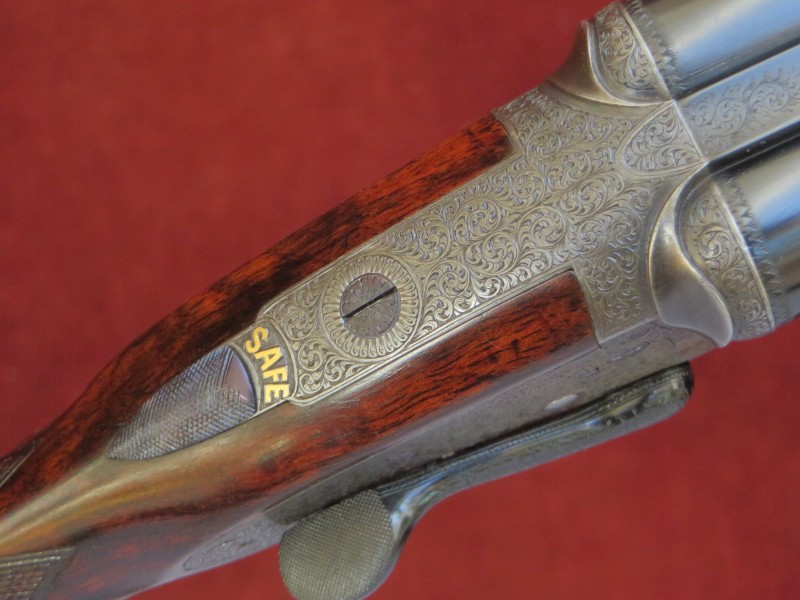

trade mark engraved on base of action. Gold inlaid ‘SAFE’.
Stylised
‘Fluted’ fences. Locks signed ‘FREDR T BAKER’.
Some
original hardening colour in protected places, otherwise lovely
patination.
Trigger pulls measure approximately: Front trigger
3 ½ lbs Rear trigger 4 ½ lbs

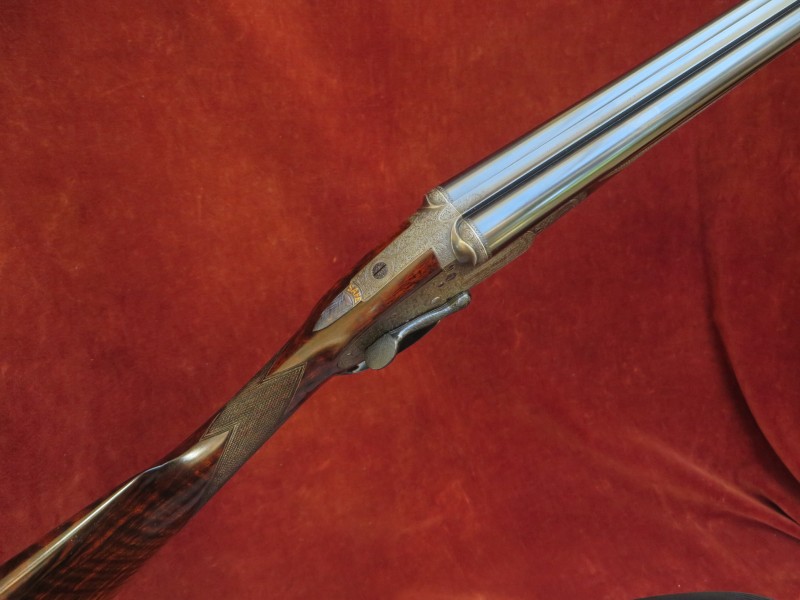

The Steel barrels
are 27" in length, chambered for 2 1/2" (65mm) cartridges and are of
brazed 'dovetail' lump construction with soft soldered ribs.
Top rib is of the smooth, concave type.
London
reproof for 65mm nitro powder cartridges in 1954-84.
Note: Due to the difficulty in accurately measuring these barrels, not
least the tightness of the chokes which meant the MWT could only be
measured from the breech end and chokes only by caliper, the figures
shown for 9” FB, MWT’s & choke should be treated as approximate. We were
unable to measure the MWT's between 14" from breech to muzzle but the
internal bore appears parallel and we have no reason to think the MWT's
are low.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9"
from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel
|
0.415"
|
0.416"
|
0.037" @14" from
breech
|
0.025" (XF)
|
Left Barrel
|
0.415"
|
0.417"
|
0.039" @14" from
breech
|
0.025" (XF)
|

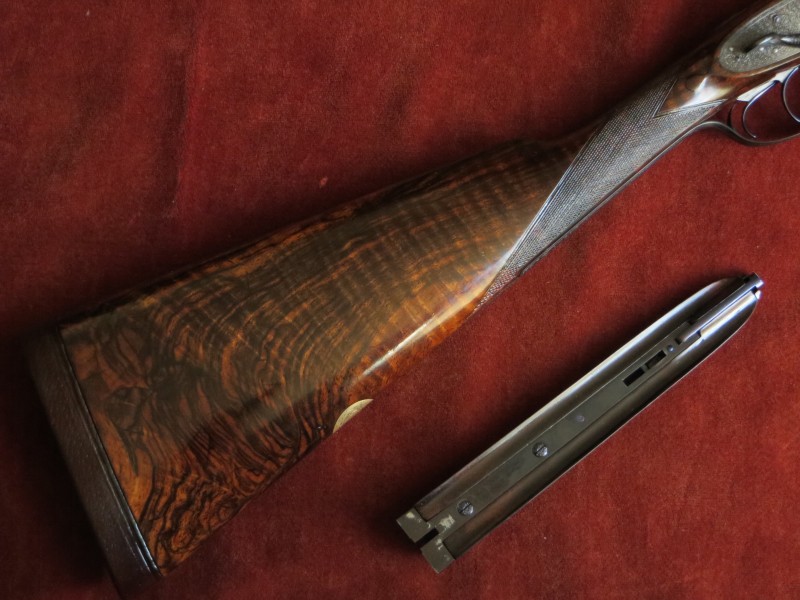

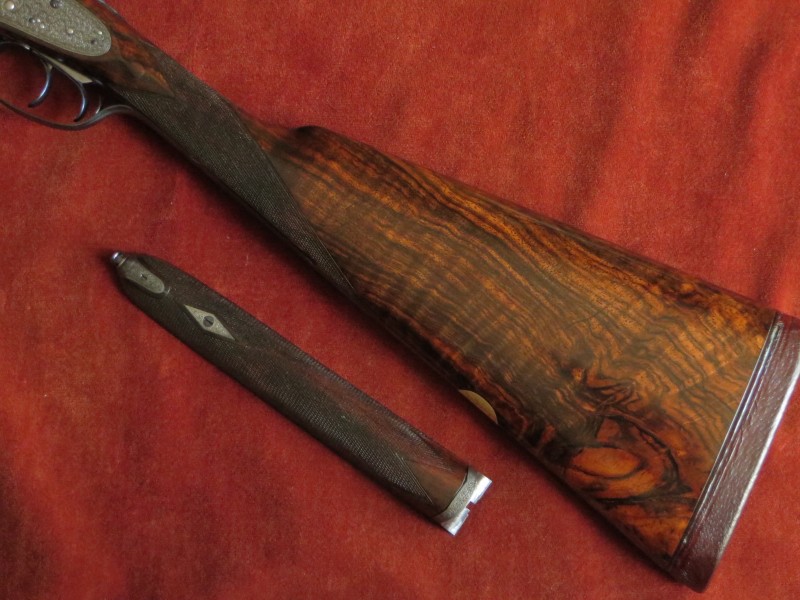

Straight Hand Stock and Splinter Forend
are crafted from superbly figured walnut.
We believe that the stock and forend wood is the original.
The stock is lightly cast off for a right-handed shot, features a
yellow metal oval engraved with gothic initials, well defined drop
points and is fitted with a 3/4” leather covered recoil pad.
There are several original inlays to the body of the stock to
correct natural ‘shakes’ in the wood. The forend features a finely
engraved diamond and forend tip.
The 24 lines per inch chequering
has been refreshed to its original sidelock pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth luster,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/2 "
|
14 1/2"
|
14 1/2"
|
14
7/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1
3/8"
|
1 9/16"
|
1
15/16"
|
Cast at Comb
|
Cast at Heel
|
Cast at Toe |
Negligible
|
1/8" (approximate)
|
5/16" (approximate) |
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and center of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Thomas
Southgate lockwork patent no. 12314 of 1889;
Roger's
cocking levers patent no 397 of 1882;
'Purdey Bolt' patent
no. 1104 of 1863;
Anson's forend fastener patent no. 3791 of
1872.
