John Blanch and Son, 29 Gracechurch Street, London
12 bore Back action, Sidelock Ejector
no. 5702
Approximate date of manufacture: 1887-1896, probably
around 1890.
Click on these images for more detail.
Heritage
Guns' Comment
Around the turn of the millenium, my father's Blanch
BA SLE was pronounced suitable only for retirement due to a poor
historical repair to the LH barrel after my father had taken a
bad fall whilst out shooting. This precipitated a search for a
similar gun to replace his which in turn led to my acquiring a
small collection of Blanch shotguns and in due course to my becoming
the proprietor of Heritage Guns.
Blanch gun no 5702 was one of the first guns by this London gunmaker
that I acquired and after various gunsmithing and restoration
work it became my 'go-to' gun for all my shooting, clays and game
alike. However over the years it has found itself replaced by
various more 'shiny' models and has fallen into disuse, so I now
am offering it for sale so it can start a whole new adventure
with a fresh, enthusiastic owner!
Having studied the history and guns of J Blanch and Son for some
twenty years, I feel I can speak with some authority on the subject.
It is my belief that by the 1890's Blanch had ceased to do much
gunmaking in house, concentrating on buying in from the trade
the very best products available, some completely finished and
ready for the rack but the top of their range bought in 'in the
white' from the likes of W&C Scott, John Robinson and Thomas
Perkes and having them finished within the London guntrade. This
allowed them to have a 'house style' often quite different from
the fashions of the time which allows their guns to stand out
from the crowd.
With its bold foliate engraving, strong stock and TIG sleeved
barrels, this gun is a 'shooter' in the best possible way and
should give many years of sterling service with normal maintenance.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

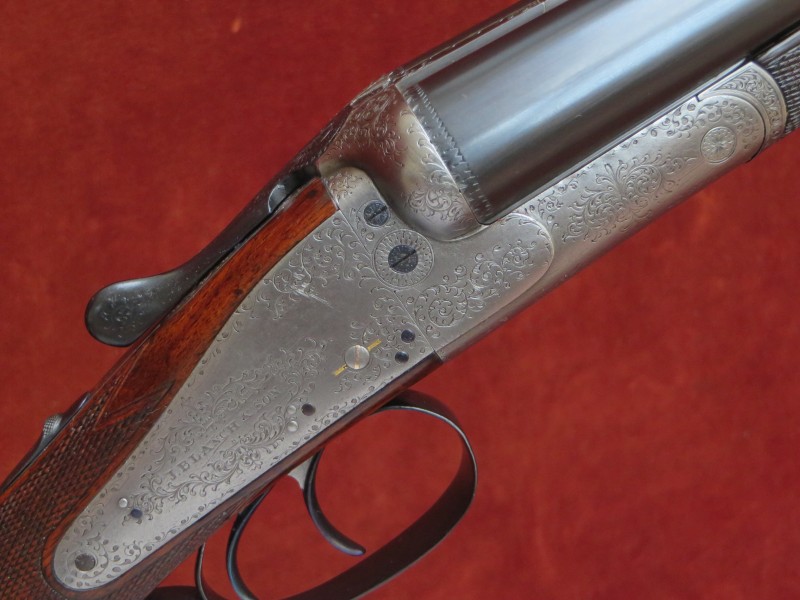

The action is of W & C Scott
& Co design and features:

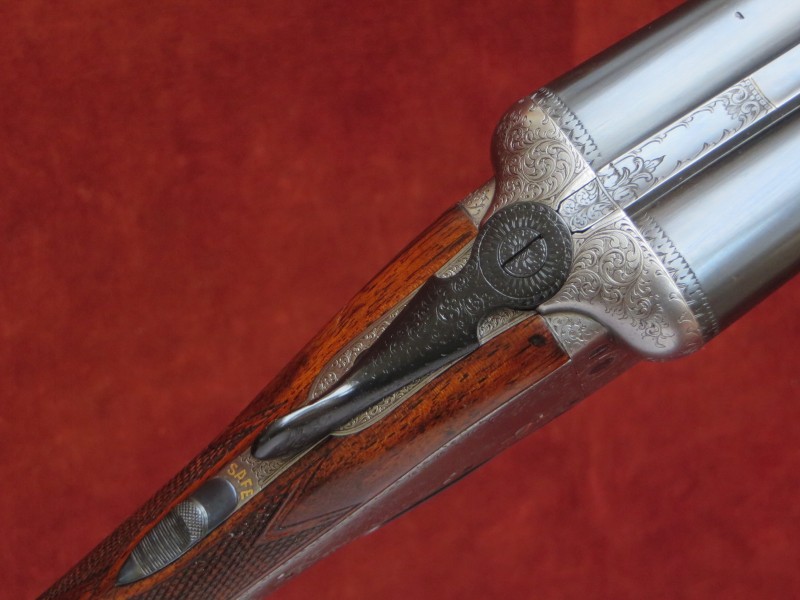

Double triggers bolted by an automatic top tang safety slide;
Back action, 8 pin locks with Robertson style interceptor sears and
gold lined cocking indicators;
Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle';
Top rib extension with 3rd bite;
Breech face 'Gas Checks';
Tumbler and sear ejectors to 'Deeley'/'Perkes' design tripped by cocking
rods running
from the action knuckle to the breasts of the tumblers;
Blanch 'Improved Snap Bolt' forend catch.
Gun weight 6lb 5oz
Engraving style Creeping vine border with bold foliate panels.
Gold inlaid SAFE.
Trigger pulls measure approximately: Front trigger 3 ¼
lbs Rear trigger 4 lbs
The TIG sleeved barrels are 28" in length, chambered for
2 ¾" (70mm) cartridges and are of brazed 'dovetail' lump
construction with soft soldered ribs.
Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2002.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9"
from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel
|
18.7mm (0.726")
|
0.735"
|
0.025"
|
0.012" (IC)
|
Left Barrel
|
18.7mm (0.726")
|
0.737"
|
0.022"
|
0.018" (M)
|

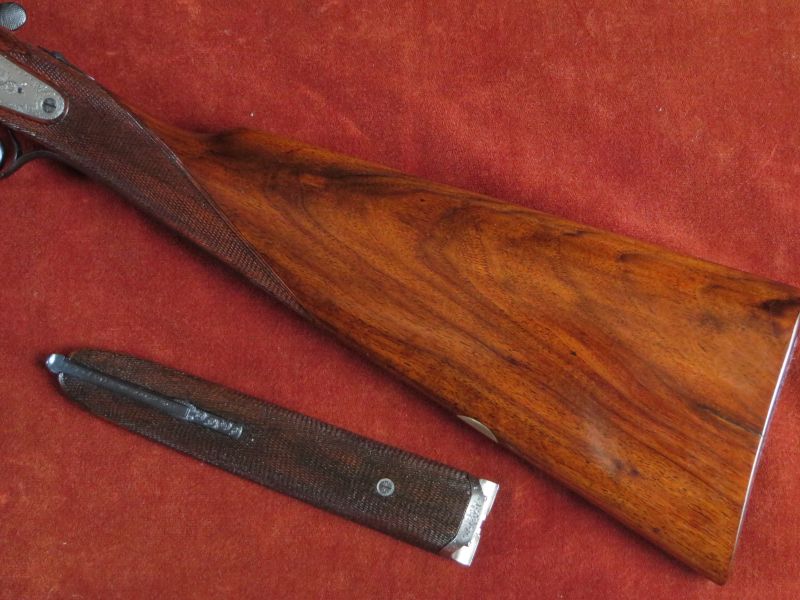

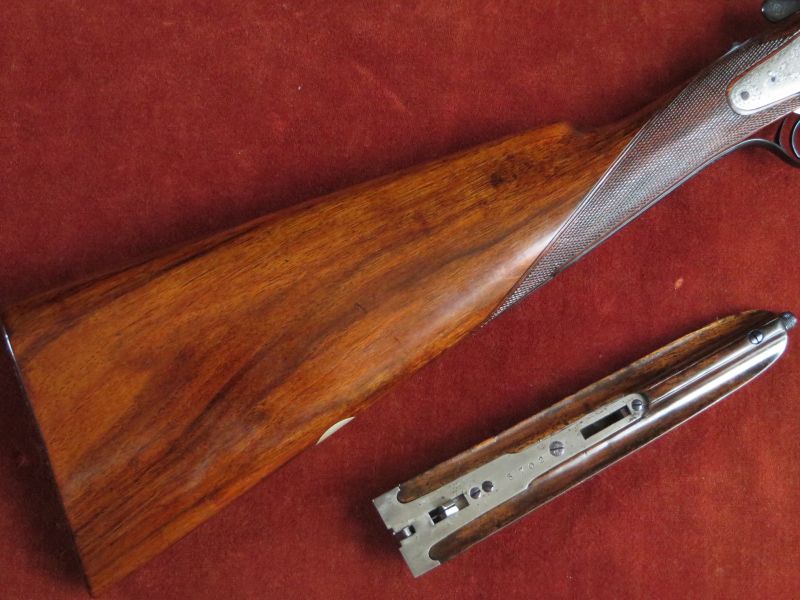

The replacement Straight Hand Stock and original
Splinter Forend are crafted from figured, straight grain walnut.
The stock features a vacant white metal oval and is cast-off for a
right-handed shot. There is a small 'shake' in the butt end of the
stock and it is finished with a cross-cut butt. The forend has some
inlet repairs to its edges and over the ejector box.
The 22 lines per inch chequering is refreshed
to the normal J Blanch design of fully chequered forend with a narrow
unadorned border and a stock pattern that closely follows the outline
of the lock plate.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
15"
|
15 1/8"
|
15 1/8"
|
15 1/2"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 11/16"
|
2 1/8"
|
Cast-off at Comb
|
Cast-off at Heel
|
1/8" (approximate)
|
3/16" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Perkes' cocking rod patent no. 1968 of 1878;
Deeley ejectors patent no. 14526 of 1884;
Perkes' ejector patent no. 10679 of 1886;
Scott's gas check patent no. 617 of 1882;
'Purdey Bolt' patent no. 1104 of 1863;
'Scott Spindle' patent no. 2752 of 1865;
Scott's top extension patent no. 1902 of 1875;
Hollis's forend catch patent no 953 of 1873.
