J S Boreham, Sportsman's Depot, Colchester
20 bore Back action, Sidelock Non Ejector
no. 1048
Date of manufacture: 1878-1896
 |
 |
 |
Click on these images for more detail.
|
Heritage Guns Comment This gun represents a good example of the early hammerless guns that were becoming more accepted in the last quarter of the 19th Century and a rare chance to buy a gun retailed by this little known gunmaker. The sensitive restoration makes it a very pretty and highly 'shootable' gun for either game or clays. WE REGRET THAT THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT US. |

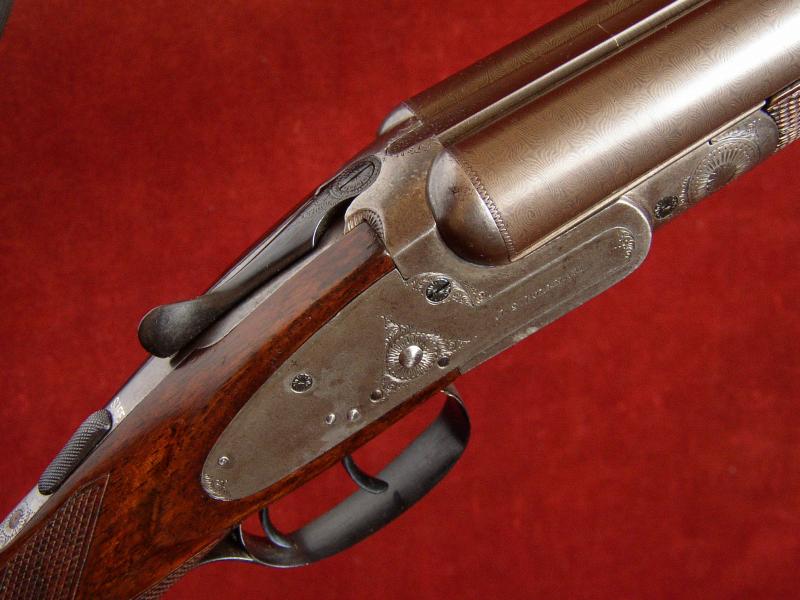

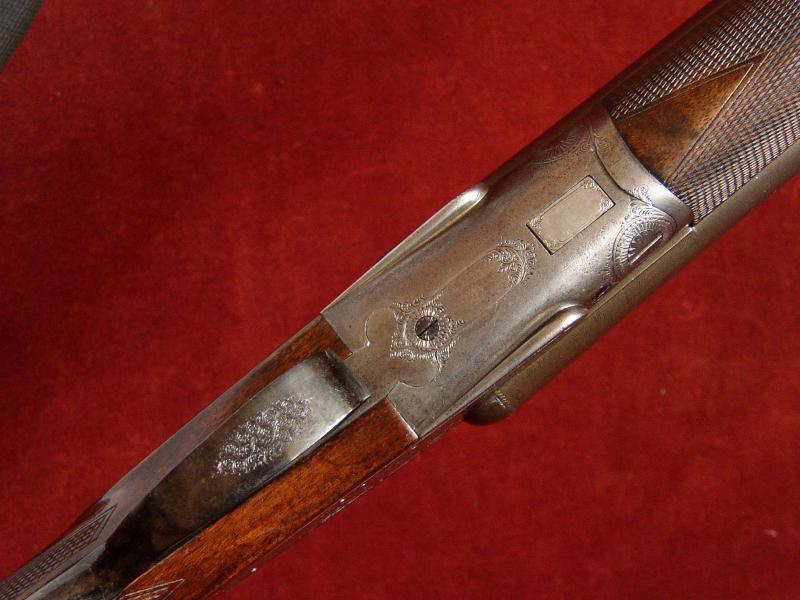

The action is of traditional back
action design and features:
Double triggers bolted by an automatic top tang safety slide,
Back action locks with 'barlock' lockplates,
Top lever opening operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Roger's cocking levers,
Snap-on forend catch.
Gun weight 5lb 2oz Engraving style Border with scroll
details.
Trigger pulls measure approximately: Front trigger 3 ½
lbs Rear trigger 4 ½ lbs.

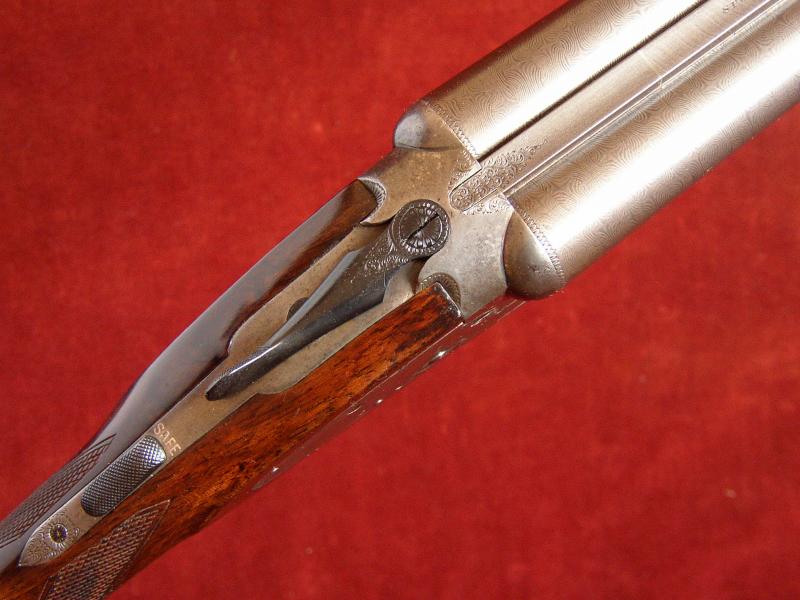

The Damascus barrels are 28" in length, chambered for 2
¾" (70mm) cartridges and are of brazed 'dovetail' lump construction
with soft soldered ribs. Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2006.
Approximate barrel measurements at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
|
| Right Barrel |
15.9mm (0.626")
|
0.623"
|
0.021" Minimum
|
0.011" (1/4)
|
| Left Barrel |
15.9mm (0.626")
|
0.628"
|
0.021" Minimum
|
0.024" (1/2)
|

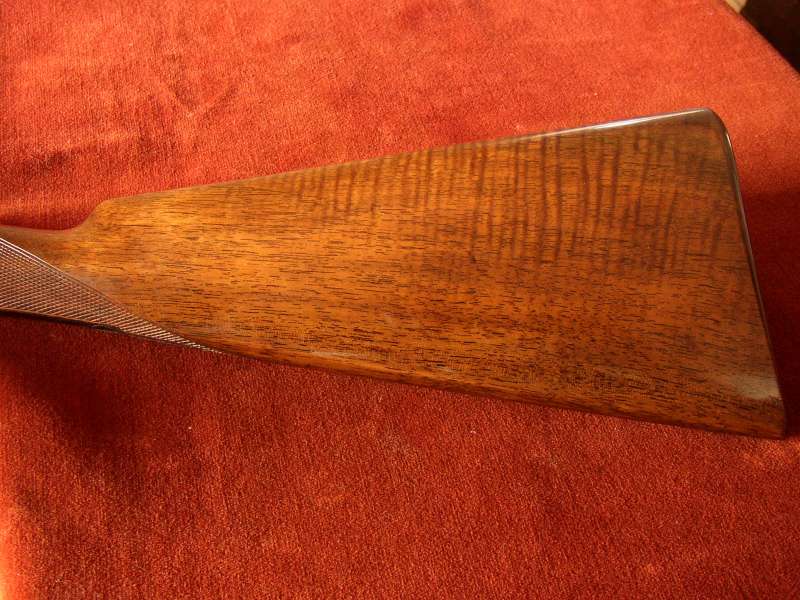

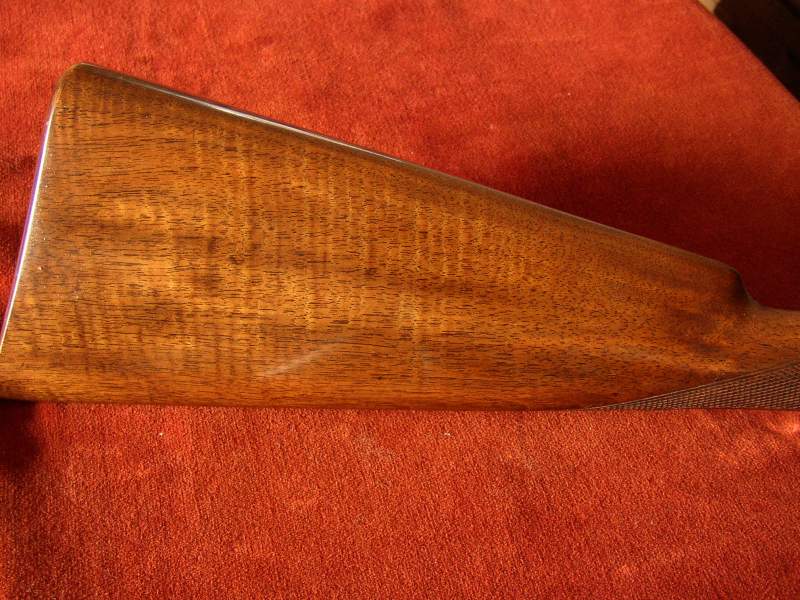

Straight Hand Grip Stock and Splinter Forend are crafted from straight grain honey coloured walnut. The replacement stock has a very slight cast off for a right-handed shot and is finished with a chequered butt.
 |
Lightly figured walnut stock.
|
 |
The 20 lines per inch chequering has been recut to the normal back lock design. The stock is finished with a traditional linseed oil based preparation as used on best guns by one of the top English makers. This finish uses no grain fillers to achieve its deep, smooth lustre, only many hours of alternate build and flatting off of the surface.
Approximate stock measurements at date of publication:
|
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
|
14 3/8"
|
14 5/8"
|
14 1/2"
|
14 7/8"
|
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
|
1 1/2"
|
1 7/8"
|
2 1/2"
|
|
Cast at Comb
|
Cast at Heel
|
|
1/8" (approximate)
|
1/4" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
