James D
Dougall & Sons,
23 Gordon Street, Glasgow, Scotland.
20 bore
Boxlock Non-ejector
no. 4105
Date
of manufacture: 1884-1889
Click on these images for more detail.
Heritage
Guns' Comment
John Dougall established his ‘Fishing & Fowling Tackle’ enterprise
in Glasgow in 1760 and was succeeded by his son James in 1841. In
1864, the aforementioned James and his son, also James, opened
premises in St James’s Street, London and with the success of the
father’s patent for the ‘Lockfast’ action, the firm became very
well-known and commercially successful. Gun no. 4105 is an
outstanding example of what Dougall did best: using his own
designs to produce distinctive guns and finishing them to a very
high standard indeed. The action is similar in design to the
famous Anson & Deeley boxlock, the only significant difference is
that it is cocked by the sidelever rather than the drop of the
barrels. The floral engraving is really quite spectacular and with
its replacement steel barrels and strong stock, it would make an

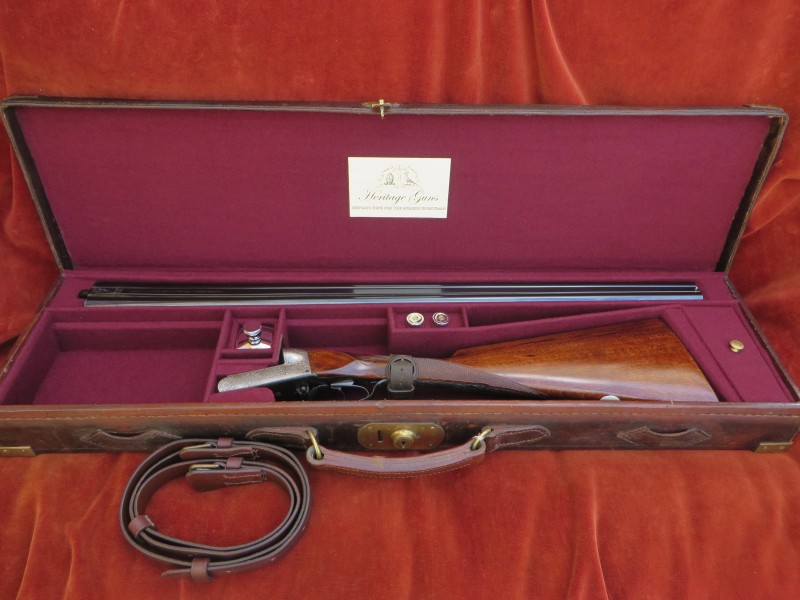

excellent gun for clay target or upland game. Presented in its
leather & brass case, relined with ‘Cherry’ all-wool baize,
with Heritage Guns trade label and some accessories.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

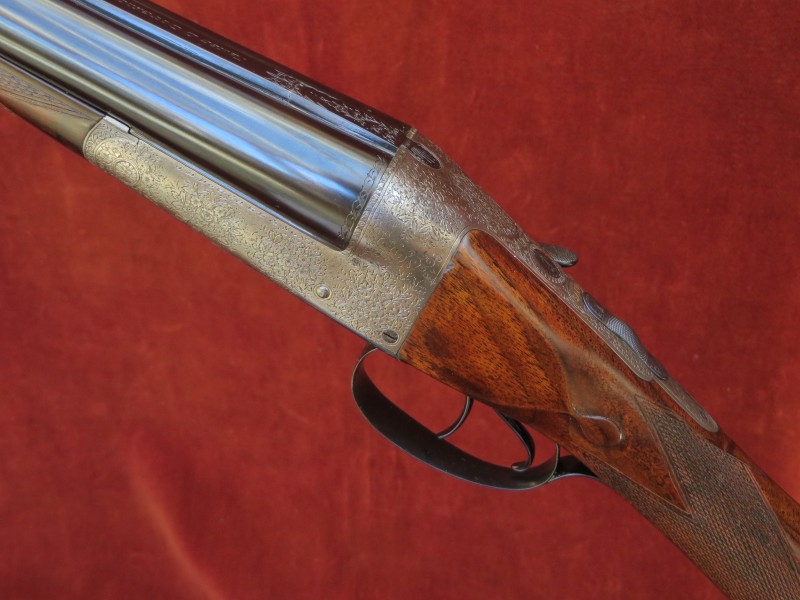

The action
is similar in design to the Anson & Deeley boxlock and features:

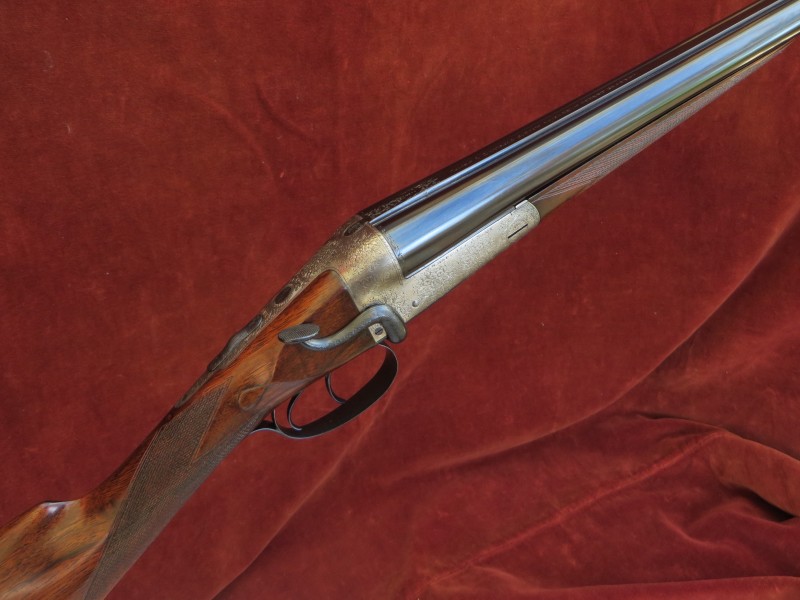

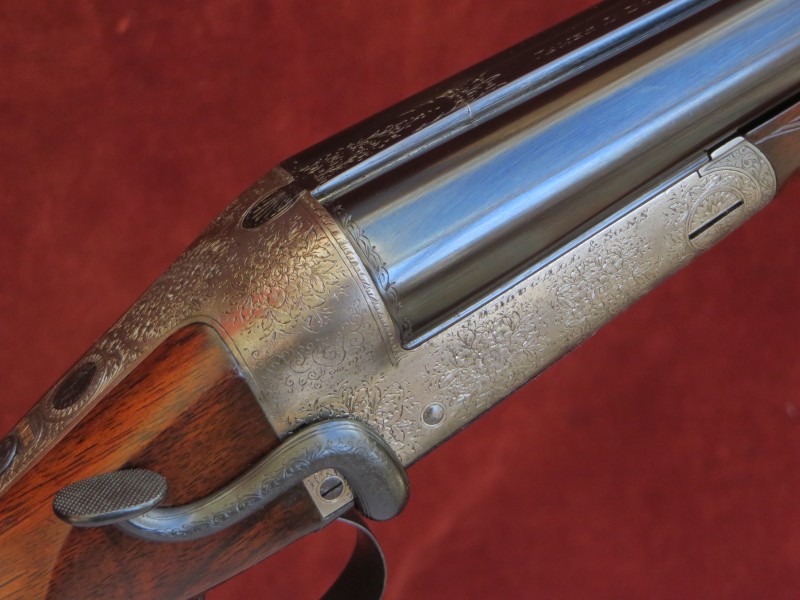

Sidelever operating a Purdey Bolt and cocking the tumblers;
Passive
‘Dolls Head, top-rib extension;
Tumblers linked to mainsprings by
anti-friction swivels;
Double triggers bolted by an automatic top
tang safety slide;
Anson push rod forend catch.
The gun balances just in front of the action knuckle.

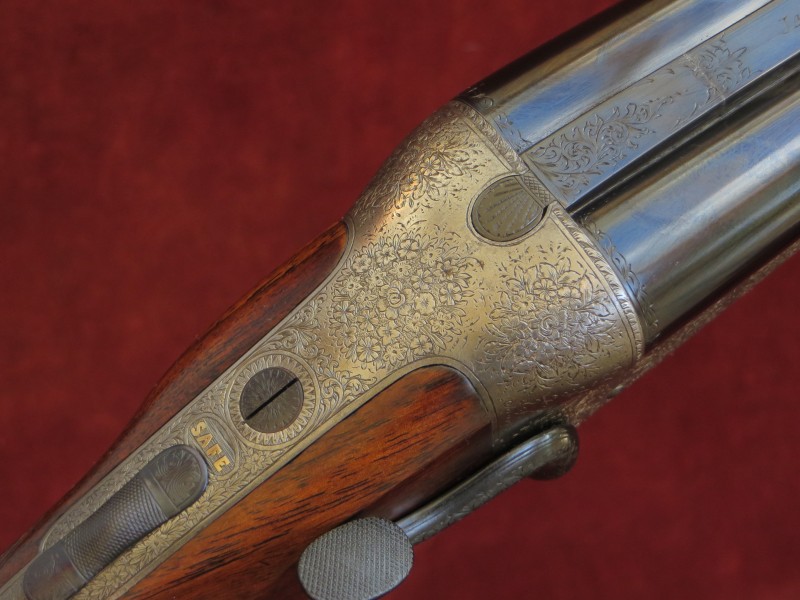

Engraving style Finely
executed Bouquets of flowers with scroll detail.
Action bar signed
‘JD DOUGALL & SONS’. Gold inlayed SAFE.
Action flats stamped
‘DOUGALL’S HIGHEST QUALITY’.
Gun weight 5lb 10oz
Trigger pulls measure approximately: Front trigger 3 ½
lbs Rear trigger 4 ½ lbs
The Replacement Steel barrels (in
1956) are 28" in length, chambered for 2 ¾ ” (70mm) cartridges and are
of brazed 'dovetail' lump construction with soft soldered ribs.

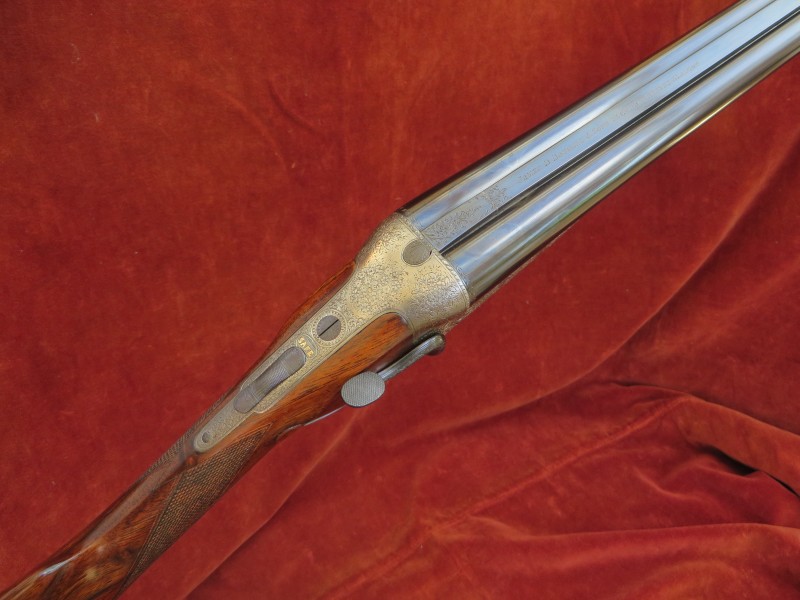

Top rib is of smooth,
broad, flat type; the original damascus ribs were retained when the gun
was rebarrelled. There is a small rosin bleed from top rib near the
joint with the top rib extension piece, resulting is a loss of a small
area of the blacking.
Birmingham reproof for 2 3/4” (70mm)
nitro powder cartridges between in 2022.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size L/R
|
Bore Diameter 9"
from Breech L/R
|
Minimum Wall Thickness L/R
|
Choke Constriction L/R
|
Right Barrel
|
15.6mm (0.614")
|
0.612"
|
0.032"
|
0.008"
(IC)
|
Left Barrel
|
15.6mm (0.614")
|
0.612"
|
0.034"
|
0.012" (M)
|

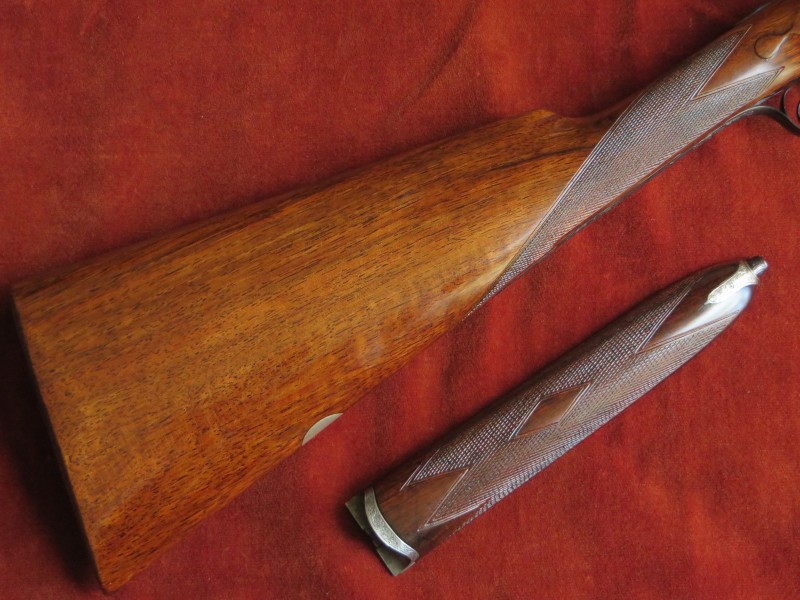

The Replacement Straight Hand Stock and original Splinter Forend
are
crafted from lightly figured, straight grain walnut. The stock is
cast-off for right handed use, features a vacant white metal oval,
well defined drop points and is finished with a chequered butt.
The forend features a finely engraved steel forend
tip and Anson pushrod.
|
Lightly Figured, Straight
Grain Walnut
|
|
The 24
lines per inch chequering
is
freshened to its original pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 5/8 "
|
14 11/16"
|
14 11/16"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 11/16"
|
2 1/8"
|
Cast-off at Comb
|
Cast-off at Heel
|
Negligible
|
1/4" (approx.)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Purdey Bolt' patent no. 1104 of 1863;
Anson’s forend fastener patent no. 3791 of 1872.
