J
Graham & Co Ltd, 27 Union Street, Inverness
12 bore Box Lock Non-Ejector
no. 19331
Date of manufacture: 1932-3
Click on these images for more detail.
Heritage
Guns Comment
This Scottish gun is a good example of the Anson
& Deeley boxlock that had become such a hugely successful
design by the last decade of the 19th Century. The gun has been
finished with light weight and practicality in mind, most likely
intended for walked up grouse and snipe shooting in the Highlands
and Islands.
This light weight and simplicity makes the gun particularly suitable
for upland game shooting where considerable distances are contemplated
rather than large numbers of shots and heavy loads.
The gun is outwardly unpretentious but internally is a tribute
to the finishing skills of this Scottish gunmaker who was established
since 1857. It also retains its original pins throughout which
confirms that it has not been the victim of untrained hands during
its 70+ years of use. A further point of interest is the conical
shape of the breech fences, a rarely used method of removing unnecessary
weight from the action.
WE REGRET THAT THIS GUN IS NOW
SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT
US.
|

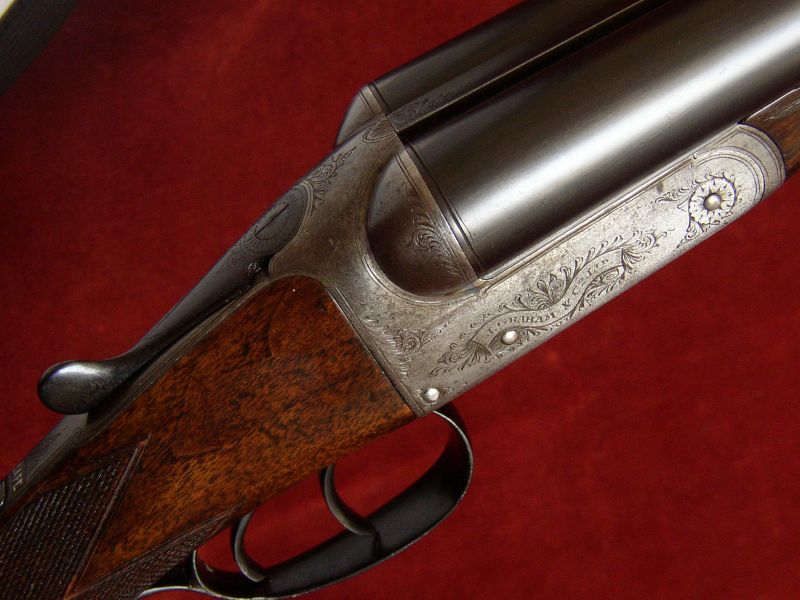

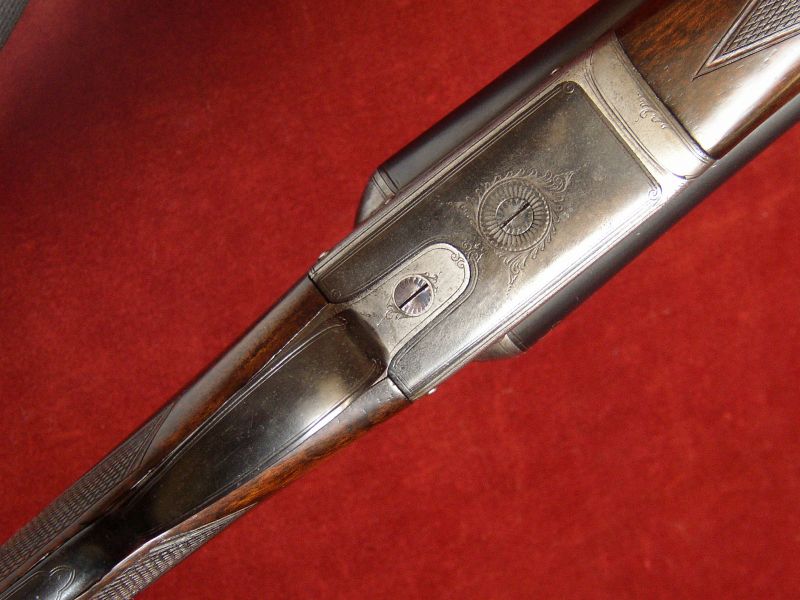

The Action
is of Anson & Deeley design and features:

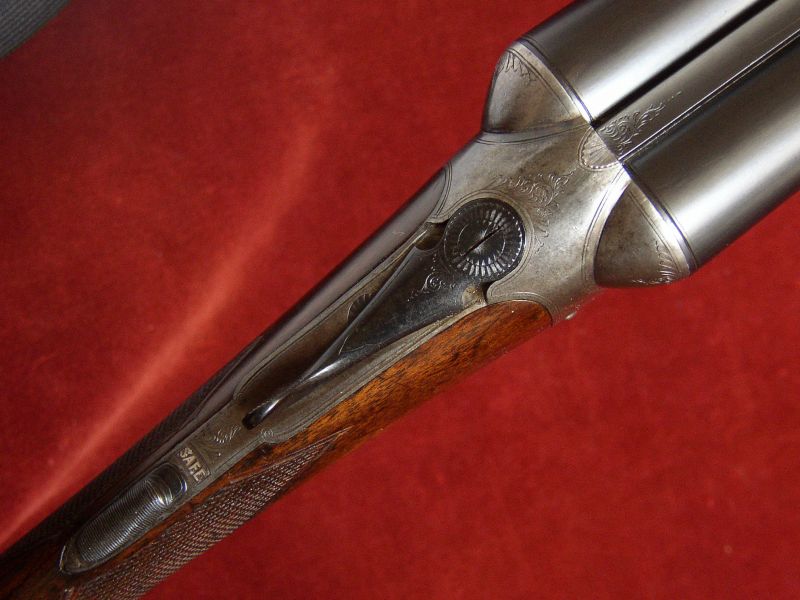

Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt' by way of a 'Greener' lever.
Hackett's Snap-on forend fastener.
Gun Weight 6lb 2oz
Engraving Style Border & Scroll.
As is our custom, Trigger Pulls have been adjusted for 'feel'
rather that to any particular pull weight but for the record they
measure approximately: Front trigger 4lbs Rear trigger 4lbs
The original Steel
Barrels are 28" in length, chambered for 2 1/2" (65mm)
cartridges and are of brazed 'dovetail' lump construction with soft
soldered ribs. Top rib is of the smooth, concave, game type. The bores
are clean and free of any pitting other than a small area of very faint
surface marks in the right tube.
Original Birmingham proof for 2 1/2" nitro powder cartridges.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
12 (0.729")
|
0.731"
|
0.024" Minimum
|
0.005" (Imp Cyl)
|
Left Barrel |
12 (0.729")
|
0.730"
|
0.026" Minimum
|
0.010" (1/4)
|

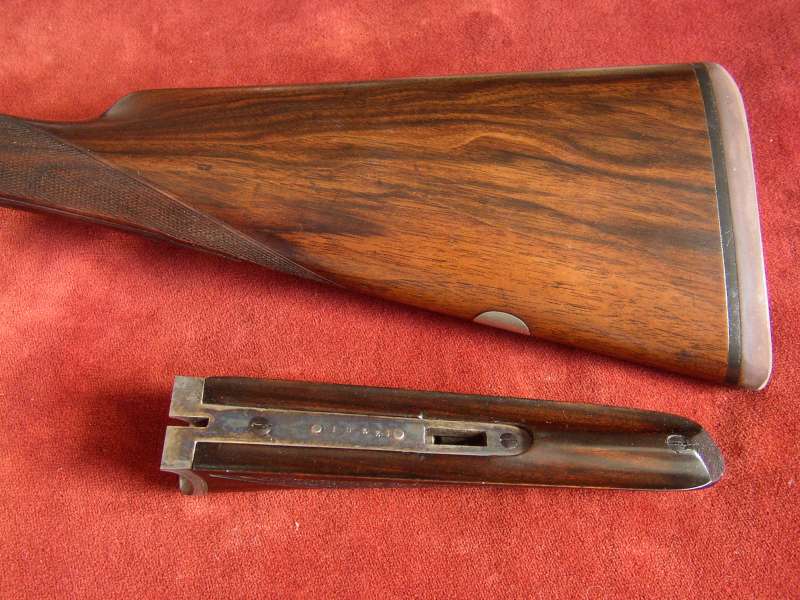

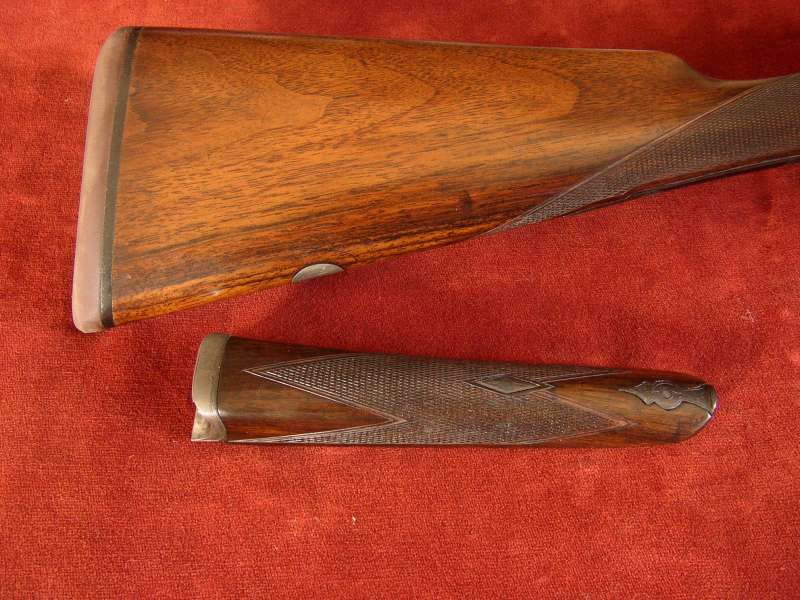

Straight Hand
Stock and Splinter Forend
are crafted from figured walnut. The stock is slightly cast off for
a right-handed shot and is finished with a shaped brown rubber recoil
pad.
|
Well figured walnut stock
& forend.
|
|
The 22 lines per inch
chequering freshened to the normal
boxlock design.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers.
Approximate stock
measurements (including pad) at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/4"
|
14 1/2"
|
14 1/2"
|
14 3/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 7/16"
|
1 11/16"
|
2 1/8"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Anson & Deeley's boxlock patent no. 1756 of
1875,
'Purdey Bolt' patent no. 1104 of 1863,
Greener's patent no. 3090 of 1874,
Hackett's forend fastener patent no. 964 of 1878.
