Stephen Grant, 67A St James's
Street, London
12 bore Back Action Hammergun
No. 4419 No.1 of Pair
Date of manufacture: 1878
Click on these images for more detail.
Heritage
Guns' Comment
This is a superb example of a sidelever hammergun from this highly
respected gunmaker, a style and design that became synonymous with
Stephen Grant. Built as no. 1 of a pair, it is in really lovely
condition with only very slight loss of definition in the
engraving under the bar. The bolting is of Edwin Hodges’
design, patented in 1871, and provides three bites for the
Purdey-like bolt to engage with: one in the rear lump and a
further projection on either side forming the other two. It is
thought to have been simply an attempt to evade the Purdey Bolt
patent but it does provide a very firm and safe lock-up. We are
not sure if this is the original stock or a vintage replacement by
a highly skilled stocker but either way, it is a stunning piece of
walnut, complete with a short walnut extension and original heel &
toe plates. One of the most delightful aspect of this gun are its
damascus barrels which have survived the effects of black powder
and corrosive primers to be in remarkably good shape today. And
they have a little choke, introduced over the years, which make
the gun that more useable with modern ammunition. The 30" barrels
have been reproofed for 2 ¾” nitro cartridges and this all adds up
to a strong gun that is a joy to shoot and should give many years
of service on game or clays with normal maintenance.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

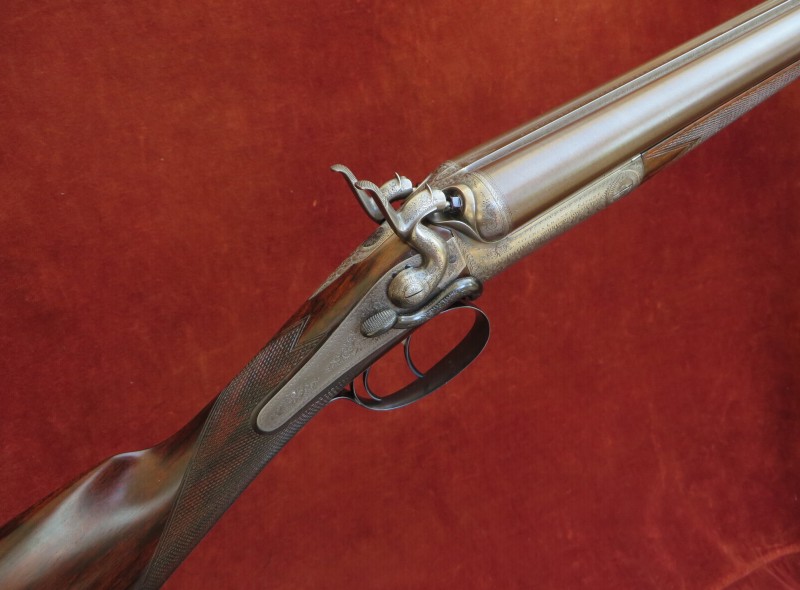

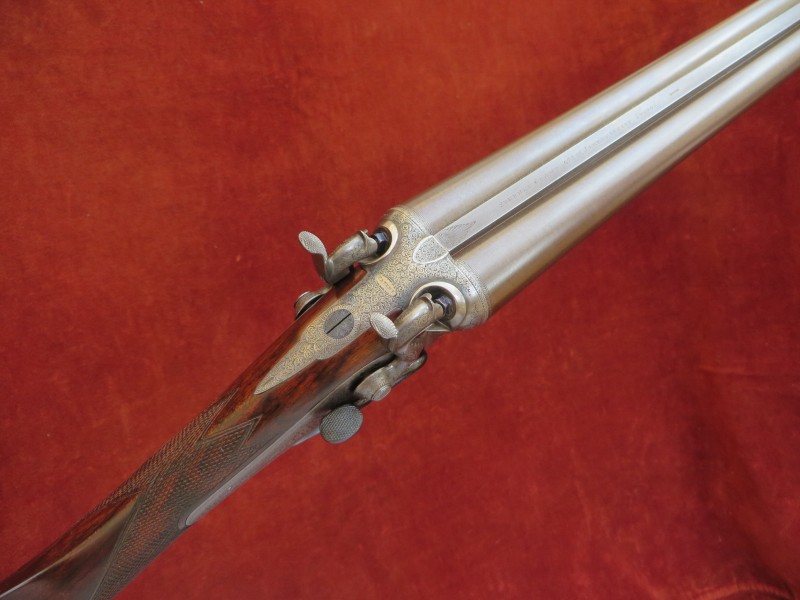

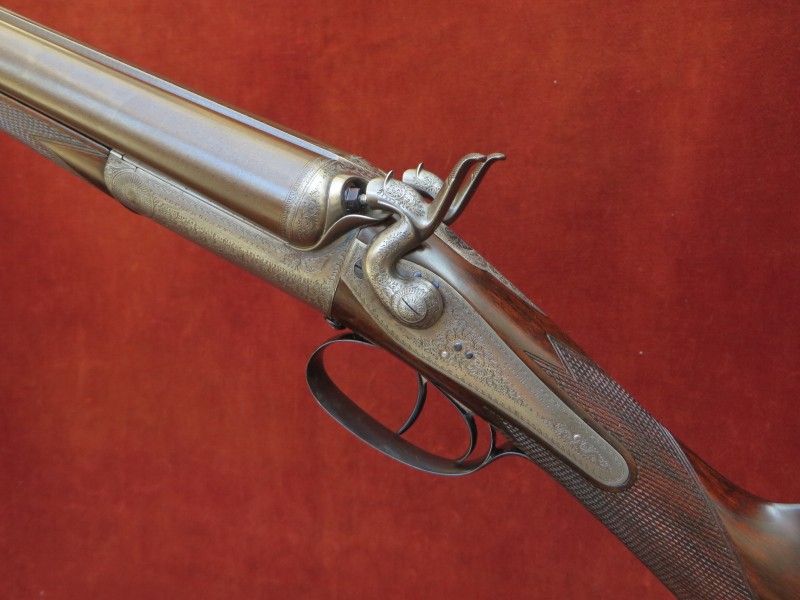

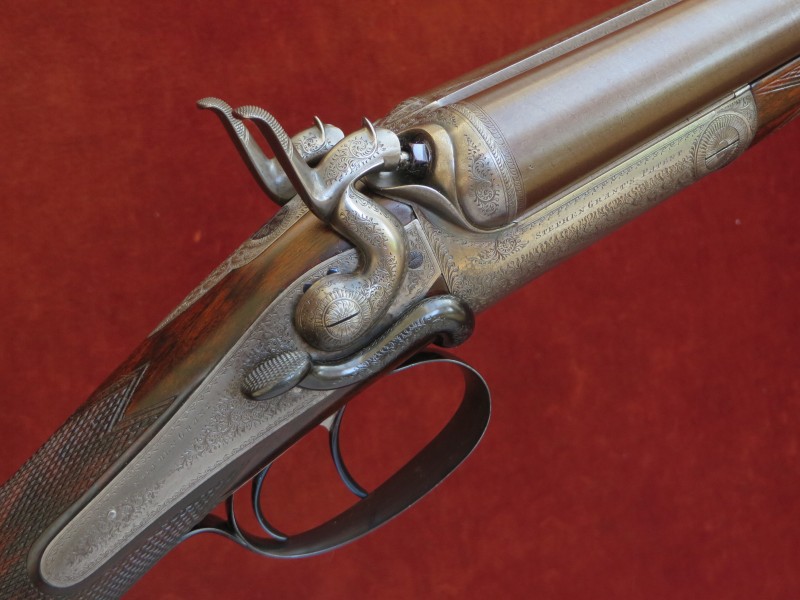

The Action
is of traditional back action sidelock design and features:
Finely
chiselled percussion fences;
High level ‘Hare’s Ears’ hammers;
Best Foliate Scroll engraving;
Sidelever operating a 3 bite bolt;
Double triggers;

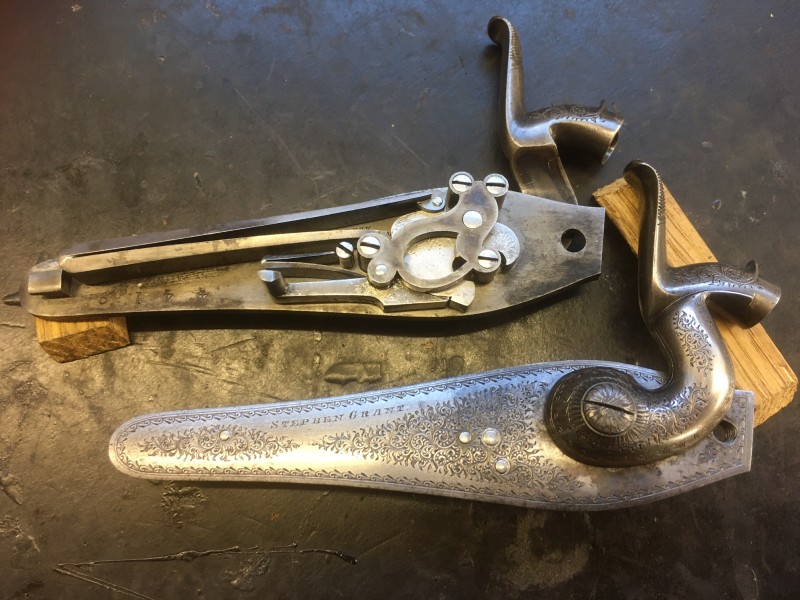

Stanton rebounding back
action locks;
Anson, pushrod snap forend fastener.
The gun
balances just behind the hinge pin.
Gun Weight 6lb 12oz.
Engraving Style Best foliate scroll. No. ‘1’ is
engraved on top rib, trigger guard and heel plate.

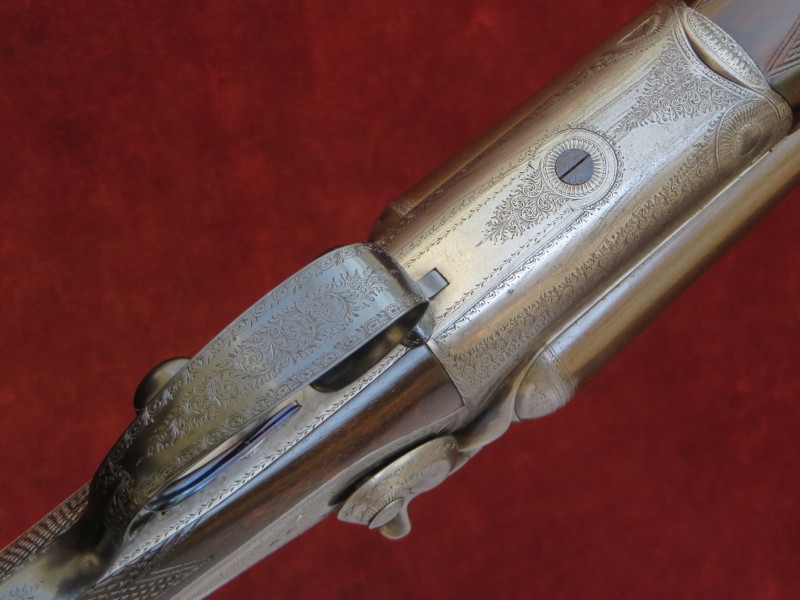

Action bar
engraved ‘STEPHEN GRANT’S PATENT’. Top of action engraved ‘PATENT’ in an
oval. Action flats stamped ‘GRANT & HODGES PATENT’ and the use number
439.
Breech face stamped with
E C Hodges’ trade mark.
Barrels marked ‘ECH’.
Trigger Pulls
measure approximately: Front trigger 3lbs Rear trigger 4lbs
The Rebrowned Damascus Steel Barrels are 30" in length, chambered
for 2 3/4" (70mm) cartridges and are of brazed through-lump construction
with soft soldered ribs.
Top
Rib is of the smooth, concave game type.
Birmingham Reproof
for 70mm nitro powder cartridges in 2020.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.7mm (0.736")
|
0.739"
|
0.024"
|
0.005" (Skeet)
Recessed
|
Left Barrel |
18.7mm (0.736")
|
0.736"
|
0.023"
|
0.005" (Skeet)
Recessed
|

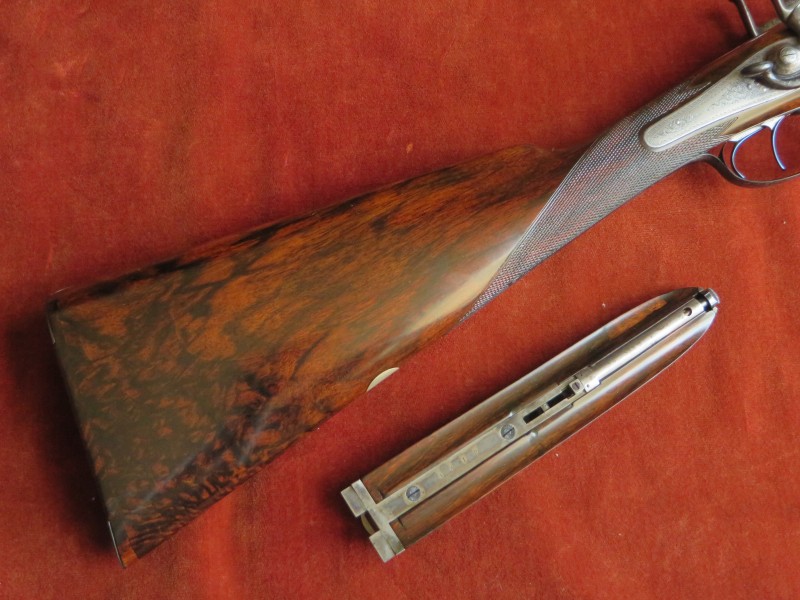

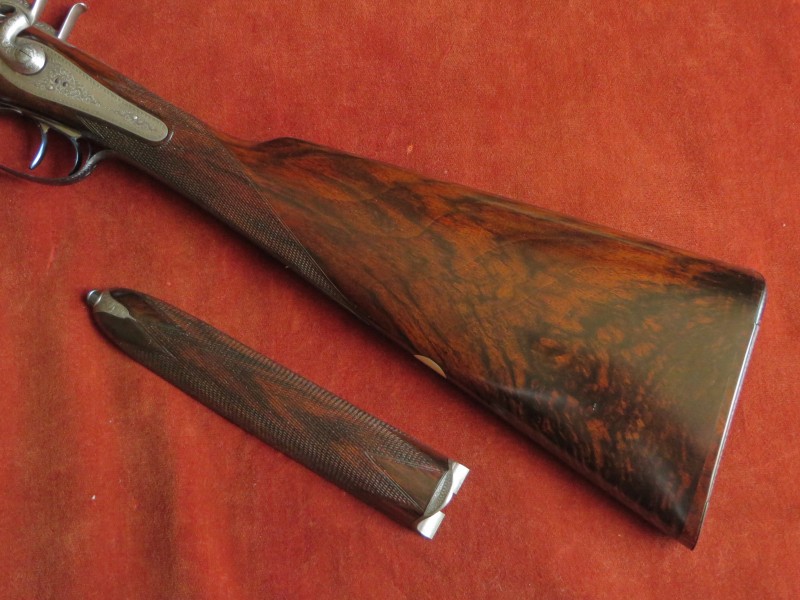

Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut. The stock is lightly
cast-off for a right-handed shot and features a vacant white metal
oval, a ¼ ” wood extension and original heel & toe plates, secured
with engraved screws.
The forend has a finely
engraved steel tip and two inlet repairs to its edge.
The approximately 20 lines per inch chequering is freshened
to normal backaction sidelock pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 5/8"
|
14 3/4"
|
14 3/4"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 7/16"
|
1 5/8"
|
2 3/16"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8" approx.
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's rebounding lock patent no. 367 of 1867;
Hodges’ bolting
patent no. 251 of 1871.
