Holland & Holland,
98 New Bond Street, London
12 bore Backaction hammer gun
no. 8698
Date of manufacture: 1885
Click on these images for more detail.
Heritage
Guns' Comment
This gun is an extraordinarily
fine example of a sporting hammergun from this illustrious gunmaker.
There is a substantial amount of antique patina on the locks and
action and this coupled with our sensitive restoration makes it
a very pretty and highly 'shootable' gun. Ordered by an E Prince
Esq. at the height of the centrefire hammergun's popularity, it
is a very highly specified gun, featuring Brazier locks and a
most unusual extended top strap, most usually seen on double rifles.
Stock dimensions closely match the 'maker's original specification
and with good barrel measurements and recent nitro proof, it is
a very rare opportunity to buy such a fine specimen.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

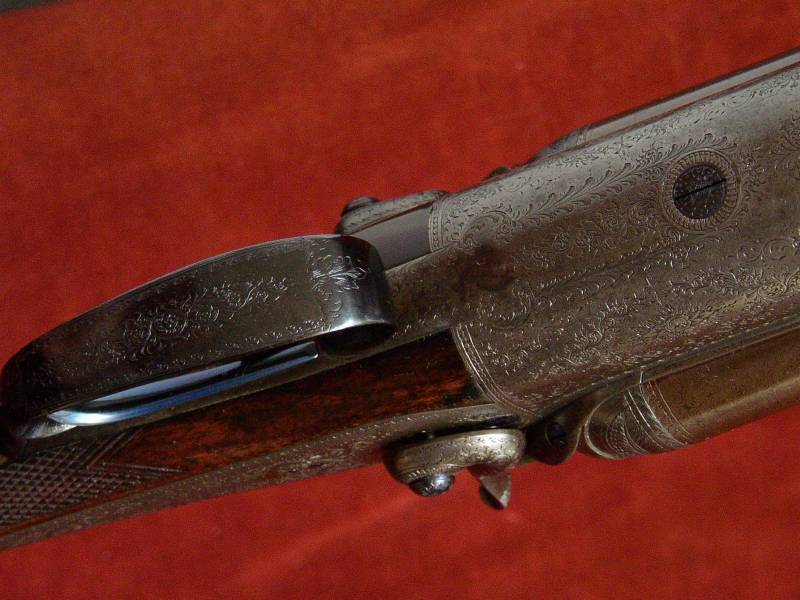

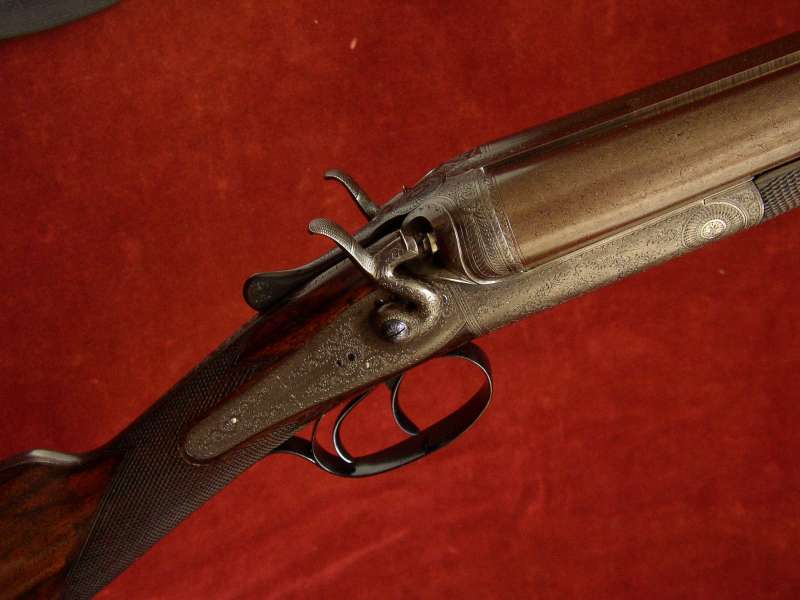

The action is of traditional
design and features:
Double triggers,

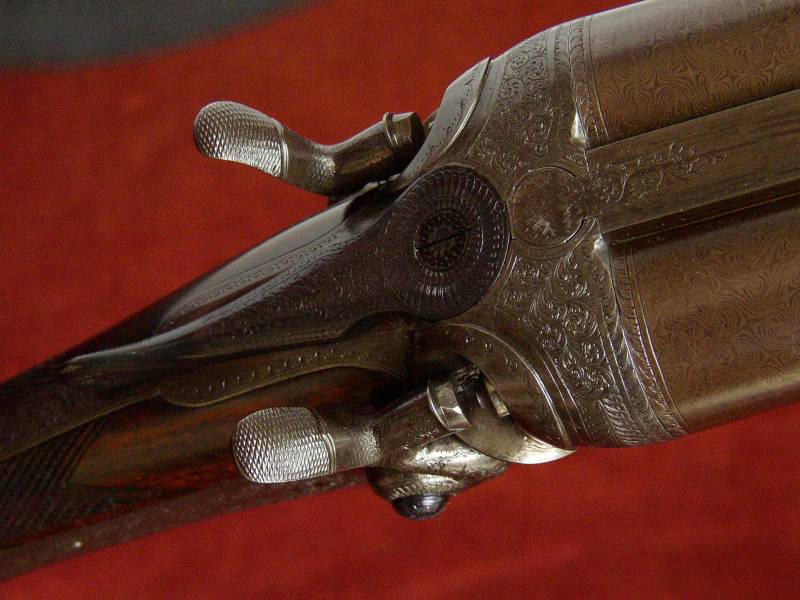

Back action Brazier locks with low, rebounding hammers and broad strikers,
Percussion fences.
Top lever opening, operating a 'Purdey Bolt' via a 'Scott Spindle',
Three point bolting including 'doll's head' top extension,
Deeley forend catch, Extended top strap, Engraved metal forend tip.
Gun weight 6lb 12oz
Engraving style Best fine Bouquet & Scroll, Stylized Fern
Frond Fences.
Trigger pulls measure approximately: Front trigger 3 1/2lbs Rear
trigger 4 lbs
The Damascus barrels are 28" in length, chambered for 2
½ " (65mm) cartridges and are of brazed 'dovetail' lump
construction with soft soldered ribs. Top rib is of the smooth,
concave, game type. London reproof for 65mm nitro powder cartridges
in 2005.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.7mm (0.736")
|
0.735"
|
0.025"+
|
0.002" (Cyl)
|
Left Barrel |
18.7mm (0.736")
|
0.737"
|
0.025"
|
0.020" (1/2)
|

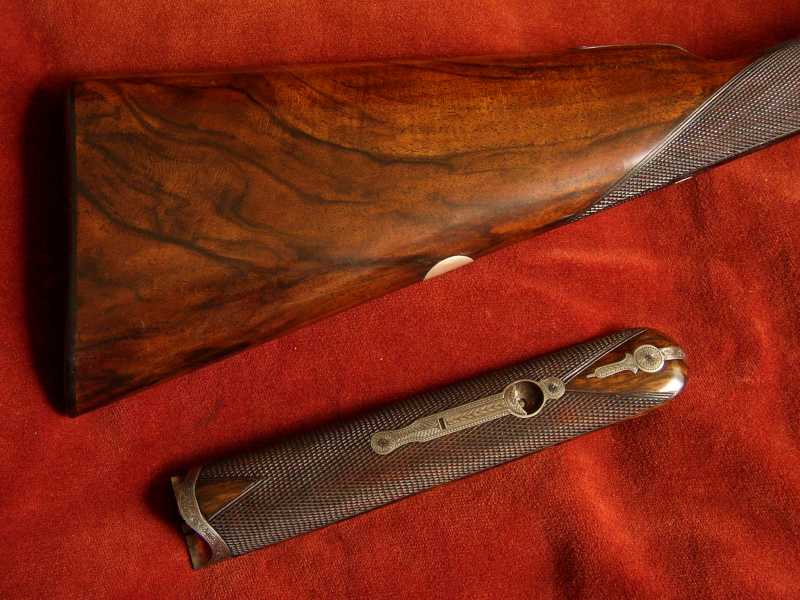

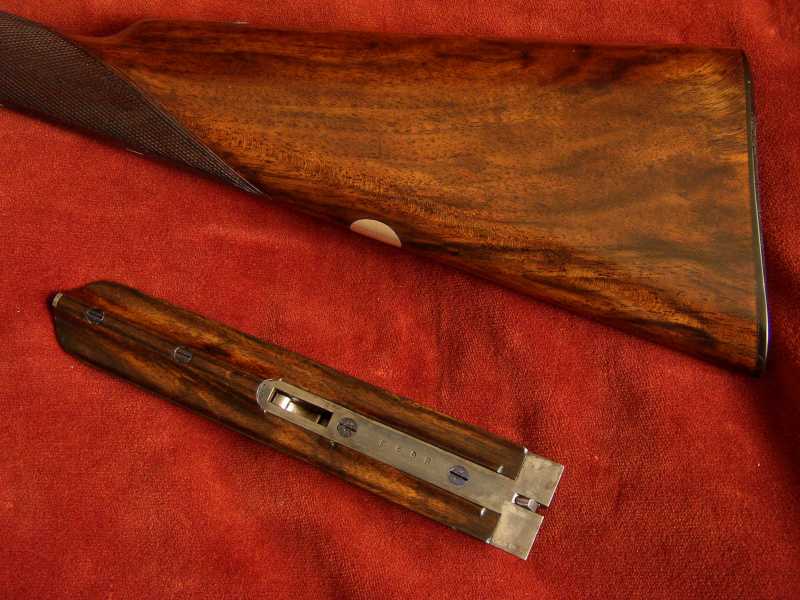

Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut. Both the forend and stock are
considered to be the original wood. The stock is cast off for a right-handed
shot.
The approximately 20 lines per inch chequering
has been cut to a normal backlock design. The stock is finished with
a traditional linseed oil based preparation as used on best guns by
one of the top English makers. This finish uses no grain fillers to
achieve its deep, smooth lustre, only many hours of alternate build
and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/8"
|
14 1/4"
|
14 3/8"
|
14 3/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 13/16"
|
2
3/16"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
3/16" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's rebounding lock patent no. 367 of 1867,
'Purdey's Bolt' patent no. 1104 of 1863,
Deeley's forend fastener patent no. 1422 of 1873,
'Scott Spindle' patent no. 2752 of 1865,
Scott's top extension patent no. 1902 of 1875.
