Holland
& Holland, 98 New Bond Street, London
12 bore 'Royal’ Bar Action,
Sidelock Ejector
No. 12817
Date of manufacture: 1890
Click on these images for more detail.
Heritage
Guns' Comment
Holland & Holland records show that this gun was finished in July,
1890 for ‘Drucker’ as no. 2 of a pair but there are virtually no
further details of its specification, only a note on gun no.
12816’s record that its barrels were shortened to 29” in December
1901. This begs the question of whether the pair had been split by
then and the second name on 12816’s record of ‘Jung’ (?) was the
new owner. The lack of any original details does suggest that
these guns may have been built for stock and only finished off
when purchased. Regardless, the original damascus barrels of
12817 have survived the intervening years brilliantly and,
although we can’t be certain, our guess is that the chokes were
originally something like IC & 1/2, or in US parlance Skeet & Mod.
There are traces of original hardening colour on lockplates and
protected parts of the action and the engraving is of much better
quality that many examples we have seen. The boldly figured stock
& forend are thought to be original, are in fine condition and the
gun balances almost exactly on the knuckle. With its excellent
weight and balance, interceptor sears, fine stock and barrel
dimensions, this gun would make a superb target or game gun for

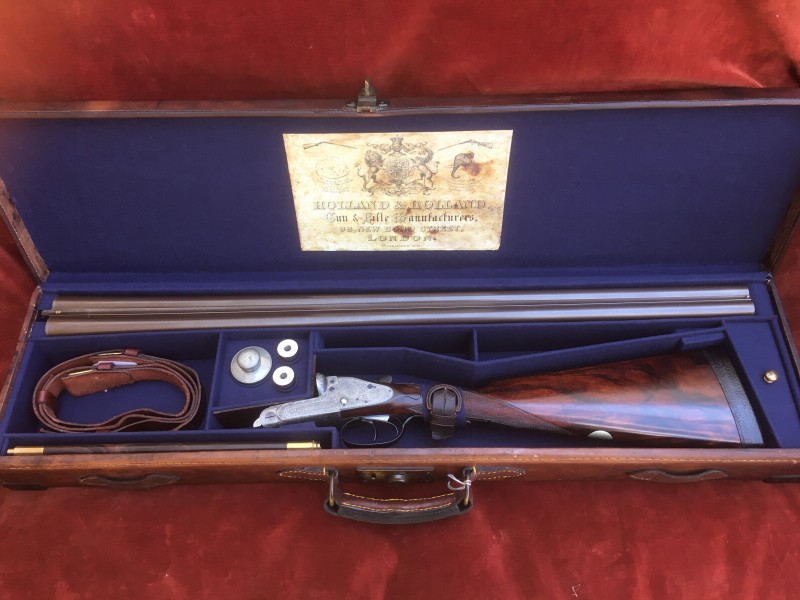

the discerning shooter. Presented in a contemporary leather &
brass case, relined with dark blue baize, equipped with some
accessories and fitted with a reproduction label.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

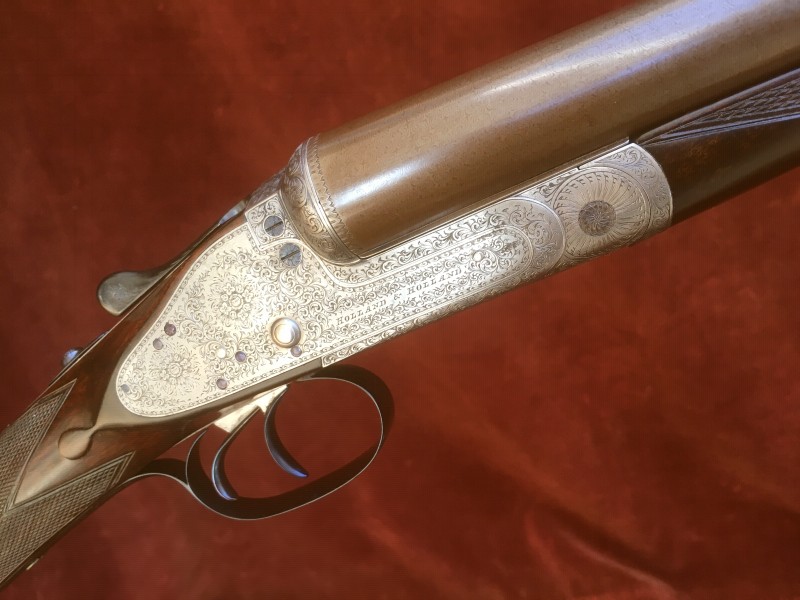

The action
is of combined Holland & Robertson design and features:
Rounded
action bar;

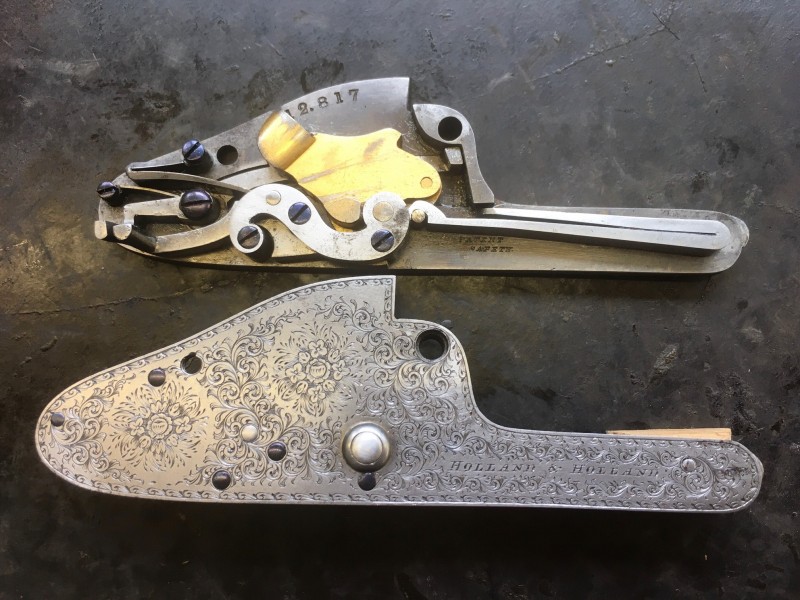

Baraction, 'Dip Edge', 9 pin locks with bolstered
tumbler pivots and gold washed tumblers;
‘Block Patent Safety'
interceptor sears;
Double triggers bolted by an automatic top tang
safety slide;
Breech face 'Patent Gas Check';
Top lever
operating a 'Purdey Bolt' by way of a 'Scott Spindle';
Top rib
extension providing a 3rd bite;
Holland & Robertson's patent
ejector
and Anson's push rod forend catch.
Gun weight
6lb 9oz.

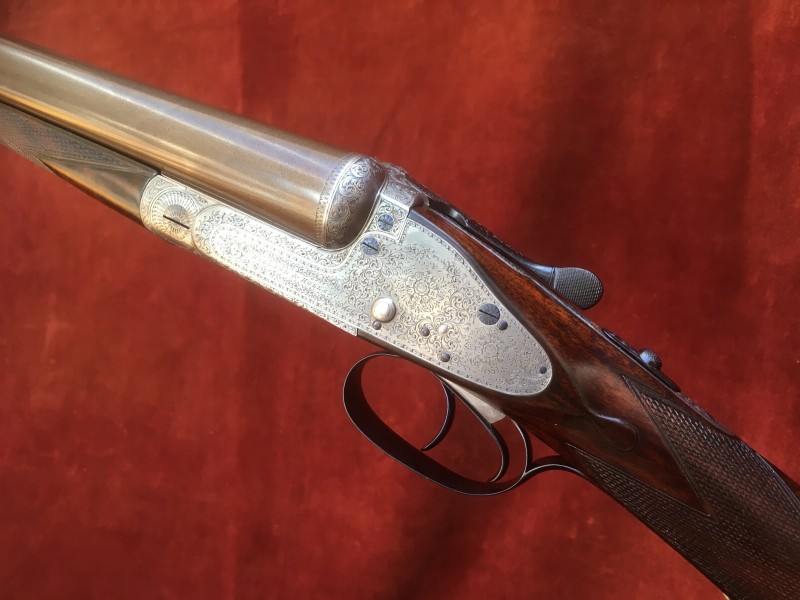

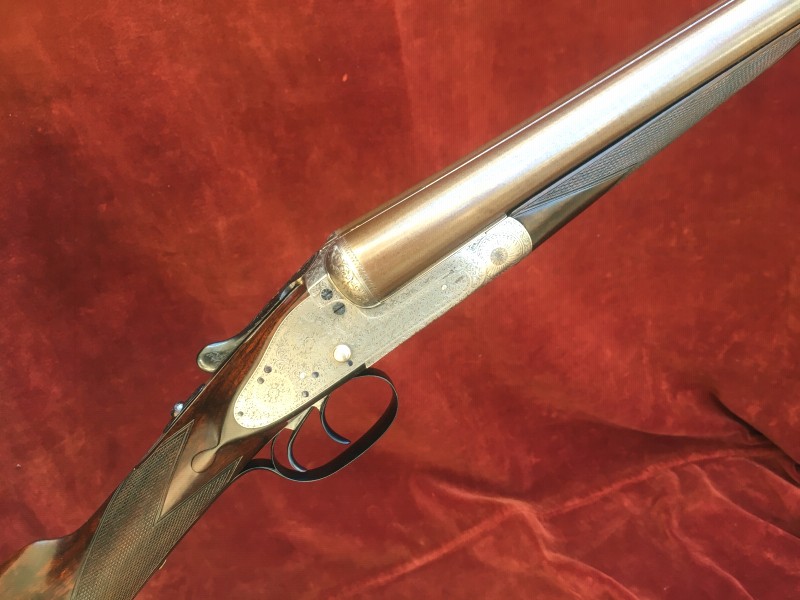

Engraving style Best Bold Bouquet & Scroll.

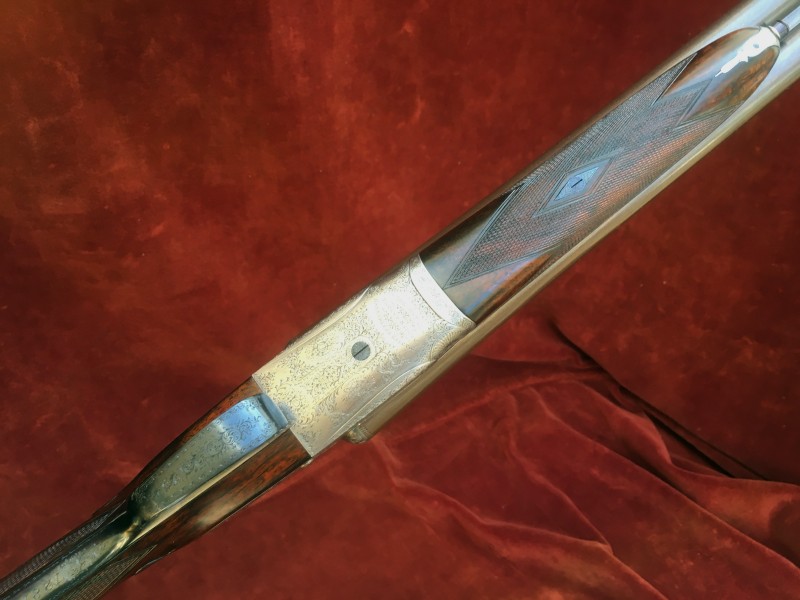

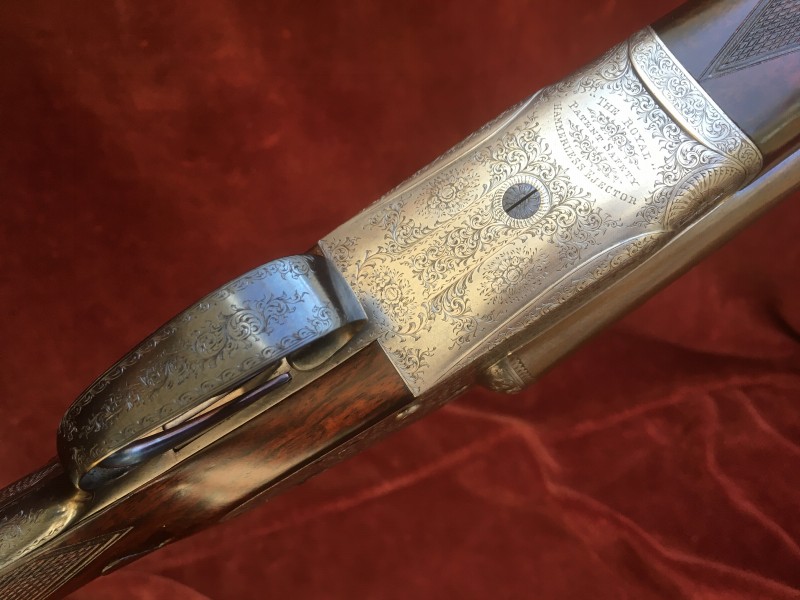

Under-bar engraved ‘“THE ROYAL” PATENT SAFETY HAMMERLESS EJECTOR’.

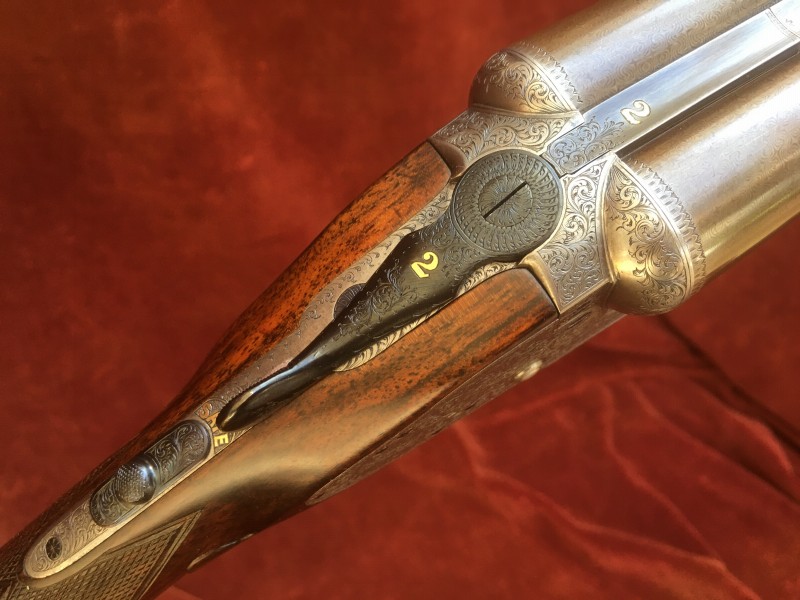

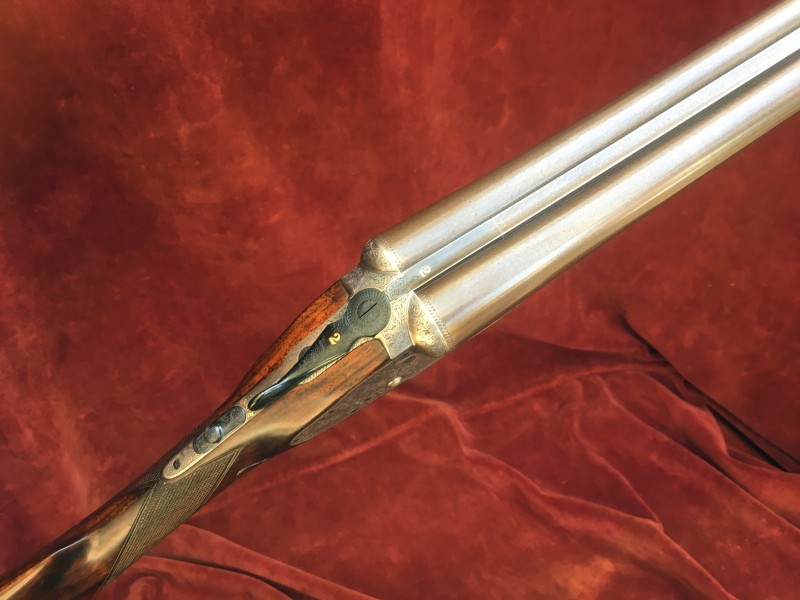

F’end iron engraved and top lever and top rib gold inlaid ‘2’. Gold
inlaid ‘SAFE’.
Beaded fences. Breech face stamped ‘PAT.GAS CHECK’
and use number 4112.
Trigger pulls measure
approximately: Front trigger 3 ½ lbs Rear trigger 4 ¼ lbs.
The rebrowned damascus steel barrels are 30" in length,
chambered for 2 ½ " (65mm) cartridges and are of dovetail lump
construction with soft soldered ribs.
Top rib is of smooth, concave game type.
London reproof for
65mm nitro powder cartridges between 1925-54.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
12 (0.729")
|
0.734"
|
0.024"
|
0.013" (IC)
|
Left Barrel |
12 (0.729")
|
0.734"
|
0.021"
|
0.024" (Mod)
|

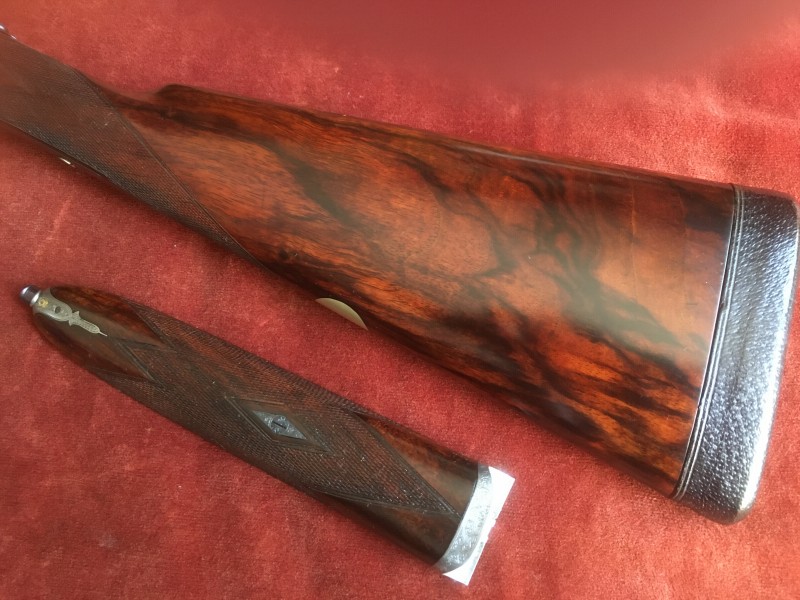

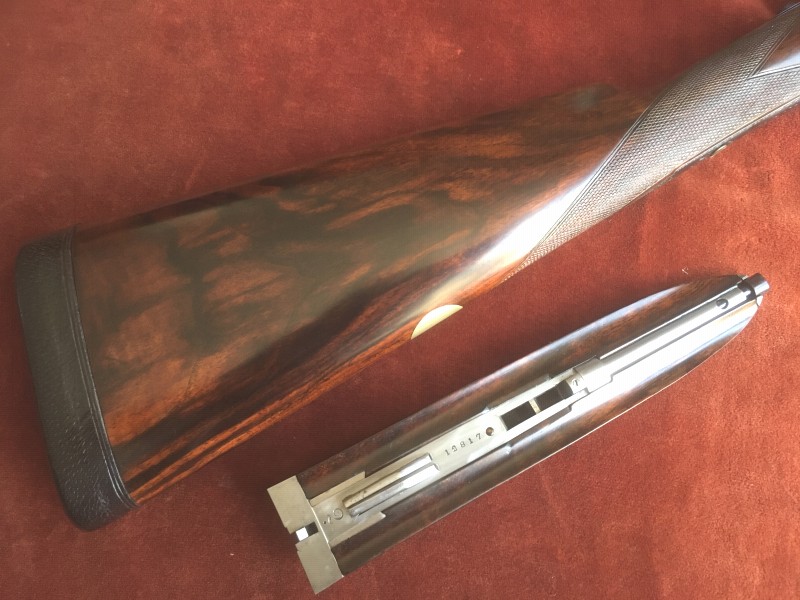

Original Straight Hand Stock and Splinter Forend
are crafted from boldly figured walnut.
The stock is lightly
cast-off for a right-handed shot, features a vacant yellow metal oval,
well defined drop points and is finished with a vintage 1” leather
covered recoil pad.
The forend is fitted with a finely engraved
steel forend tip and diamond and has 2 inlet repairs to its edge.
|
Boldly Figured Walnut |
|
The 24 lines per inch chequering has been freshened
to normal sidelock pattern.
The stock is finished with a
traditional linseed oil based preparation as used on best guns by one
of the top English makers. This finish uses no grain fillers to
achieve its deep, smooth lustre, only many hours of alternate build
and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 3/4"
|
15"
|
15"
|
15 1/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 13/16"
|
2 3/8"
|
Cast at Comb
|
Cast at Heel
|
1/8" approx.
|
3/16" approx.
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Scott's gas check patent no. 617 of 1882;
Needham & Hinton
interceptor sears patent no. 706 of 1879;
Holland & Robertson's
ejector patent no. 11623 of 1887;
'Purdey Bolt' patent no. 1104
of 1863;
'Scott Spindle' patent no. 2752 of 1865;
Scott's
top extension patent no. 1902 of 1875;
Anson’s forend fastener
patent no. 3791 of 1872.
