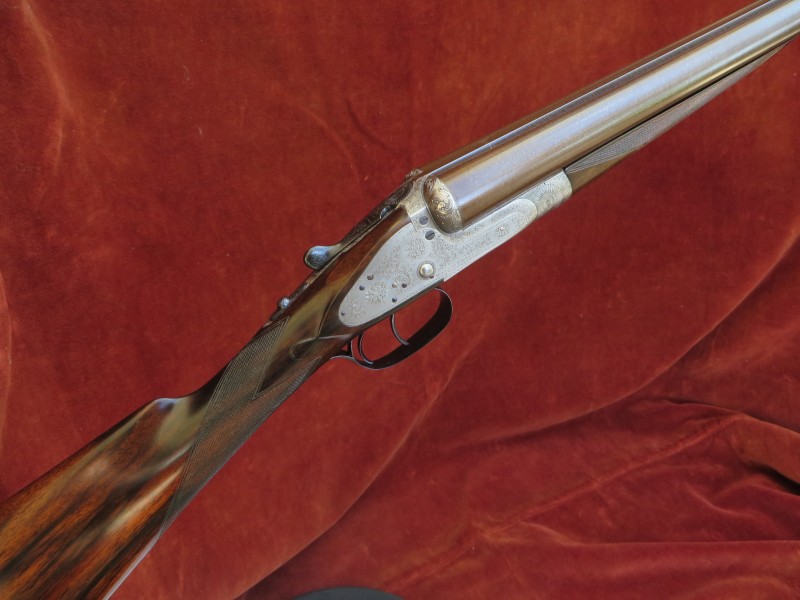

Holland & Holland, 98 New Bond Street, London
12 bore 'Royal’ Bar
Action, Sidelock Ejector
No. 14246
Date of manufacture: 1891-92
Click on these images for more detail.
Heritage
Guns' Comment
The page from the Holland & Holland records that cover this gun’s
number is sadly missing but we can deduce from other close records
that it was completed in either 1891 or 1892. What is certain is
that it is a very lovely example of Holland & Holland's 'flag
ship' gun. The boldly figured replacement stock is thought to
be quite recent but we have no indication of just when it was
done, nor by whom. Interestingly, it is slightly swept at the face
which is a common feature of original H&H stocking and, given that
the stocking is the work of a very skilled craftsman, it might
lead one to assume that the work was done by a stocker with
considerable experience of H&H stocks, maybe even an ex-H&H
worker. The second set
of steel barrels were fitted
in 1988 by the highly respected East Anglian gunmaker, John
Wilson. Unusually, the original 30” damascus barrels have been
retained. The gun balances just in front of the knuckle with the
damascus barrels fitted, 3/8” in front with the steel. With
its excellent weight and balance, interceptor sears, fine stock
and barrel dimensions, this gun would make a superb target or game

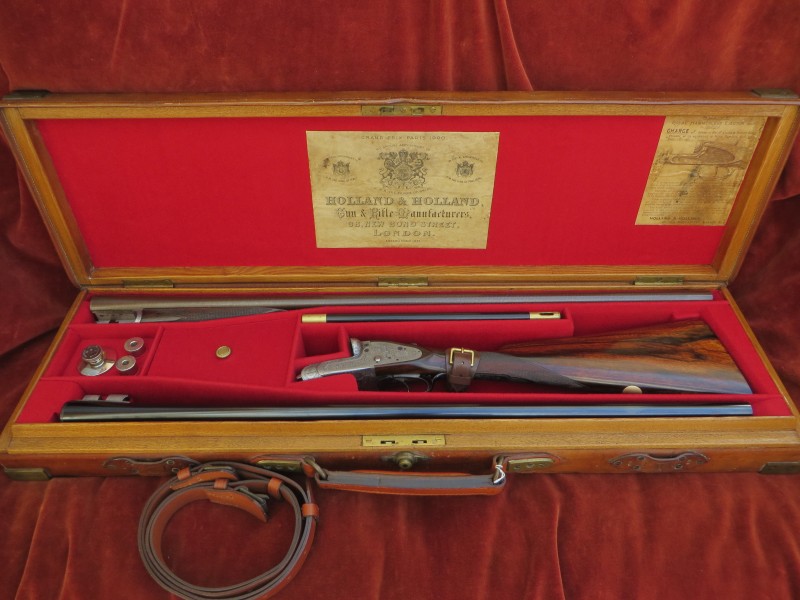

gun for the discerning shooter. Presented in an Oak & Leather
case, relined with Windsor Red all-wool baize to accommodate both
barrel sets, equipped with some accessories and fitted with the
Maker’s label and charge card (a later issue).
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

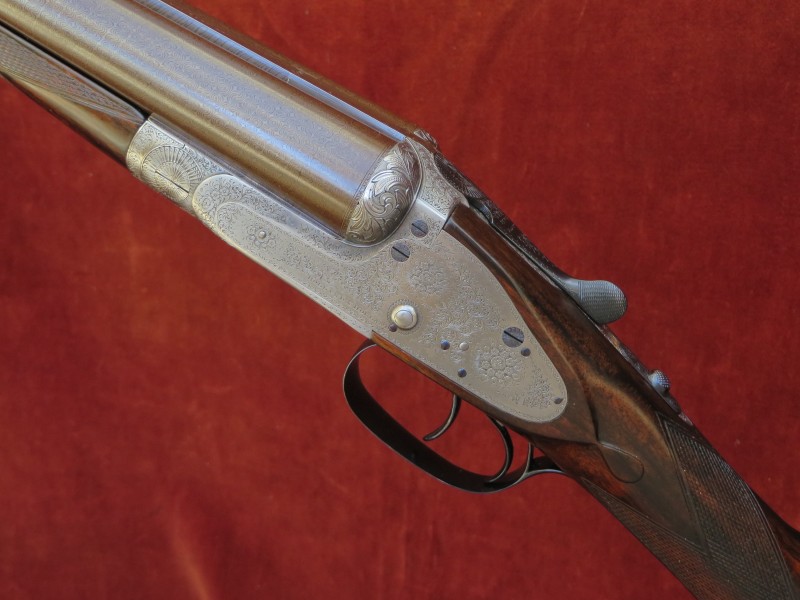

The action
is of combined Holland & Robertson design and features:
Rounded
action bar;

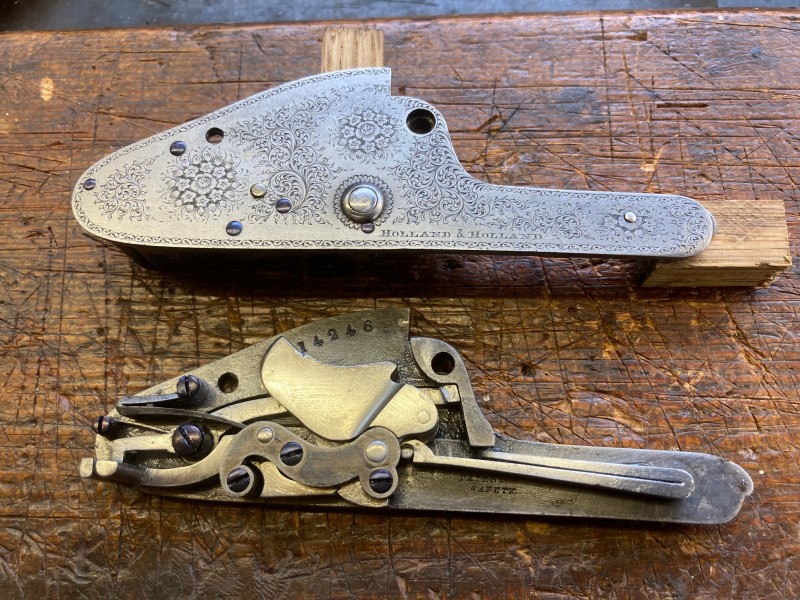

Baraction, 'Dip Edge', 9 pin locks with bolstered
tumbler pivots;
‘Block Patent Safety' interceptor sears;
Double
triggers bolted by an automatic top tang safety slide;
Breech face
'Patent Gas Check';
Top lever operating a 'Purdey Bolt' by way of a
'Scott Spindle';
Top rib extension providing a 3rd bite;
Holland
& Robertson's patent ejector
and Anson's push rod forend catch.
Gun weight
with Steel 28”: 6 lb 12oz; with Damascus 30”: 6 lb 10oz

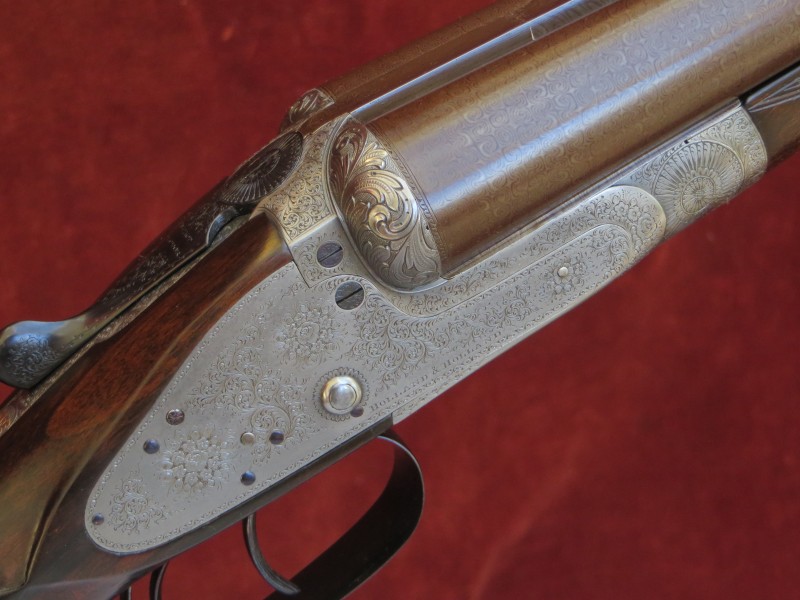

Engraving
style Very Best Bouquet & Scroll. Locks signed ‘HOLLAND & HOLLAND’.

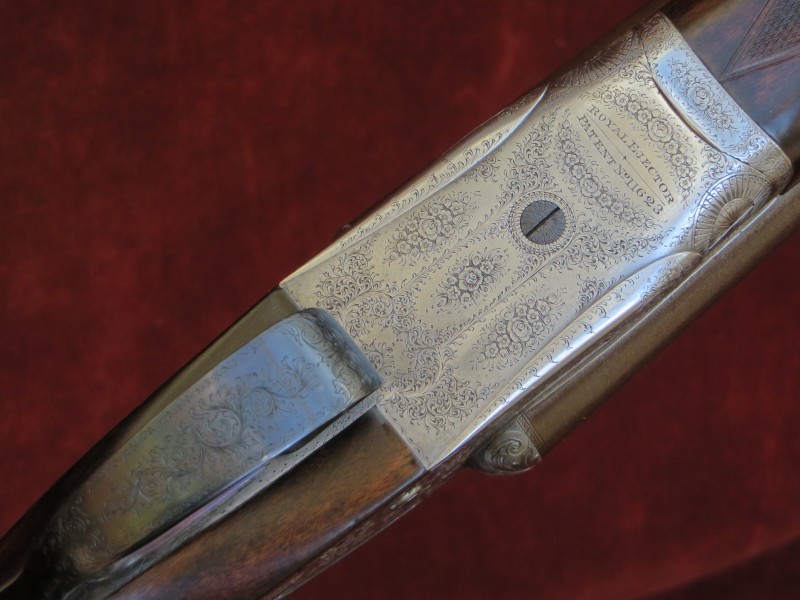

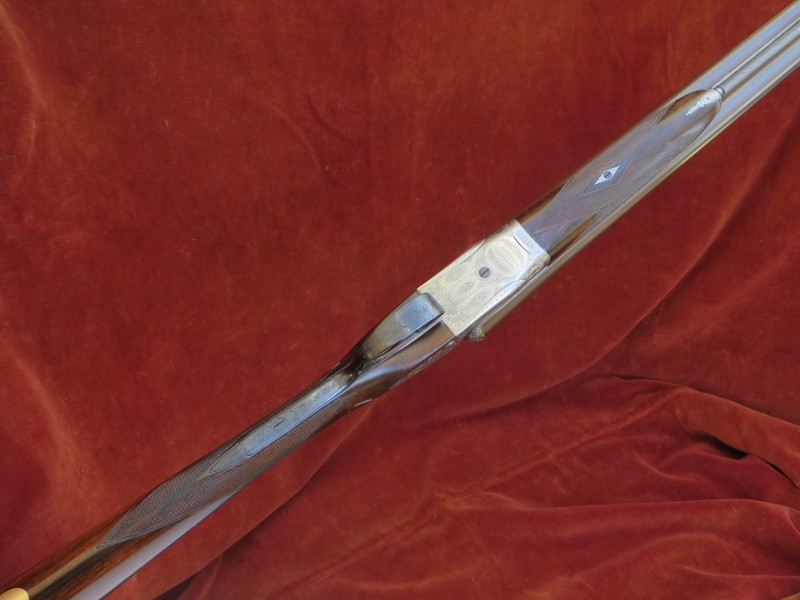

Under-bar engraved ‘ROYAL EJECTOR PATENT NO. 11623’.

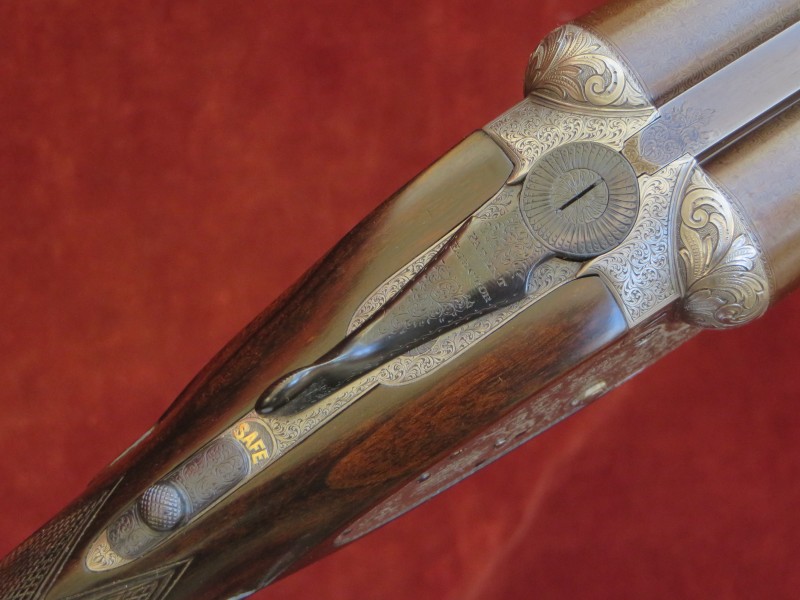

Top lever
engraved ‘PATENT EJECTOR’.
Gold inlaid ‘SAFE’. Beaded fences with
deeply engraved acanthus leaves.
Breech face stamped ‘PATENT GAS
CHECK No. 4653’.
Trigger pulls measure approximately: Front
trigger 3 ½ lbs Rear trigger 4 lbs.
The original damascus barrels
are 30" in length, chambered for 2 ½ " (65mm) cartridges.
The replacement Steel barrels
are 28” in length and chambered for 2 ¾” (70mm) cartridges.
Both
barrel sets are of dovetail lump construction with soft soldered ribs
and top ribs are of smooth, concave game type.
The damascus
barrels were nitro reproofed
in London for 2 ½” cartridges in 1980.
The steel barrels were nitro proofed in London
for 70mm cartridges 1988.
* The MWT on the damascus barrels was
found at 19” & 22” from the breech, respectively. *
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size L/R
|
Bore Diameter 9"
from Breech L/R
|
Minimum Wall Thickness L/R
|
Choke Constriction L/R
|
28" Steel L/R
|
Both 0.728"
|
0.730"/0.729"
|
Both 0.028"
|
0.017" (Mod)/0.008"
(IC)
|
30" Dam L/R
|
0.740"0.729"
|
0.743"/0.732"
|
Both 0.018"
* see above
|
0.025" (IM)/0.002"
(Sk)
|

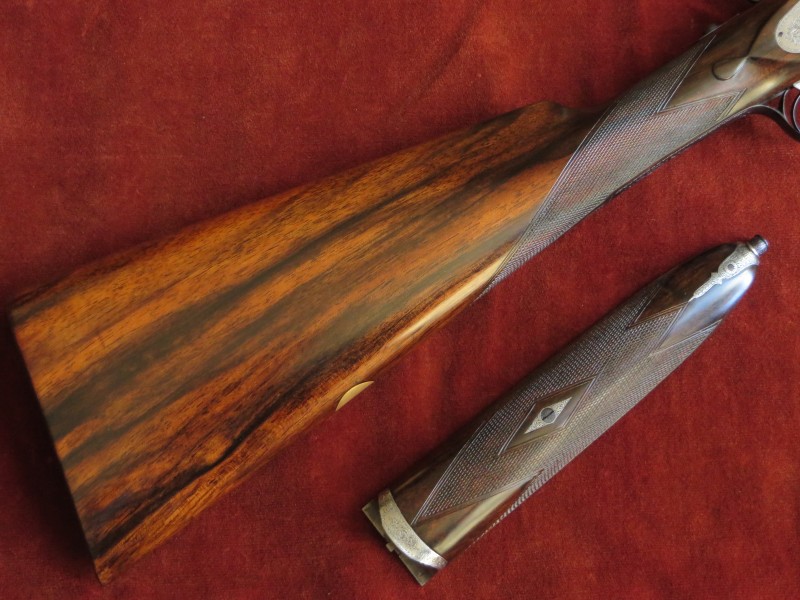

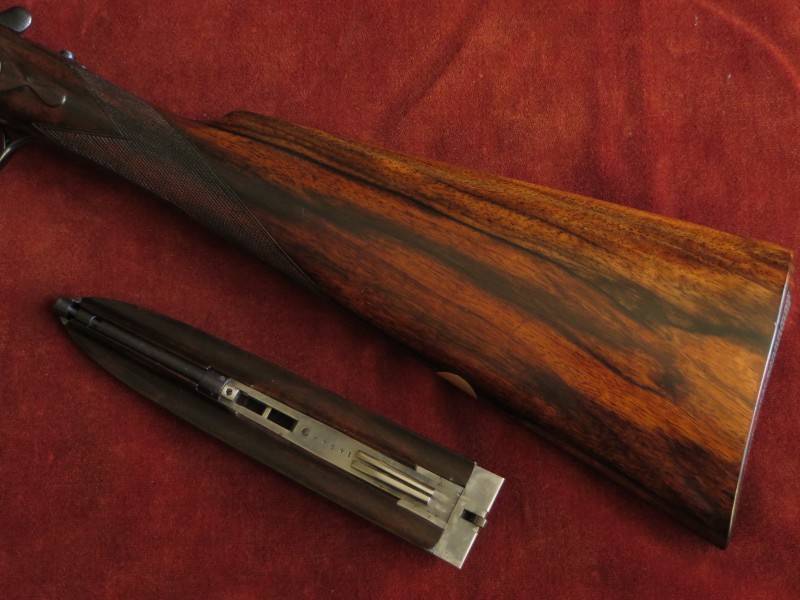

Replacement Straight Hand Stock and original (or vintage
replacement) Splinter Forend
are crafted from boldly figured walnut. The stock is cast-off for a
right-handed shot, features a vacant yellow metal oval, well defined
drop points and is finished with a chequered butt.
The
forend is fitted with a finely engraved steel forend tip
and diamond and has two inlet repairs to its forward edge.
The 24 lines per inch chequering
has been freshened to original sidelock pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Note: The drop measurements differ depending on which set of barrels
are fitted. This is due to the way the barrel maker fitted the new
barrel to the action and is not unusual. We assume the restocking was
done to give the correct measurements for the owner with the steel
barrels but can not be certain.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/2 "
|
14 5/8"
|
14 1/2"
|
14 7/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
Dam. 1 1/2"/Steel
1 5/8"
|
Dam. 1 3/4"/Steel 1
15/16"
|
Dam. 2 1/4"/ Steel 2
1/2"
|
Cast-off at Comb
|
Cast-off at Heel
|
1/8" (approx.)
|
5/16" (approx.)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Scott's gas check patent
no. 617 of 1882;
Needham & Hinton interceptor sears patent no. 706
of 1879;
Holland & Robertson's ejector patent no. 11623 of 1887;
'Purdey Bolt' patent no. 1104 of 1863;
'Scott Spindle' patent
no. 2752 of 1865;
Scott's top extension patent no. 1902 of
1875;
Anson’s forend fastener patent no. 3791 of 1872.
