Holland & Holland, 98 New Bond Street,
London
20 bore 'Royal' Bar Action, Sidelock Ejector
No. 11971
Date of manufacture: 1891
Click on these images for more detail.
Heritage
Guns' Comment
Holland & Holland records show
that this gun was finished in 1891 for 'Mr Hodgson' and it is
a very rare smallbore example of Holland & Holland's 'flag
ship' gun. Over recent years the gun has been modified and refurbished
greatly. Probably made as a non-ejector, the entire forend has
been replaced with one featuring Southgate ejectors and an Anson
latch, the barrels have been soft-solder sleeved and the stock
replaced. Although this reduces the gun's originality, it has
made it an excellent tool for hunting quail and upland birds.
With its excellent weight, interceptor sears, long stock and barrel
dimensions, this gun would make a fine target or game gun for
the discerning shooter.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|
The action is of combined Holland
& Robertson design and features:
Bar action, 'Dip Edge' locks with bolstered tumbler pivots;
Double triggers bolted by an automatic top tang safety slide;
Breech face 'Gas Checks';
'Patent Block Safety' interceptor sears;
Top lever operating a 'Purdey Bolt' by way of a 'Scott Spindle';
Top rib extension providing a 3rd bite;
Southgate ejectors
and Anson's push rod forend catch.
Note: There is an old weld repair to the rear trigger blade and the
triggerguard appears to be a replacement.
Gun weight 6lb 6oz

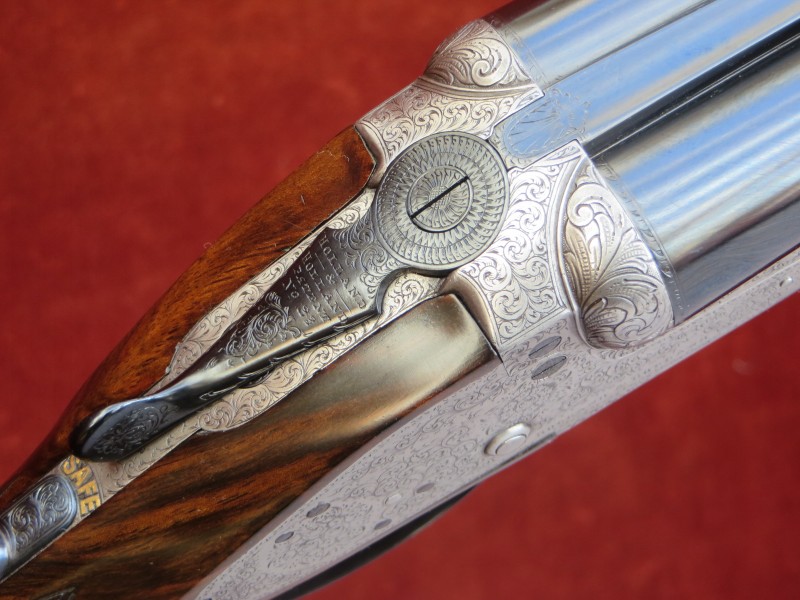

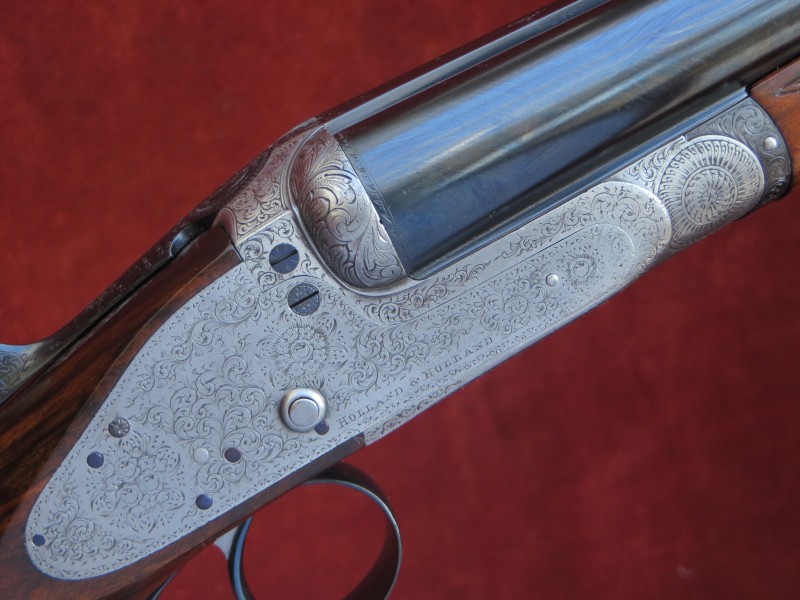

Engraving style Best Fine Bouquet & Scroll. "THE ROYAL'

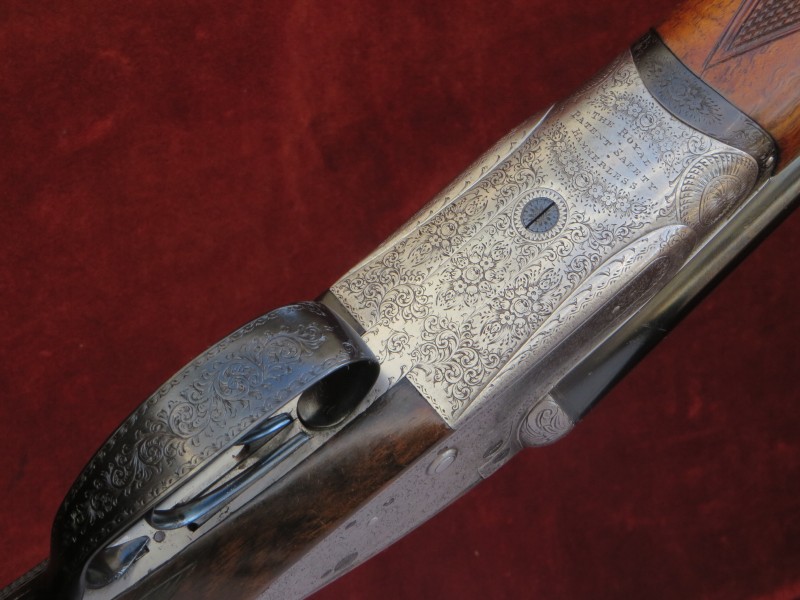

PATENT SAFETY HAMMERLESS' on underside of action; Top lever engraved
'HOLLAND & HOLLAND PATENT No.23'. Fences chiselled with bold acanthus
leaves. Gold inlaid SAFE.
Trigger pulls measure approximately: Front trigger 3 ½
lbs Rear trigger 4 ½ lbs
The soft solder sleeved steel barrels are 26" in length,
chambered for 2 3/4" (70mm) cartridges and are of brazed 'dovetail'
construction with soft soldered ribs.
Top rib is of the smooth, concave game type.
Birmingham reproof for 70mm nitro powder cartridges in 2016.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
15.6mm (0.614")
|
0.614"
|
0.033"
|
0.004" (Skeet)
|
Left Barrel |
15.7mm (0.618")
|
0.616"
|
0.031"
|
0.010" (IC)
|

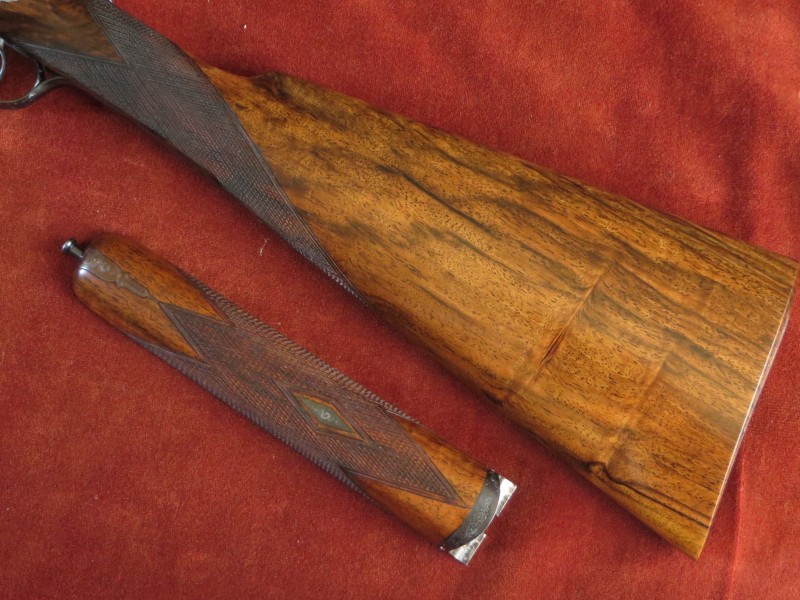

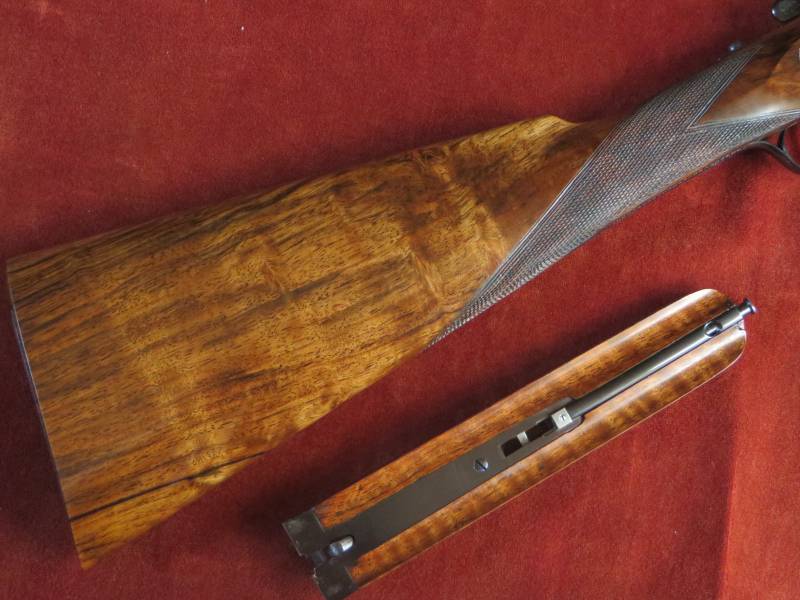

The replacement Straight Hand Stock and Splinter
Forend are crafted from well figured walnut. The stock is cast
off for a right-handed shot and is finished with a chequered butt.
The entire forend is a recent replacement, complete with Anson catch
and Southgate ejectors.
|
Well Figured Walnut Stock &
Forend
|
|
The 20 lines per inch chequering has been cut
to a normal sidelock pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 3/8"
|
14 1/2"
|
14 1/2"
|
14 7/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 7/16"
|
1 5/8"
|
2"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximate)
|
1/4" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Scott's gas check patent no. 617 of 1882,
Needham & Hinton interceptor sears patent no. 706 of 1879,
Southgate's ejector patent no. 12314 of 1889,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Scott's top extension patent no. 1902 of 1875,
Anson's forend fastener patent no. 3791 of 1872.
