Charles Ingram, 18B Reinfeld Street,
Glasgow, Scotland
12 bore Bar Action, Sidelock Ejector
no. A5079
Date of manufacture: pre-1896
Click on these images for more detail.
Heritage
Guns' Comment
Charles Ingram was a small Scottish
provincial gunmaker, based in Glasgow and generally known for
low to middle quality guns. However, this gun exudes quality and
finish and must have been completed as a special order for some
wealthy, local customer. Built with bar locks, it exhibits many
features commonly found on guns from more illustrious gunmakers,
later Holland style interceptor sears not least among them
The original 30" damascus barrels have been re-proofed for
2 3/4" nitro cartridges and together with replacement stock
and forend make this a fine gun for game or targets. This all
adds up to a beautiful and strong gun that is a joy to shoot and
should give many years of service on game or clays with normal
maintenance.
WE REGRET THAT THIS GUN
IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT
US.
|

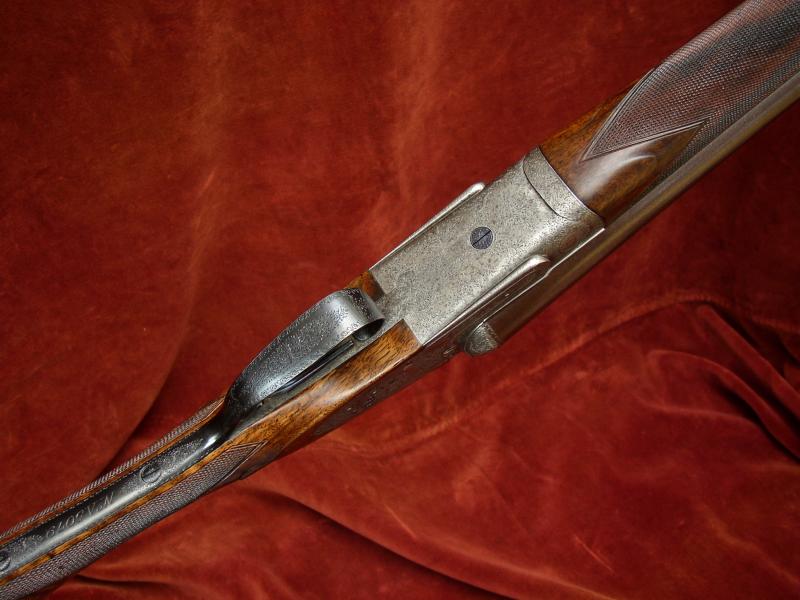

The Action is of traditional
SLE design and features:

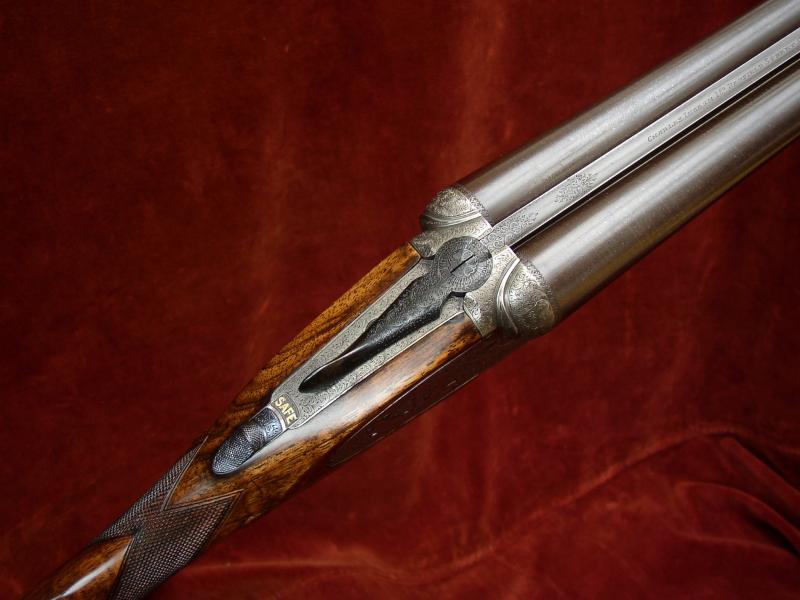

Top lever opening, Scot style top extension, Purdey Bolt operated by
a Scott Spindle,
Double triggers bolted by an automatic top tang safety slide,

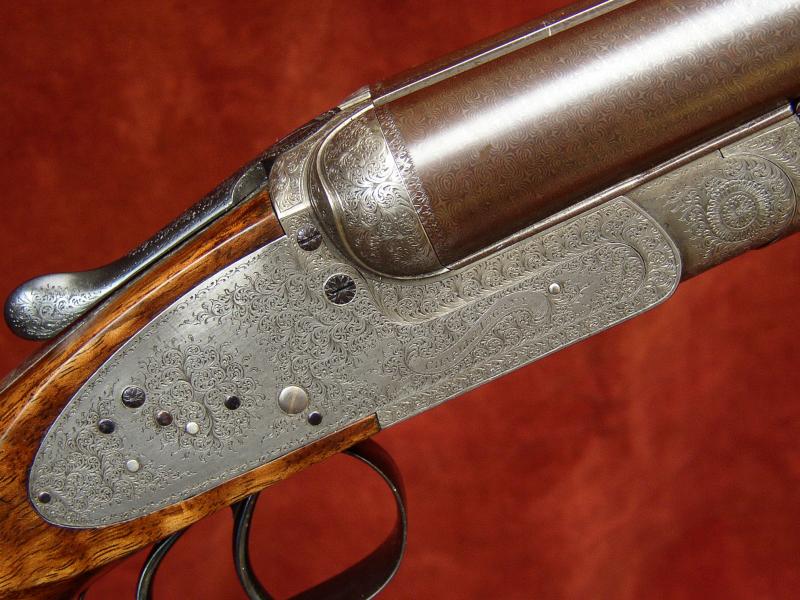

Nine pin bar action locks, Gold lined cocking indicators,
Roger's cocking levers, H&H style interceptor sears,
Baker ejectors tripped by slides in the bar of action
and Anson's push rod forend catch.
Gun weight 7lb

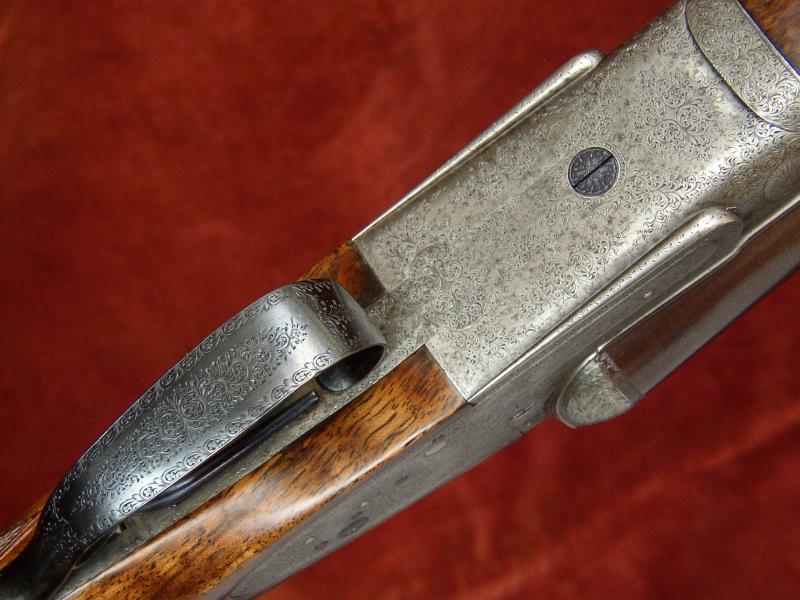

Engraving style Best Scroll. Stylised 'Pin Fire' fences. Action
bar signed with CHARLES INGRAM' in a scrolling banner. Gold 'SAFE'
Trigger pulls measure approximately: Front trigger 3 1/4 lbs
Rear trigger 4 lbs
The original damascus barrels are 30" in length, chambered
for 2 3/4" (70mm) cartridges and are of brazed dovetail lump construction
with soft soldered ribs.
Top rib is of the smooth, concave game
type.
Birmingham reproof for 70mm nitro powder cartridges in 2012
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.7mm
(0.736")
|
0.738"
|
Mainly 0.022" plus.
Patch @ 0.019" 10" from muzzle
|
0.007" (IC)
|
Left Barrel |
18.7mm
(0.736")
|
0.736"
|
Mainly 0.022" plus.
Patch @ 0.019" 9" from muzzle near top rib
|
0.016" (Mod)
|

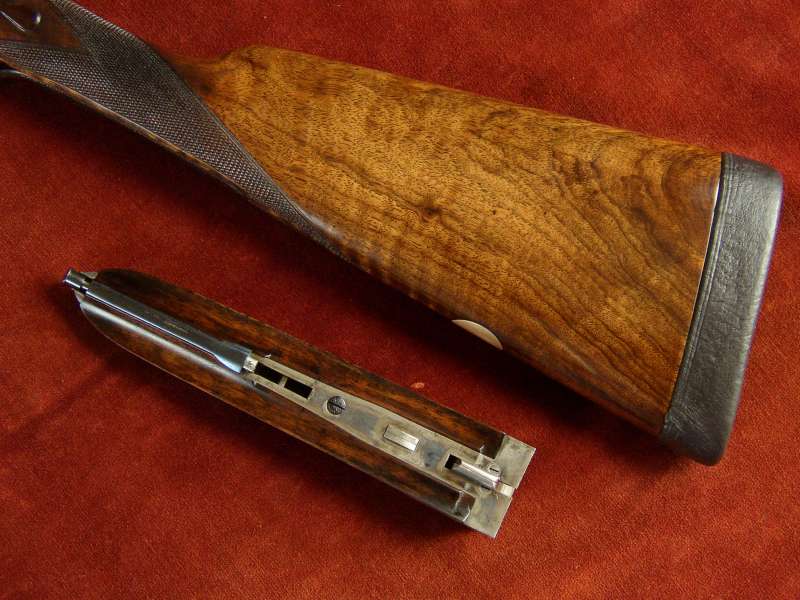

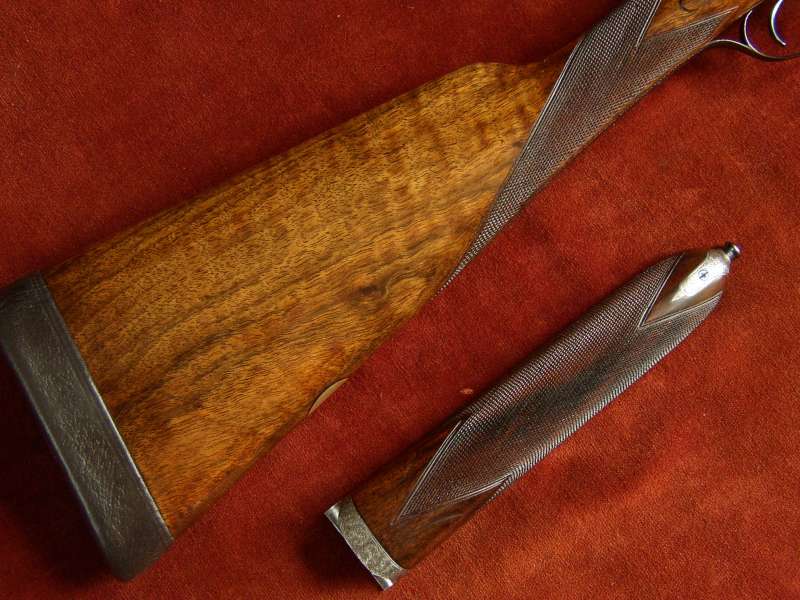

The replacement Straight Hand Stock and Splinter
Forend are crafted from figured walnut. The stock is cast-off for
a right-handed shot, features a vacant yellow metal oval, well defined
drop points and a 1" leather covered recoil pad. The bolstered
forend features a finely engraved steel forend tip.
The 22 lines per inch chequering is to the
normal sidelock pattern
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish
uses no grain fillers to achieve its deep, smooth lustre, only many
hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 5/8"
|
14 3/4"
|
14 5/8"
|
15"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 11/16"
|
1 7/8"
|
2 5/8"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8" Approximate
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Roger's cocking levers patent no 397 of 1882;
'Purdey Bolt' patent no. 1104 of 1863;
Scott's top extension patent no. 1902 of 1875;
'Scott Spindle' patent no. 2752 of 1865;
Baker's ejector patent no. 17292 of 1890;
Anson's forend fastener patent no. 3791 of 1872.
