Charles
Lancaster, 151 New Bond Street, London
12 bore Box Lock Ejector
no. 07408
Date of manufacture: 1894
Click on these images for more detail.
Heritage
Guns' Comment
This gun is an example in unusually fine condition
of a design that competed directly with the Anson & Deeley
boxlock and represents a rare opportunity to buy a gun retailed
by this respected gunmaker but designed by the famous Frederick
Beesley. There is a little original colour hardening still visible
on the action and this coupled with the sensitive restoration
makes it a very pretty and highly 'shootable' gun for either game
or clays.
This gun comes complete with a brass cornered,
leather case in very sound external condition with new handle
and straps. Internally, the case has been relined with new 'Burgundy'
all wool baize, carries a Heritage
Guns label and is fitted out with ebony and brass tools
including 3 turnscrews mounted in a hand made oak block and a
two part cleaning rod. The case is further equipped with a pewter
oil bottle, nickel plated snapcaps and a set of cleaning tools
in a leather wallet.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

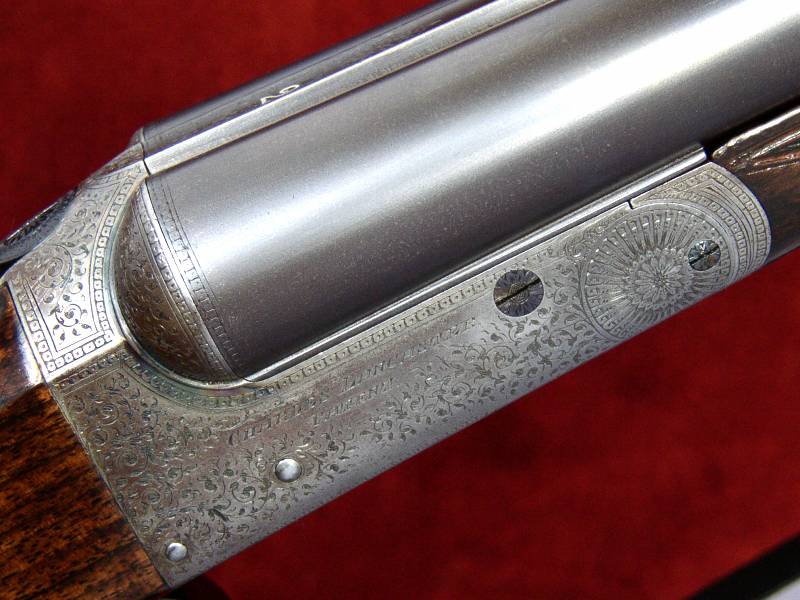

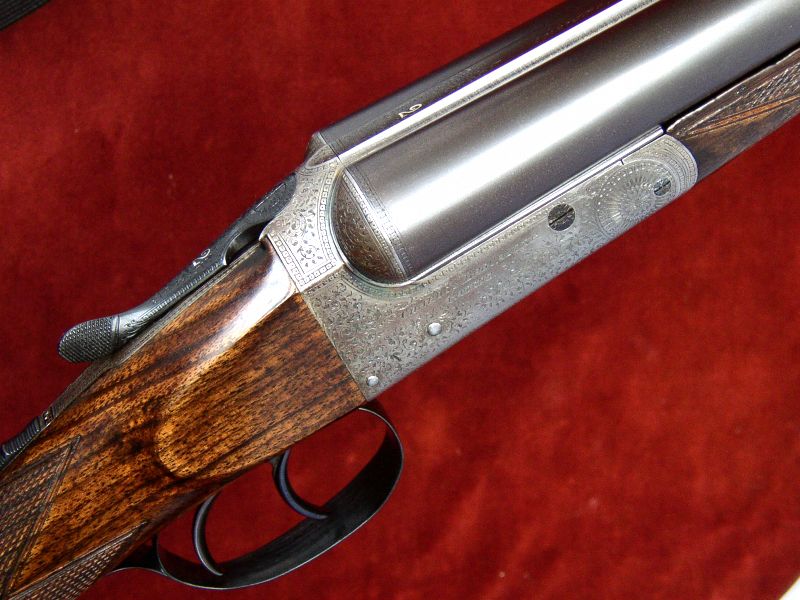

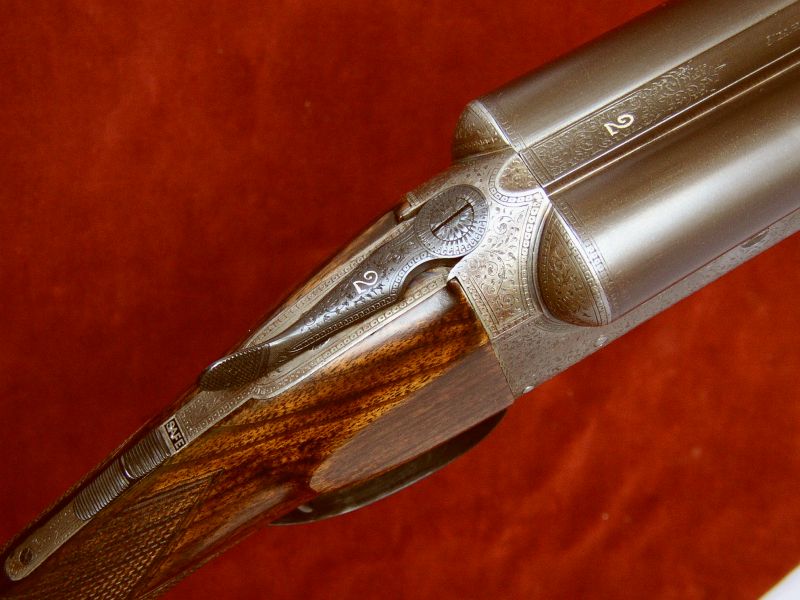

The action
is of Frederick Beesley's 'Wristbreaker' design which features:
Mainsprings that only tension when gun is closed, which lends a self-opening
effect,
Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Beesley's 'Patent Block Safety' mainspring blocks,
Perkes' patent over-center ejectors controlled by slides running from
the action knuckle
to the main springs,
'Sugar Tongs' forend fastener.
Gun weight 6lb 10oz
Engraving style Best bold foliate and borders.
Trigger pulls measure approximately: To be confirmed
The fine Damascus
barrels are 30" in length, chambered for 2 ¾" (70mm)
cartridges and are of brazed 'dovetail' lump construction with soft
soldered ribs. Top rib is of the smooth, concave, game type. There is
vestigial pitting to the left barrel. This is pacified and has been
left in to maintain wall thickness.
London reproof for 70mm nitro powder cartridges in 2004.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.735"
|
0.029" Minimum
|
0.005" (Imp Cyl)
|
Left Barrel |
18.7mm (0.736")
|
0.741"
|
0.025" Minimum
|
0.023" (Half)
|

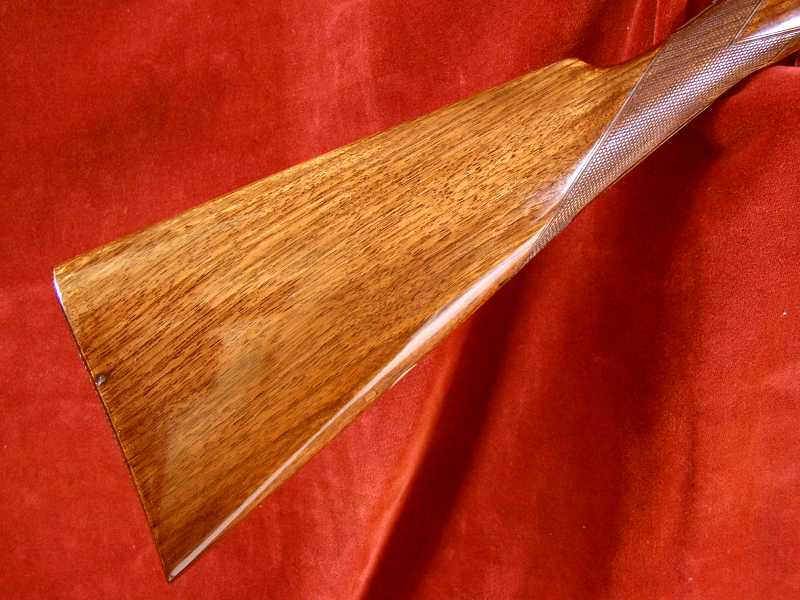

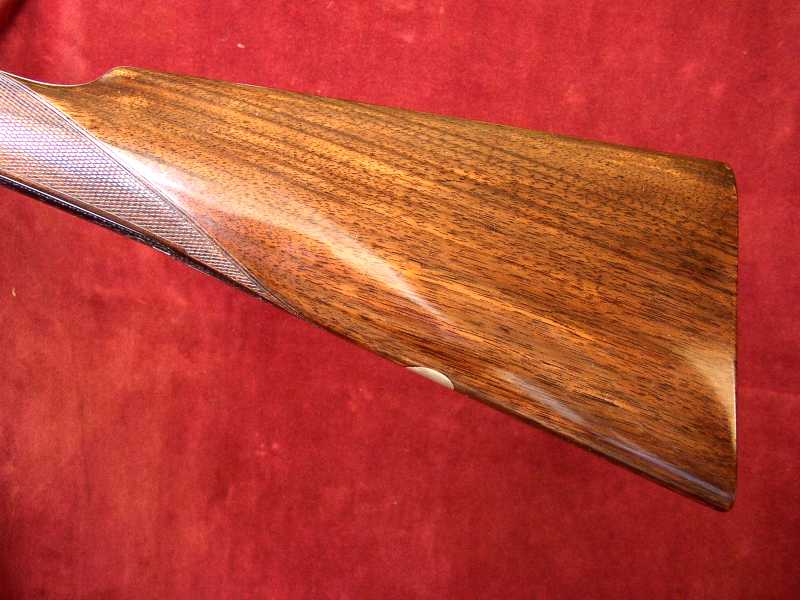

Straight Hand
Stock and Splinter Forend
are crafted from lightly figured, straight grain walnut. The stock is
slightly cast off for a right-handed shot.
|
Lightly figured,
straight grain walnut stock.
|
|
The 20 lines per inch
chequering freshened to the normal
boxlock design with blank oval.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/2"
|
14 9/16"
|
14 1/2"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 13/16"
|
2 1/2"
|
Cast at Comb
|
Cast at Heel
|
1/4" (approximate)
|
1/2" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Perkes' ejectors patent no. 10084 of 1888,
Beesley's action patent no. 425 of 1884,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Beesley's 'Patent Block Safety' and safety catch no. 14488 of 1884,
and last but not least
Henry's snap cap patent no. 3257 of 1870.
