Lawn
& Alder, 1 & 2 Brackley Street, London
12 bore Box Lock Ejector
no. 8075
Approximate date of manufacture: Circa 1896
Click on these images for more detail.
Heritage
Guns Comment
This gun is a simply finished example of the Anson
& Deeley boxlock that had become such a hugely successful
design by the last decade of the 19th Century and is still made
in great numbers today. The polished action is modestly engraved
with border lines and the action is signed by the maker in a cartouche.
However, the stock is a very nicely figured piece of walnut and
coupled with our sensitive restoration, this boxlock ejector would
make a very pretty and 'shootable' gun for either game or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

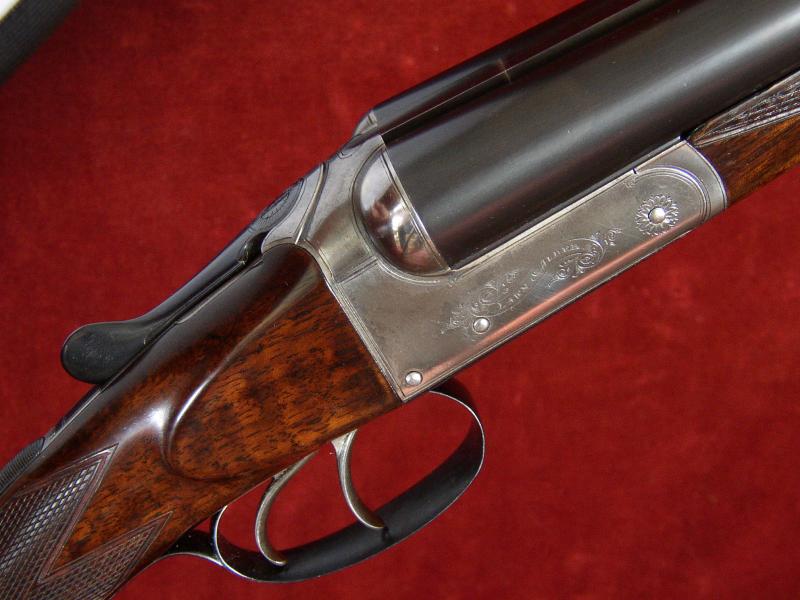

The Action
is of Anson & Deeley design and features:

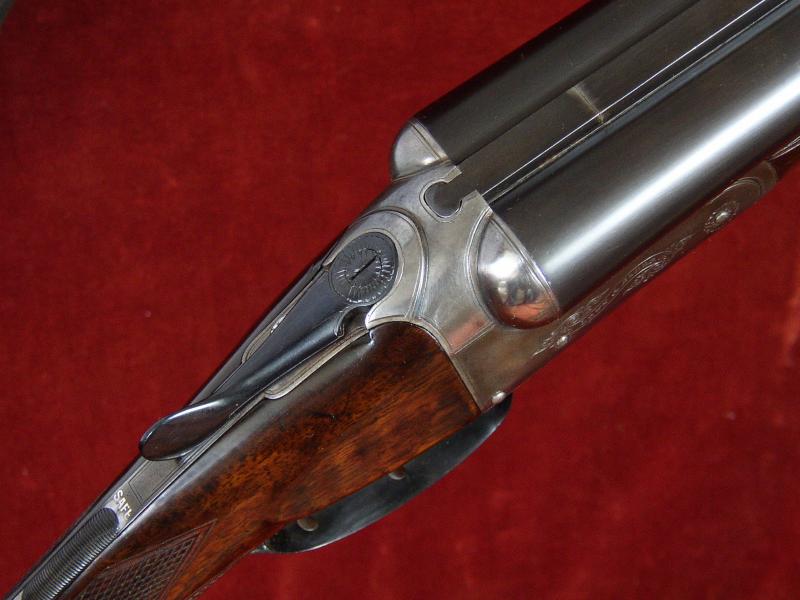

Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt',
'Doll's Head' top rib extension,
Tumbler and sear ejectors to 'Deeley' design tripped by slides
running from the action knuckle to the main springs,
'Deeley' forend catch.
Gun Weight 6lb 12oz
Engraving Style Border engraved with action signed in a cartouche.
As is our custom, Trigger Pulls have been adjusted for 'feel'
rather that to any particular pull weight but for the record they
measure approximately: Front trigger 3 1/2lbs Rear trigger 3 1/2lbs
The original Steel Barrels are 30" in length, chambered
for 2 ¾" (70mm) cartridges and are of brazed 'dovetail'
lump construction with soft soldered ribs. Top rib is of the smooth,
concave, game type. The tubes are clean and free of any pitting.
London reproof for 70mm nitro powder cartridges in 2006.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.2mm (0.716")
|
0.717"
|
0.038" Minimum
|
0.002" (Cyl/Imp)
|
Left Barrel |
18.7mm (0.736")
|
0.735"
|
0.024" Minimum
|
0.035" (7/8)
|
The Straight Hand
Stock and Splinter Forend
are crafted from well figured walnut. There is a small inlet repair
at the immediate rear of the top strap. The stock is very slightly cast
off for a right-handed shot and is finished with a traditional lined
horn butt plate.
|

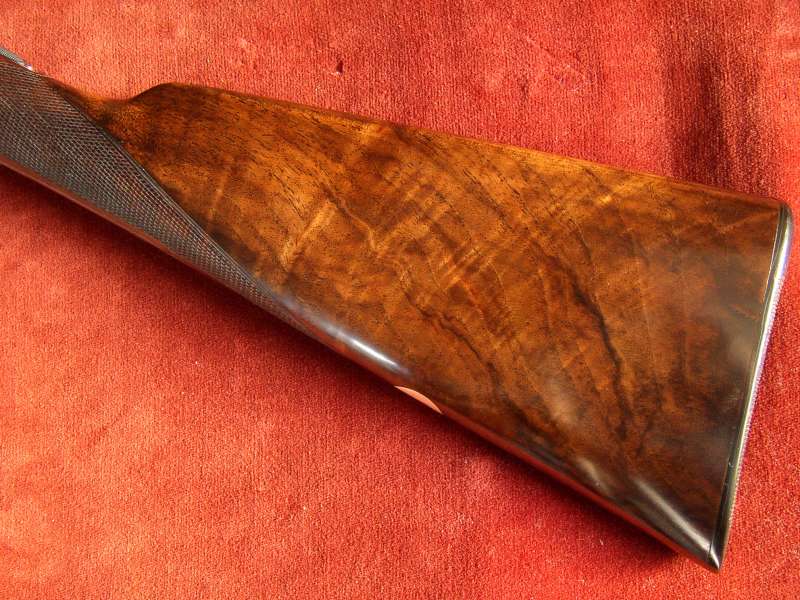

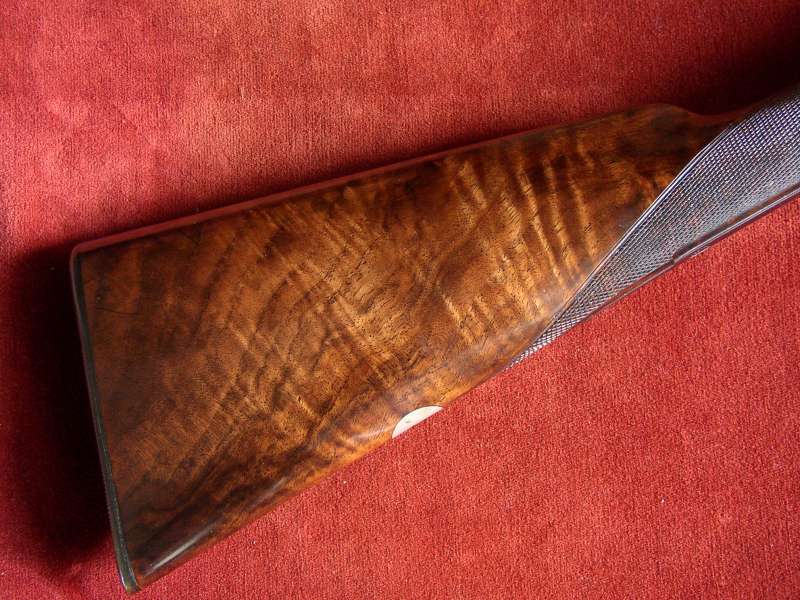

Well figured walnut stock.
|
|
The 20 lines per inch
chequering freshened to the normal
boxlock design .
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 3/8"
|
14 1/2"
|
14 3/8"
|
14 3/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 3/4"
|
2 1/4"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Deeley's ejectors patent no. 4289 of 1886,
Anson & Deeley's boxlock patent no. 1756 of
1875,
'Purdey Bolt' patent no. 1104 of 1863,
Deeley's forend fastener patent
no. 1422 of 1873.
