James Purdey, 314 ½ Oxford Street,
London.
16 bore Bar-action, Bar-in-wood, hammer gun
No. 10010, No.1 of a Pair
Year of manufacture: 1877
Click on these images for more detail.
Heritage Guns'
Comment
This gun represents a very rare opportunity to acquire an almost
unique and fine condition example of a small gauge sporting
hammergun made by this illustrious maker. The engraving is still
crisp on the locks and action and the wood and barrels have
survived remarkably well considering its 130 years. The unusual

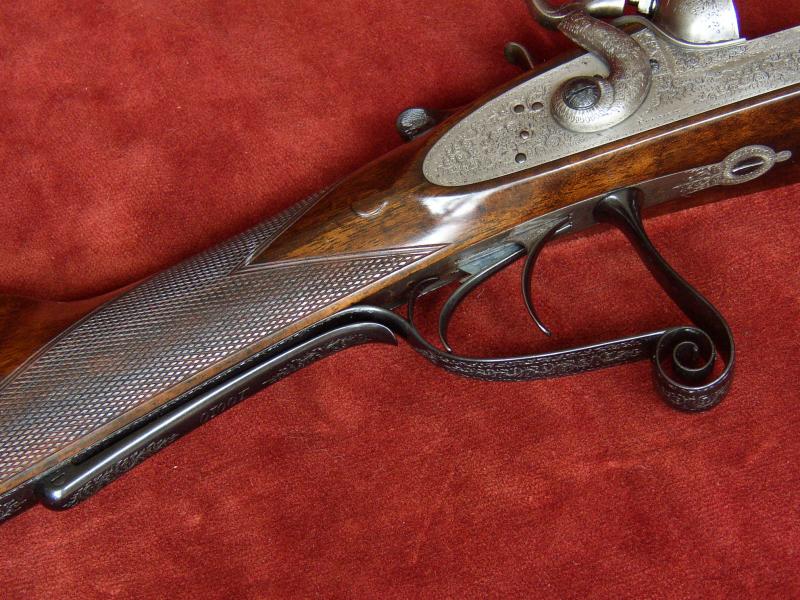

trigger guard further enhances this gun's rarity. It is of continental
design, which agrees with the escutcheon which shows the arms
of a Count, and is apparently so shaped to allow the continental
method of holding the forend, balanced on thumb and forefinger.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

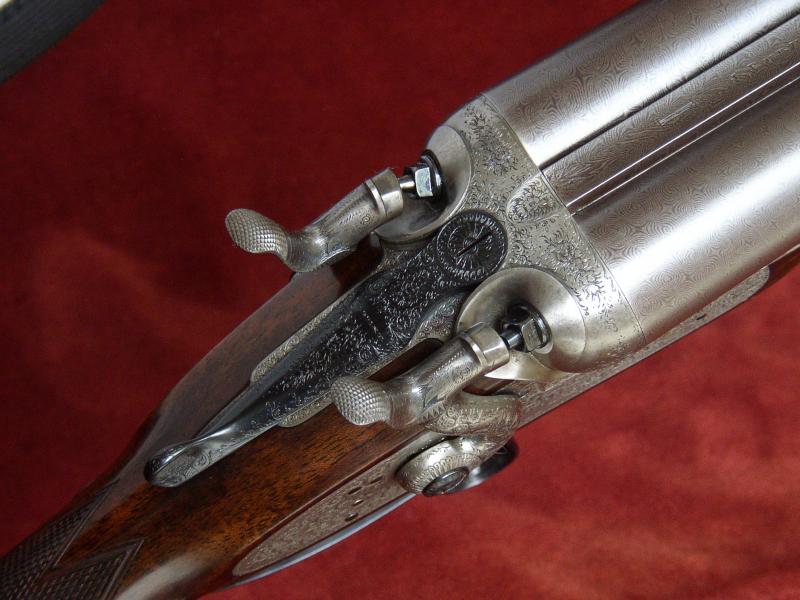

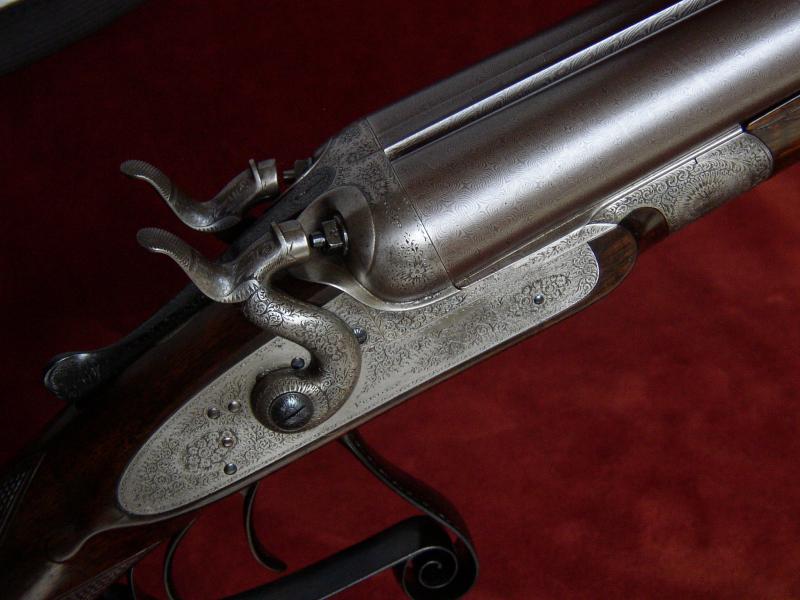

The action is
a Bar-in-wood design and features:
Double triggers; Grip safety;
Stanton bar-action, rebounding locks; Dolphin hammers;
Percussion fences; Sprung strikers;
Top lever operating a 'Purdey Bolt' by way of a 'Scott Spindle';
Anson forend fastener.
Gun weight 6lb 7oz Engraving style Best fine bouquet &
scroll.
Trigger pulls measure approximately: Front trigger 3 ½
lbs Rear trigger 4 ½ lbs
The Damascus barrels are 29 1/8" in length, chambered for
2 ½ " (65mm) cartridges and are of brazed 'dovetail' lump
construction with soft soldered ribs. Top rib is of the smooth, concave,
game type. There are slight bleeds along both top and bottom rib. The
ribs could be re-laid but have not been so far in the interest of originality.
The bores are pit free and show only the lightest of surface marks.
London reproof for 65mm nitro powder cartridges in 2008.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
17.3mm (0.681")
|
0.681"
|
0.023" Minimum
|
0.001" Cyl
|
Left Barrel |
17.3mm (0.681")
|
0.682"
|
0.022" Minimum
|
0.002" Cyl
|

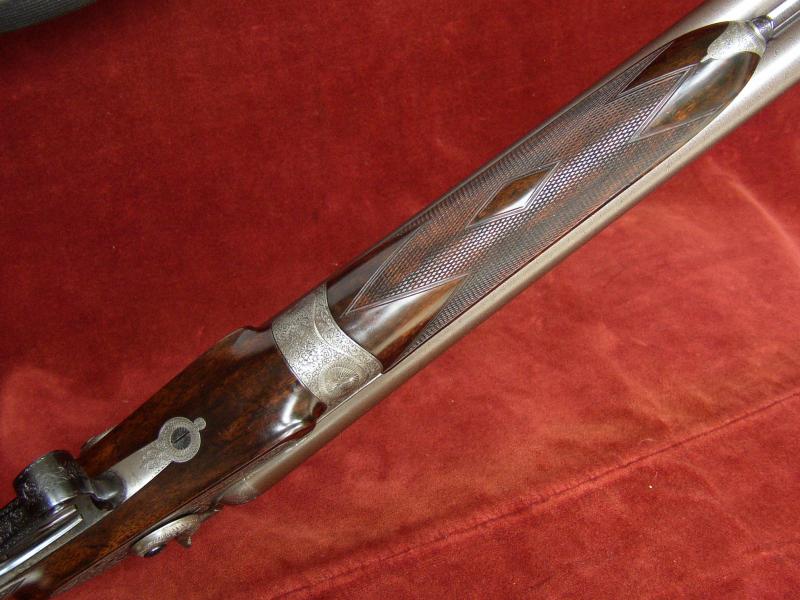

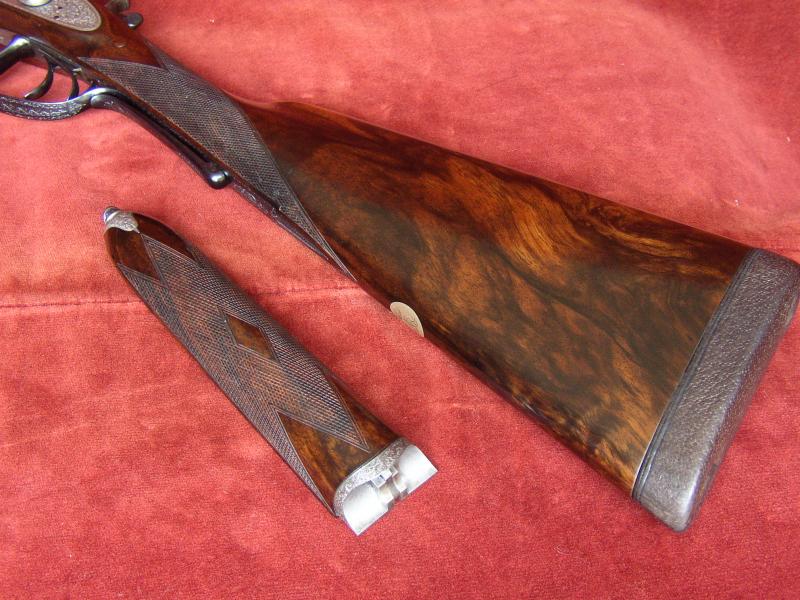

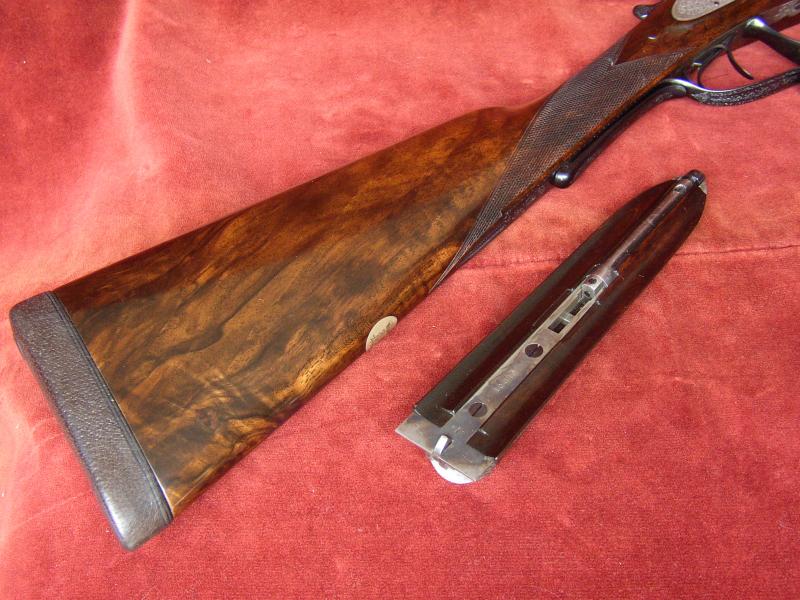

Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut. The stock is cast off for a
right-handed shot and is finished with a ¾" traditional
leather covered recoil pad.
The 22 lines per inch chequering
has been cut to a traditional design. The stock is finished with a traditional
linseed oil based preparation as used on best guns by one of the top
English makers. This finish uses no grain fillers to achieve its deep,
smooth lustre, only many hours of alternate build and flatting off of
the surface.
Approximate stock measurements at date of publication (including
any extensions):
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/2"
|
N/A
|
14 1/2"
|
14 7/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 3/8"
|
1 1/2"
|
2 7/8"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Purdey Bolt' patent no. 1104 of 1863;
Stanton's rebounding lock patent no. 367 of 1867;
'Scott Spindle' patent no. 2752 of 1865;
Anson's forend fastener patent no. 3791 of 1872.
