John Spratley of Luton, England
20 bore, Bar-action Hammergun
No Visible Number
Year of production: pre-1896
Click on these images for more detail.
Heritage Guns'
Comment
This represents an excellent opportunity to purchase a really
usable small-bore hammergun built in the last quarter of the
19th Century. This gun exhibits excellent dimension and specification
and this coupled with the sensitive restoration makes it a very
pretty and highly 'shootable' gun for either game or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

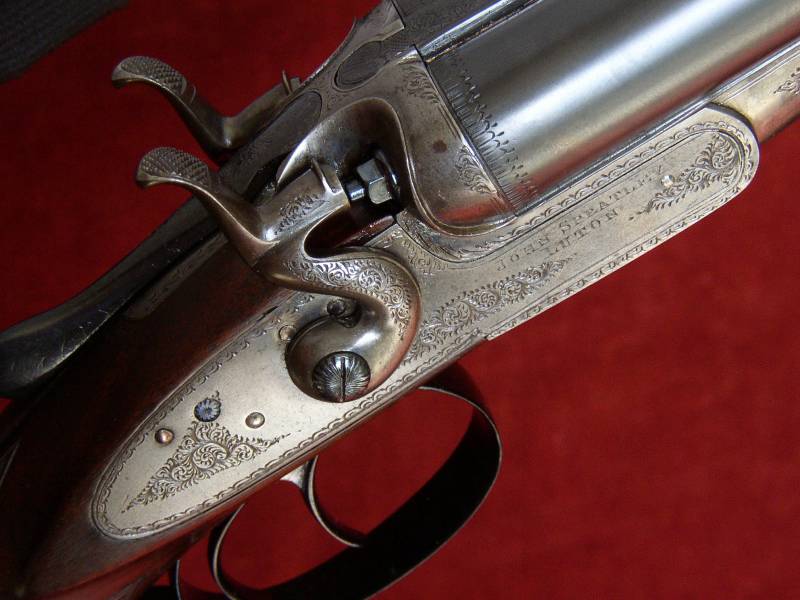

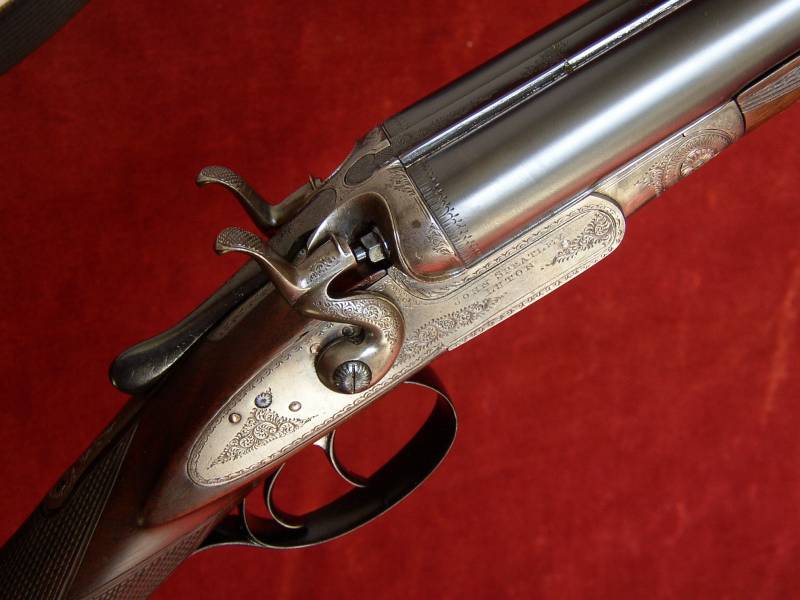

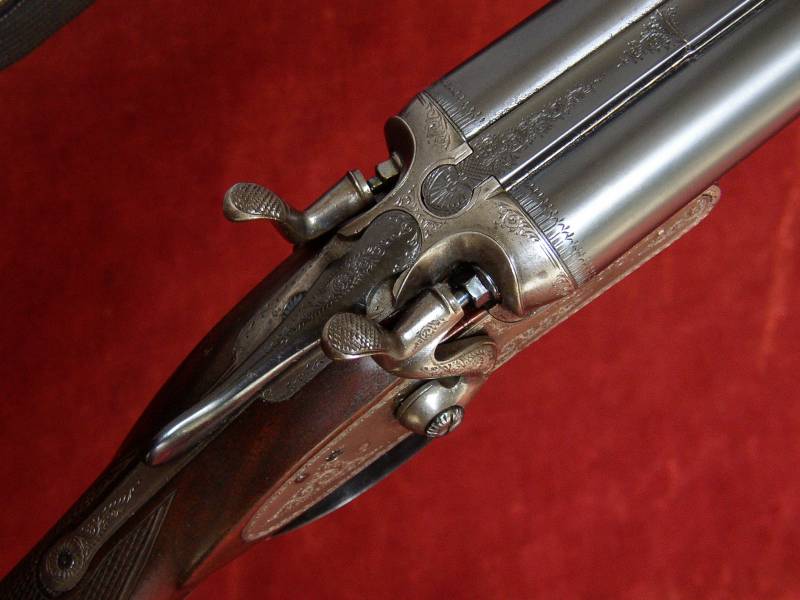

The Action is of traditional design and
features:
Double triggers,
Bar-action locks,
Rebounding hammers,
Top lever opening operating a 'Purdey Bolt',
Passive top extension.
Gun weight 5lb 12oz
Engraving style Border & scroll.
Trigger pulls measure approximately: Front trigger 4lbs Rear
trigger 5lb
The sleeved steel to Damascus are 26 ½" in length,
chambered for 2 ¾" (70mm) cartridges and are of brazed 'dovetail'
lump construction with soft soldered ribs. Top rib is of the smooth,
concave, game type.
London reproof for 70mm nitro powder cartridges in 2008.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9"
from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
15.6 mm (0.614")
|
0.614"
|
0.036"
|
0.010"
(1/4)
|
Left Barrel |
15.6 mm (0.614")
|
0.615"
|
0.030"
|
0.015"
(3/8)
|

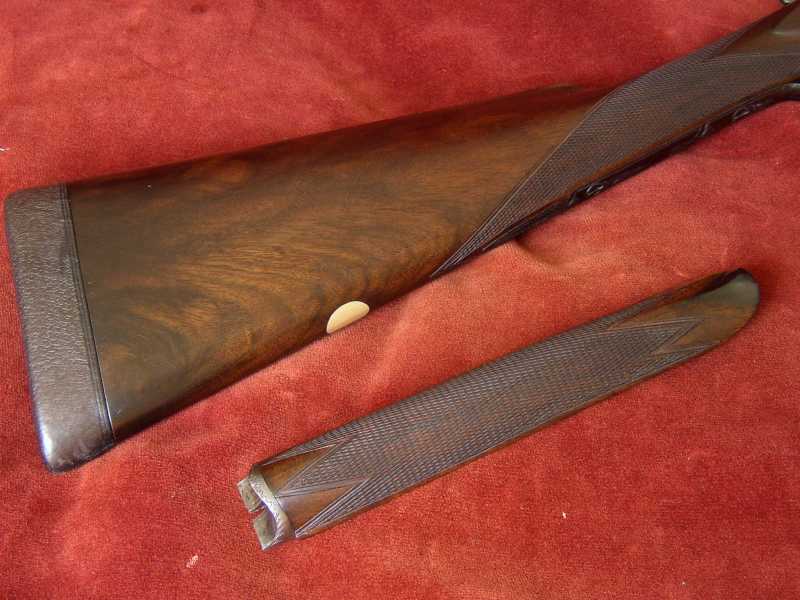

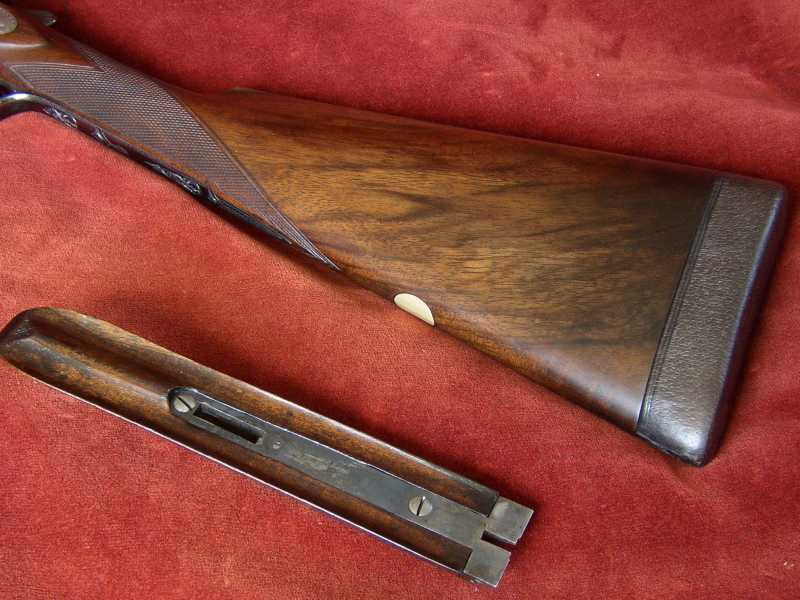

Straight Hand Stock and Splinter Forend
are crafted from figured walnut. The snap-on forend carries a horn tip
and the stock is finished with a leather covered recoil pad.
The stock is cast off for a right-handed shot.
|
Figured walnut stock and forend
|
|
The 20 (approx) lines
per inch chequering has been cut to a normal
barlock design.
The stock is finished with a traditional linseed oil based preparation.
This finish uses no grain fillers to achieve its deep, smooth lustre
but up to 30 coats of hand rubbed oil.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/4"
|
N/A
|
14 1/4"
|
14 5/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 7/16"
|
1 5/8"
|
2"
|
Cast at Comb
|
Cast at Heel
|
1/16" (approximate)
|
1/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's rebounding lock patent no. 367 of 1867;
'Purdey Bolt' patent no. 1104 of 1863;
Greener's patent no. 3090 of 1874.
