Thomas Turner, 19 Brook Street,
Bond Street, London
16 bore Ultra
Lightweight
Back Action Hammergun
No. 4319
Year of manufacture: 1875-1887
Click on these images for more detail.
Heritage
Guns' Comment

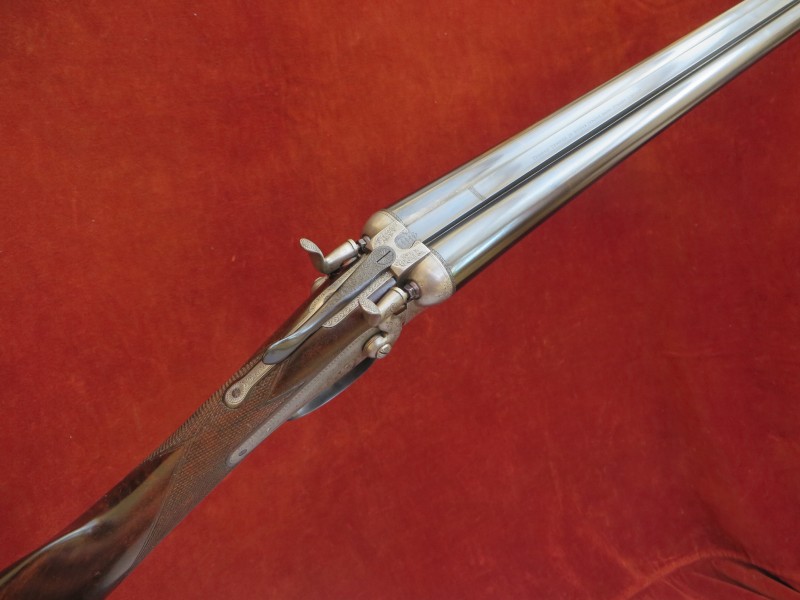

This Turner hammergun is a great example of the ultra-lightweight
guns that he was best known for. They were made in both hammer and
boxlock formats and were very successful at a time when the
fashion for light guns was at its peak.
Turner lightweight guns
are well known for their fundamental simplicity and good quality,
weight being reduced by paring away unneeded wood and metal whilst
keeping it where strength was required. The miniature Stanton
rebounding locks are of good quality and the TIG sleeved barrels
are compatible with standard steel. The cutaway stock is a
particular Turner feature and this gun’s well figured timber
coupled with the sensitive restoration makes it a very pretty,
safe and highly 'shootable' gun for either game or clays but

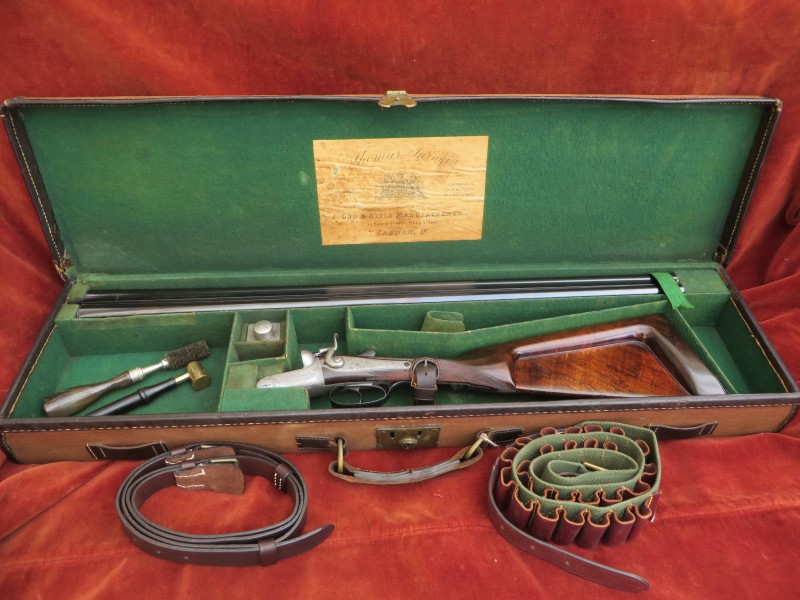

especially suitable for upland game. Presented in its original
Maker’s leather trimmed, canvas case with Maker’s trade label and
some accessories.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

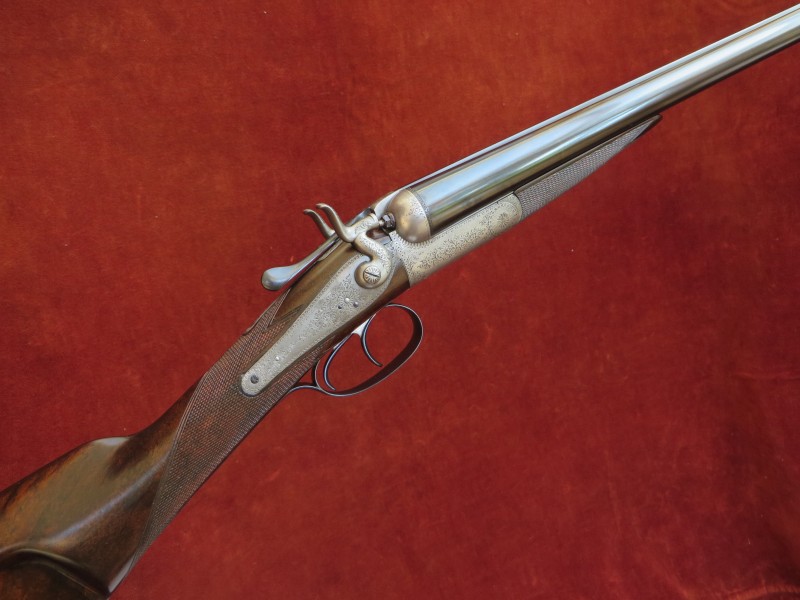

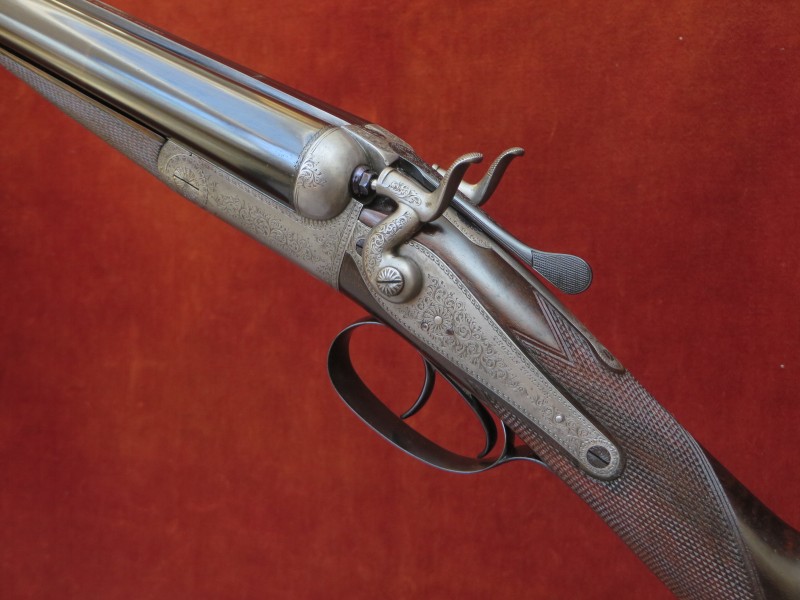

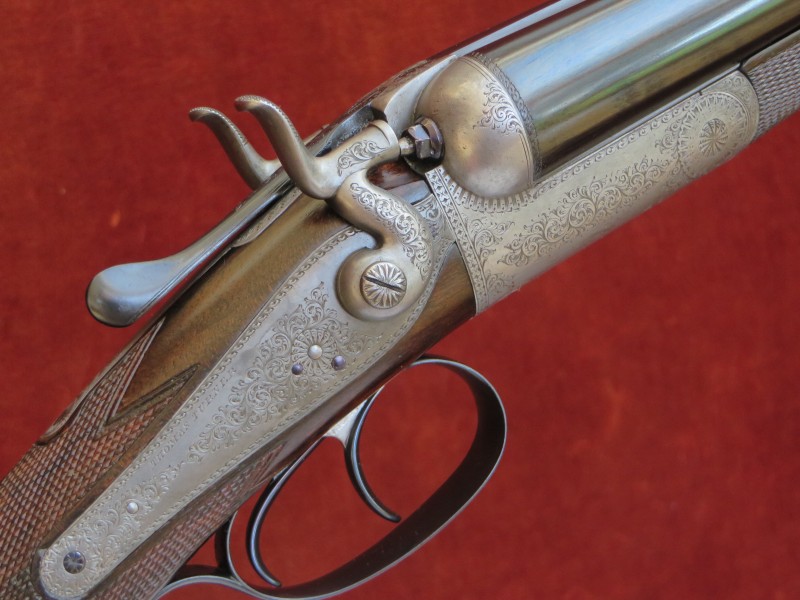

The action
is of proprietary ultra-lightweight design and features:
Miniature
Stanton patent rebounding back action locks with low-level hammers;
Sprung strikers; Double triggers;

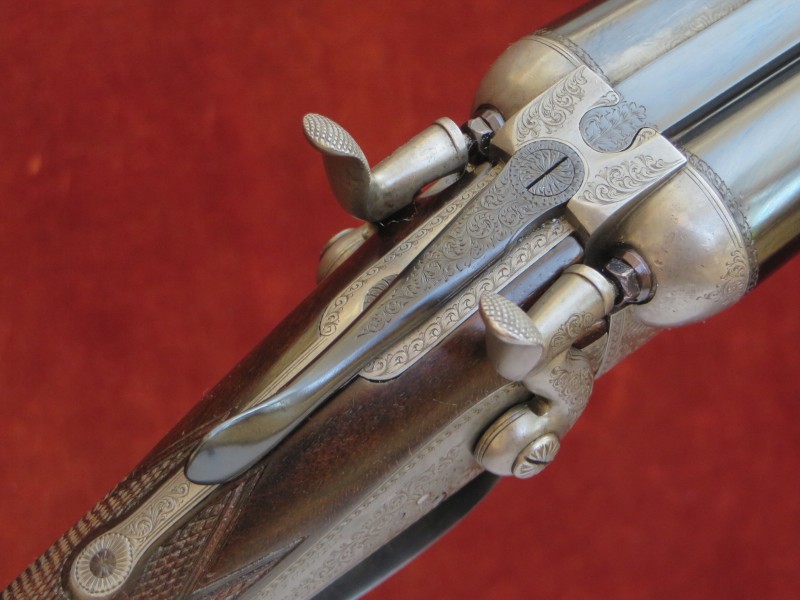

Slim top lever opening, operating
a 'Purdey' type bolt by way of a 'Scott' spindle;
Passive top rib
extension;
Miniature forend with ‘Sugar-tongs’ snap fastening;
Long top strap.

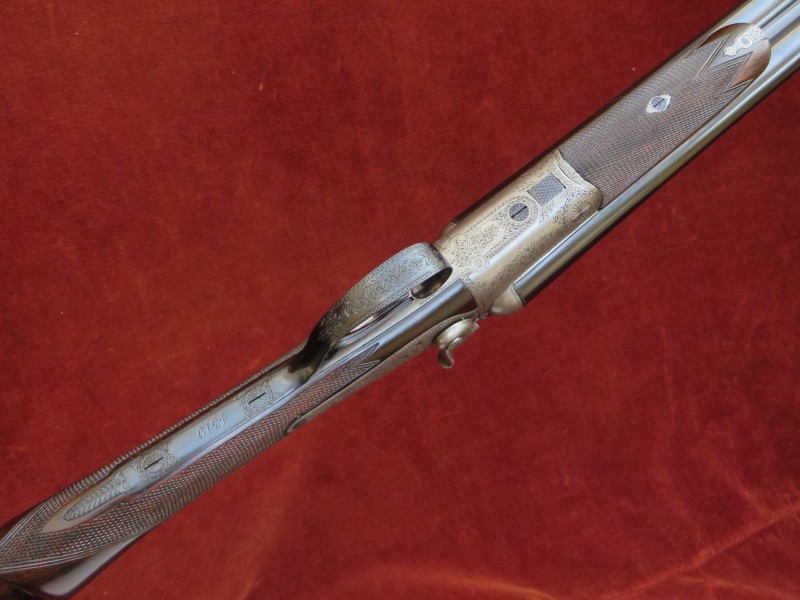

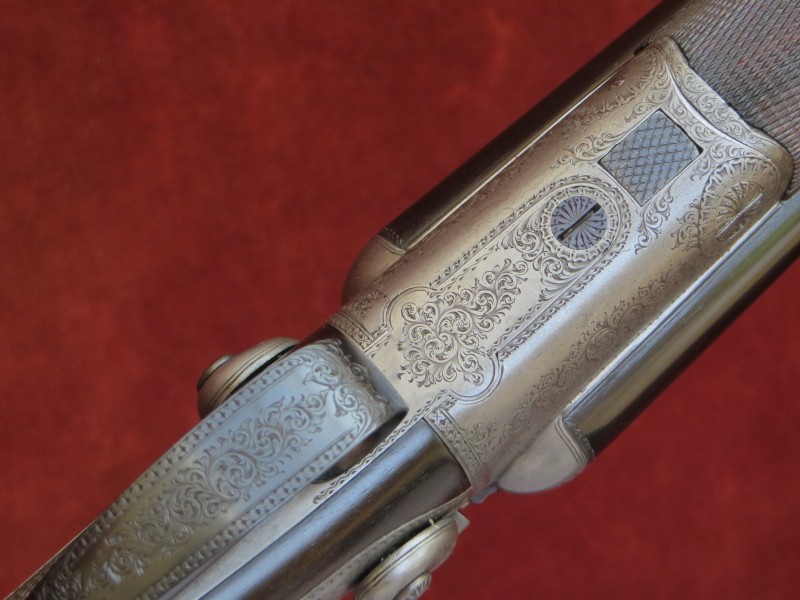

Engraving style Bold Foliate Scroll. Action
flats stamped with the Scott Tower trade mark.
Gun weight 5lb
9oz
Trigger pulls
measure approximately: Front trigger 3 ¼ lbs Rear trigger 4 ¼ lbs
The TIG sleeved steel to damascus barrels are 28" in length,
chambered for 2 ¾ " (70mm) cartridges and are of brazed 'dovetail' lump
construction with soft soldered ribs.
The gun balances about 1 ½” in front of the knuckle and we have not
re-balanced it as this is a very personal and subjective decision.
Top rib is of smooth game style.
There is a small loss of
blacking between top rib and barrel at the breech end.

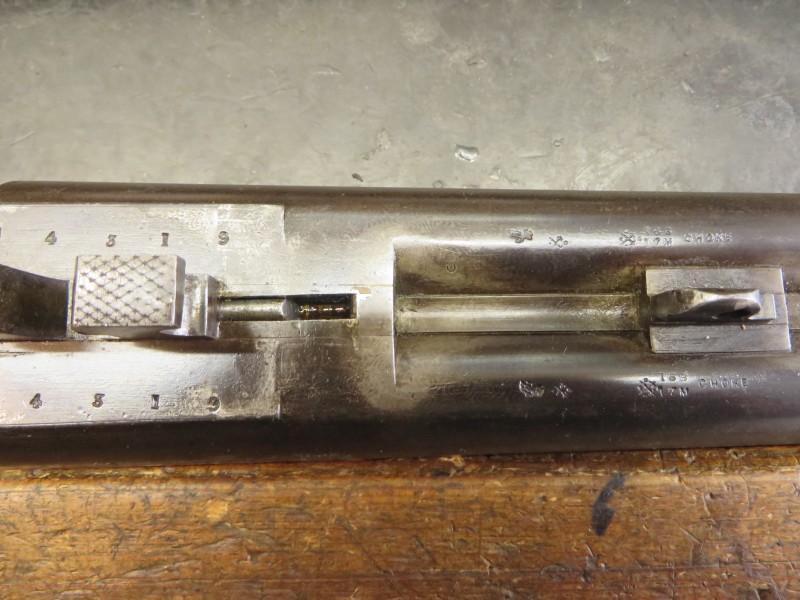

Birmingham
reproof for 70mm nitro powder cartridges in 2021.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
17.2mm (0.677")
|
0.678"
|
0.030"
|
0.013" (IC)
|
Left Barrel |
17.2mm (0.677")
|
0.678"
|
0.031"
|
0.021" (Mod)
|

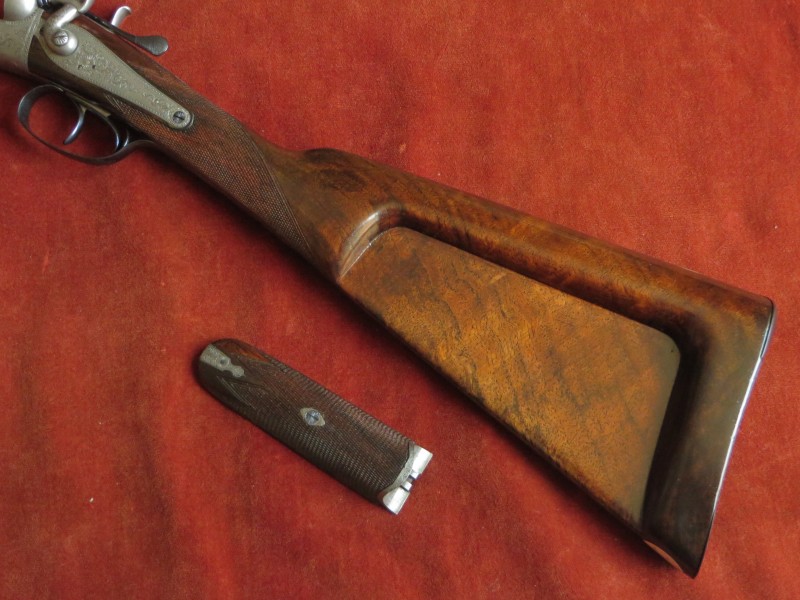

The original cutaway Straight Hand Stock and miniature
Splinter Forend
are crafted from well figured walnut and the stock is lightly
cast-off for a right-handed shot, features two engraved white metal
ovals on heel and toe and engraved heel & toe plates.
The forend has a finely engraved steel tip.
The approximately 22 lines per inch chequering is freshened
to normal backaction sidelock pattern.
The stock is finished with a traditional linseed oil based
preparation as used on best guns by one of the top English makers.
This finish uses no grain fillers to achieve its deep, smooth lustre,
only many hours of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 3/8"
|
14 5/8"
|
14 1/2"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 5/8"
|
1 11/16"
|
2 1/8"
|
Cast at Comb
|
Cast at Heel
|
1/8" Approx.
|
1/4" Approx.
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Stanton's rebounding lock patent no. 367 of 1867,
'Purdey Bolt' patent no. 1104 of
1863,
'Scott Spindle' patent
no. 2752 of 1865.
