William Evans from Purdey's, 63 Pall
Mall, St James's, London
12 bore Box Lock Ejector
no. 3877
Date of manufacture: 1898
Click on these images for more detail.
Heritage
Guns' Comment
From such a highly respected maker, this gun is
a very finely finished and specified example of the Anson &
Deeley boxlock that became such a hugely successful design by

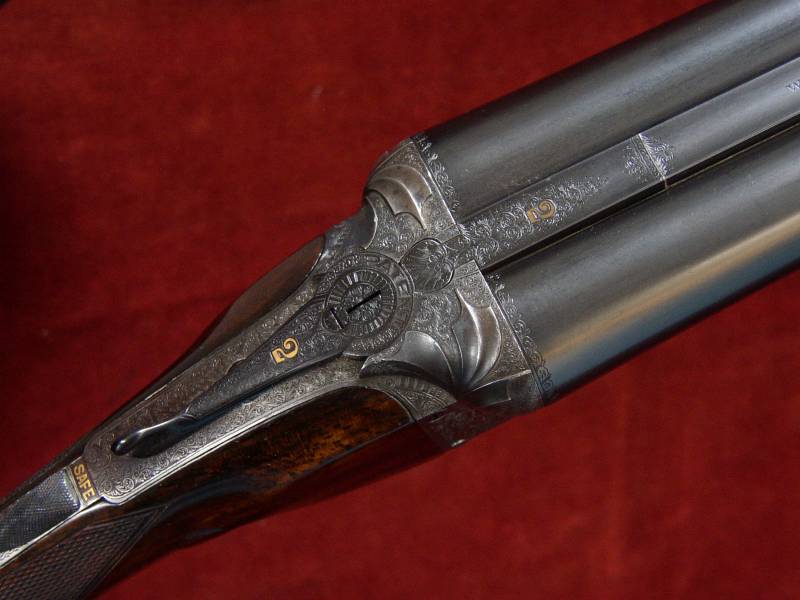

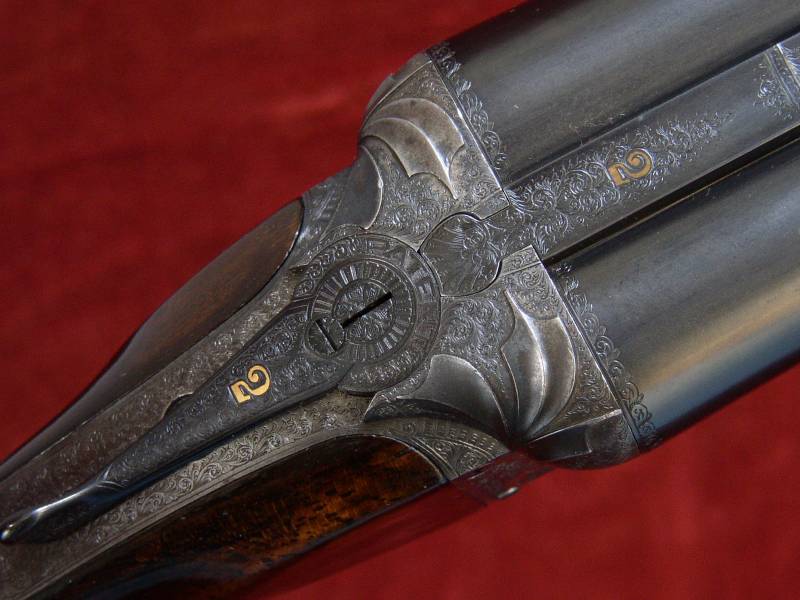

the last decade of the 19th Century. The 'Webley Horseshoe Top

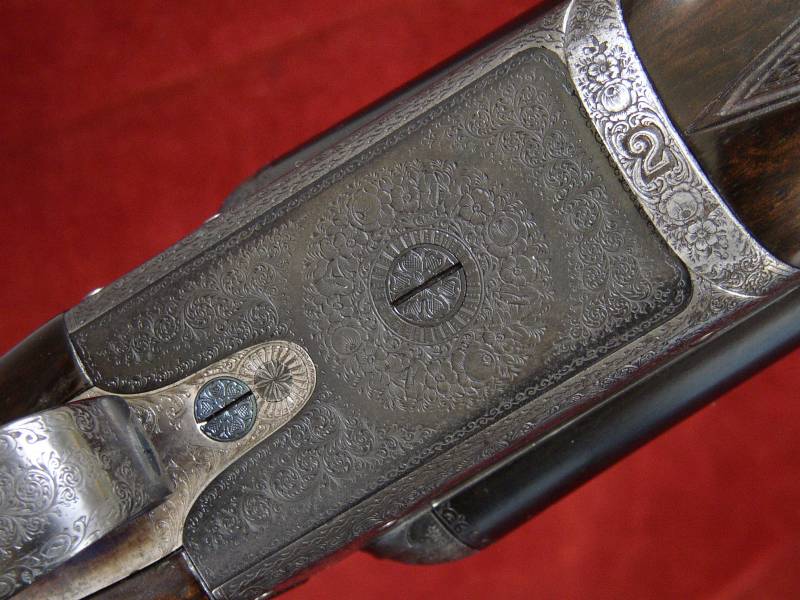

Lever' action is profusely covered with fine border, scroll and
foliate detail and this coupled with the interceptor sears, excellent
barrel measurements and sensitive restoration makes it a very
safe, pretty and 'shootable' gun for either game or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

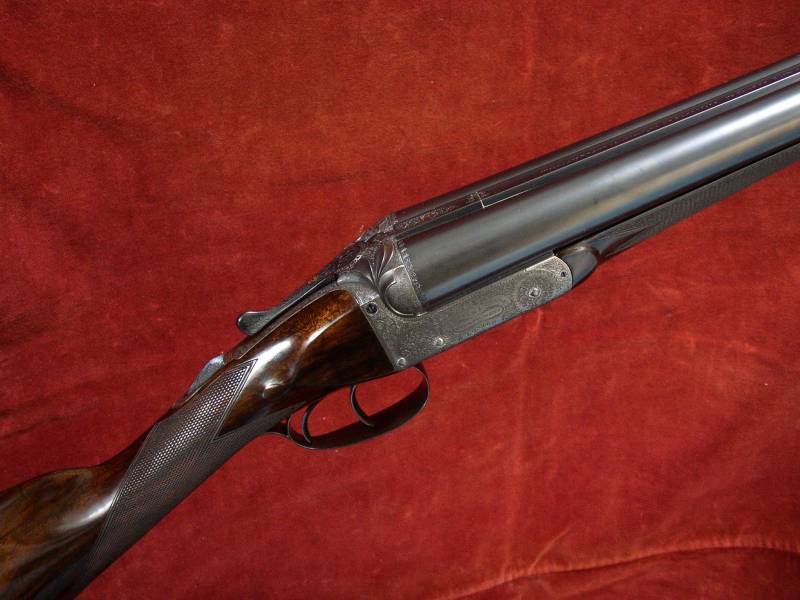

The action is of combined Webley
and Anson & Deeley design and features:
Double triggers bolted by an automatic top tang safety slide,
Interceptor sears,
Top lever opening operating a 'Purdey Bolt' by way of a 'Webley Screw
Grip',
Three point bolting including top extension,
'Disc-Set' strikers,
'Southgate' ejectors tripped by slides running from the action knuckle
to the tumblers,
Anson pushrod forend catch.
Gun weight 6lb 7 ½ oz Engraving style Best border,
bouquet & scroll with foliate detail.
Trigger pulls measure approximately: Front trigger 3 ½
lbs Rear trigger 4 lbs
The original steel barrels are 30" in length, chambered
for 2 ¾" (70mm) cartridges and are of brazed 'dovetail'
lump construction with soft soldered ribs. Top rib is of the
smooth, concave, game type. London reproof for 70mm nitro powder
cartridges in 2009
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.6mm (0.732")
|
0.734"
|
0.025" Minimum
|
0.010" (1/4)
|
Left Barrel |
18.6mm (0.732")
|
0.734"
|
0.027" Minimum
|
0.020" (1/2)
|

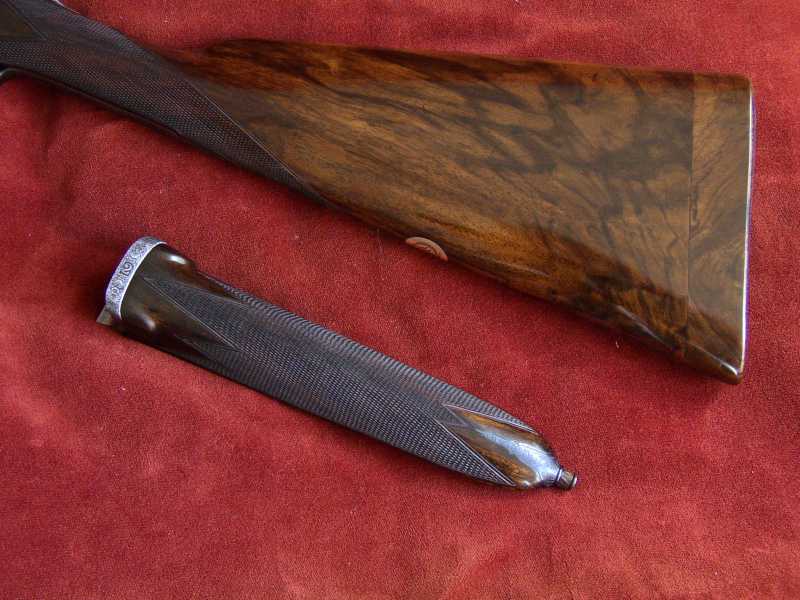

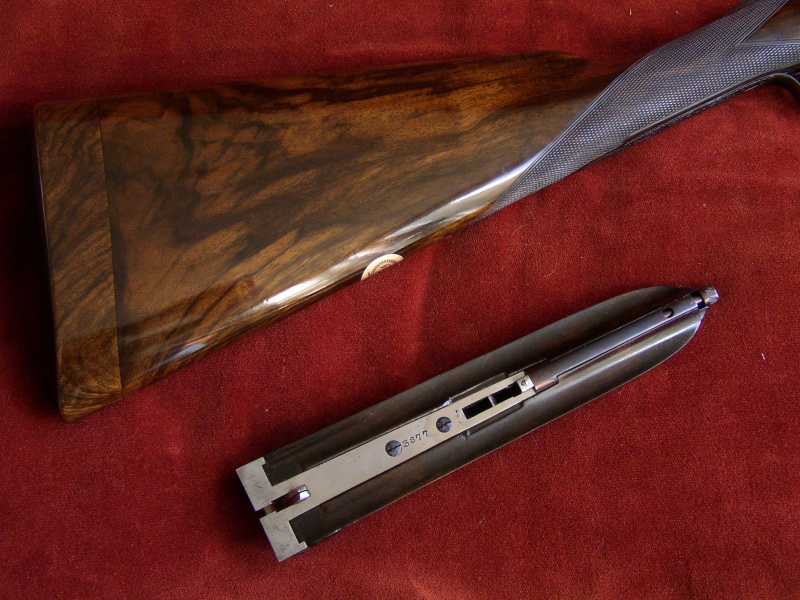

Straight Hand Stock and Splinter Forend
are crafted from highly figured walnut. The stock is cast off for a
right-handed shot, features a yellow metal escutcheon engraved with
a family coat of arms and is finished with a highly figured 1"
wood extension. There is a single very small inlet to the front edge
of the forend wood which features elegant 'bolsters' at the knuckle.
The 24 lines per inch chequering
is to the normal boxlock design with well defined drop points.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 5/8"
|
14 3/4"
|
14 3/4"
|
15 1/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 9/16"
|
1 5/8"
|
1 7/8"
|
Cast at Comb
|
Cast at Heel
|
1/8" (approximately)
|
3/8"
(approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Webley & Brain's 'Screw Grip' action patent no 3053 of 1882,
Anson & Deeley's boxlock patent no. 1756 of 1875,
'Purdey Bolt' patent no. 1104 of 1863,
Anson & Deeley's safety catch no. 907 of 1879,
Anson's interceptor sear patent no. 4089 of 1882,
'Southgate' ejectors patent no. 12314 of 1889,
Anson's forend fastener patent no. 3791 of 1872.
