J
B Warrilow, Chippenham, England
12 bore Transitional Hammergun,
Top rib engraved:
'New Patent Safety Self Indicating Semi Hammerless Universal Gun'
no. 1613
Approximate date of manufacture: 1875-1887
Click on these images for more detail.
Heritage
Guns Comment
This gun is a very rare, fabulously finished and
specified example of a transitional hammergun, manufactured before
1887 to allay the concerns of the hammergun fraternity whilst
incorporating many of the benefits of hammerless guns. The action
is profusely covered with best bold-foliate scroll and individual
flowers form the centres of many of the scrolls.The gun features
several unusual features such as locks cocked by the fall of the
barrels, assisted opening of the gun when unfired, a top tang
safety slide and interceptor sears and all these coupled with
our sensitive restoration makes it a very pretty and 'shootable'
gun for either game or clays.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

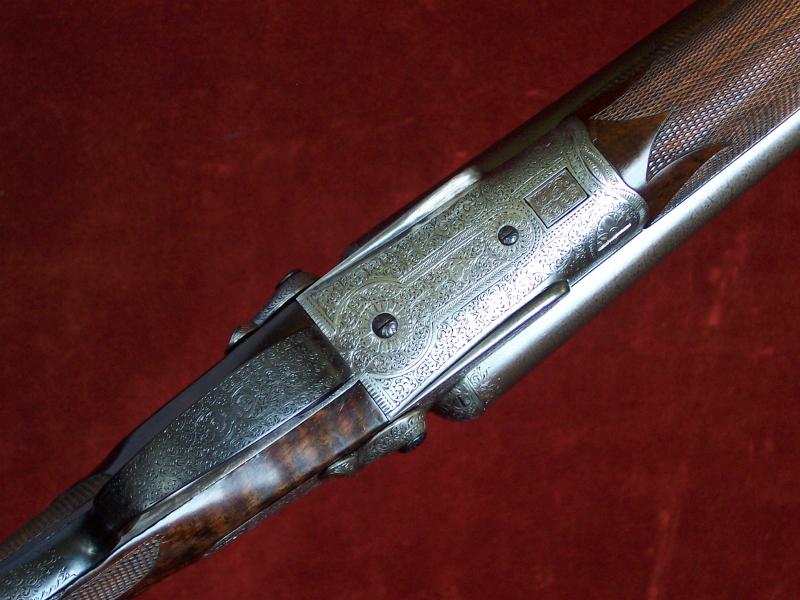

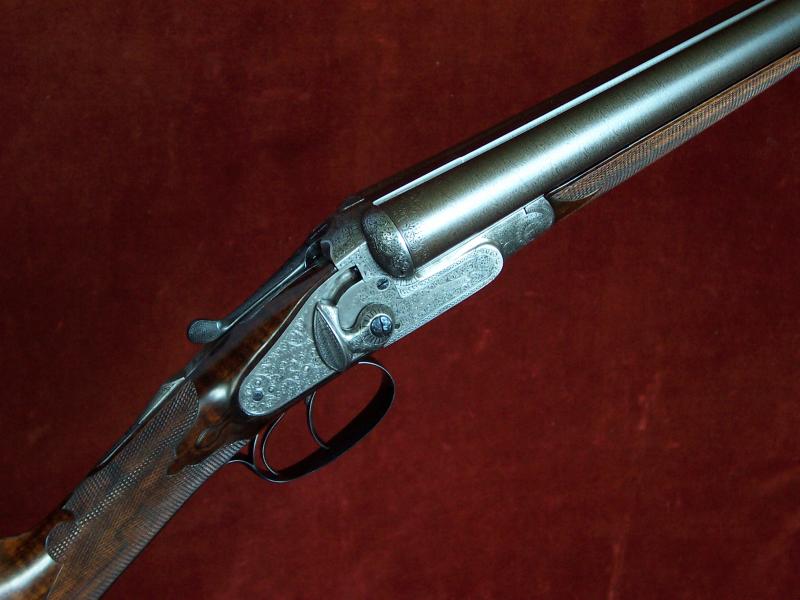

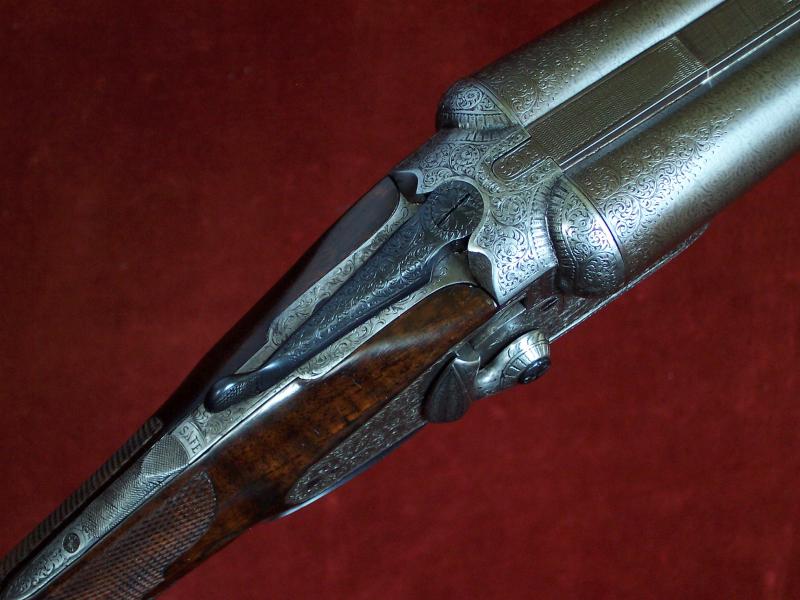

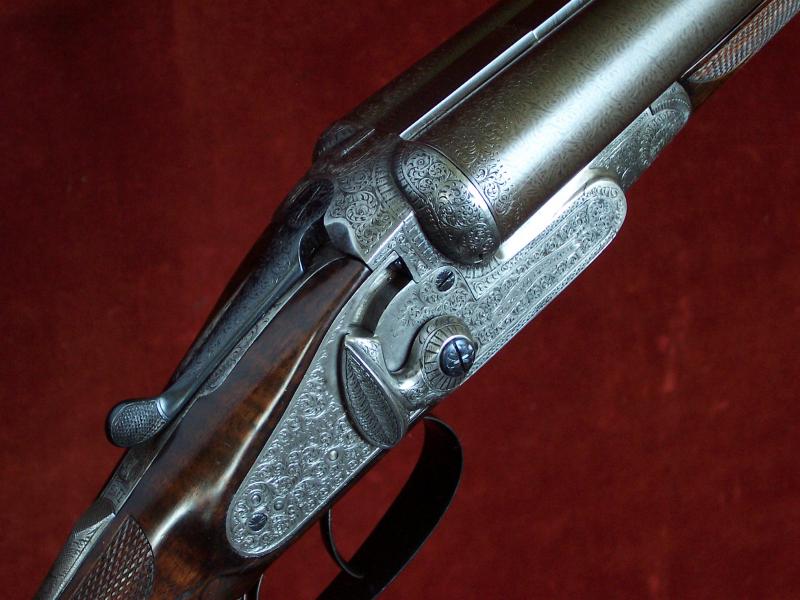

The Action
is of classic back action barlock design and features:
Double triggers bolted by an automatic top tang safety
slide,
Top lever opening, operating a 'Purdey Bolt' by way of a 'Scott Spindle',
Three point bolting including top extension,
Interceptor sears,
'Anson' forend catch
Gun Weight 6lb14oz
Engraving Style Best bold foliate with individual flowers blooms.
As is our custom, Trigger Pulls have been adjusted for 'feel'
rather that to any particular pull weight but for the record they
measure approximately: Front trigger 4 1/2lbs Rear trigger 5 lbs
The original Damascus
Barrels are 30" in length, chambered for 2 ¾" (70mm)
cartridges and are of brazed 'dovetail' lump construction with soft
soldered ribs. Top rib is of the flat, file cut type.
London re-proof for 70mm nitro powder cartridges in 2006.
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
18.4mm (0.724")
|
0.727"
|
0.025" Minimum
|
0.006"
(Imp Cyl)
|
Left Barrel |
18.6mm (0.732")
|
0.734"
|
0.021" Minimum
|
0.025"
('tight' 1/2)
|

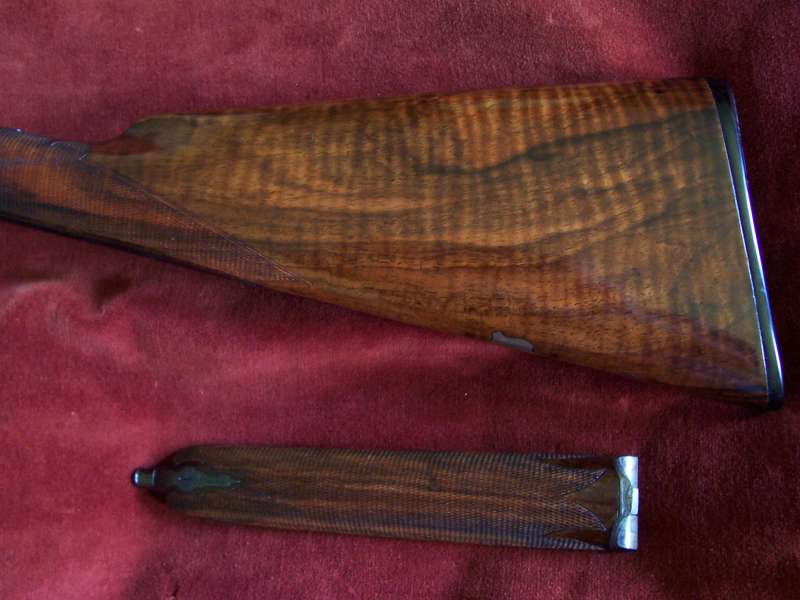

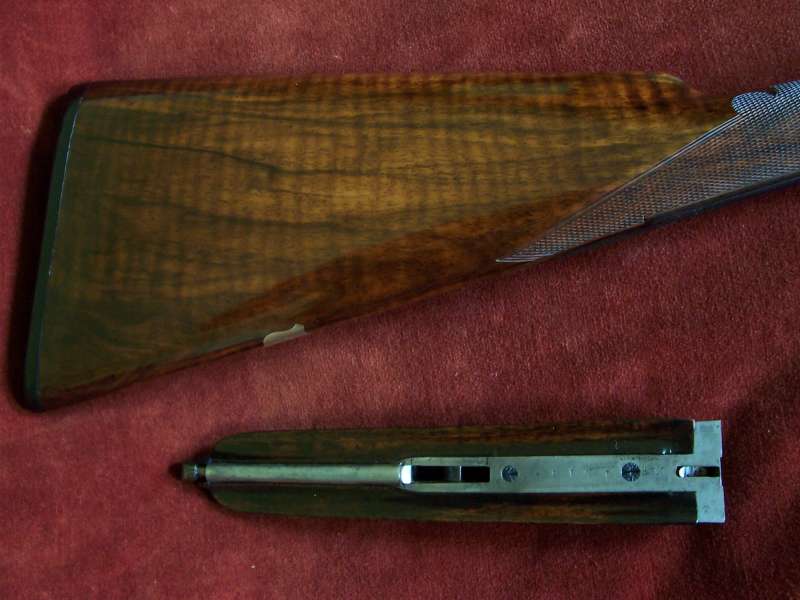

Straight Hand
Stock and Splinter Forend
are crafted from highly figured walnut. The stock is slightly cast off

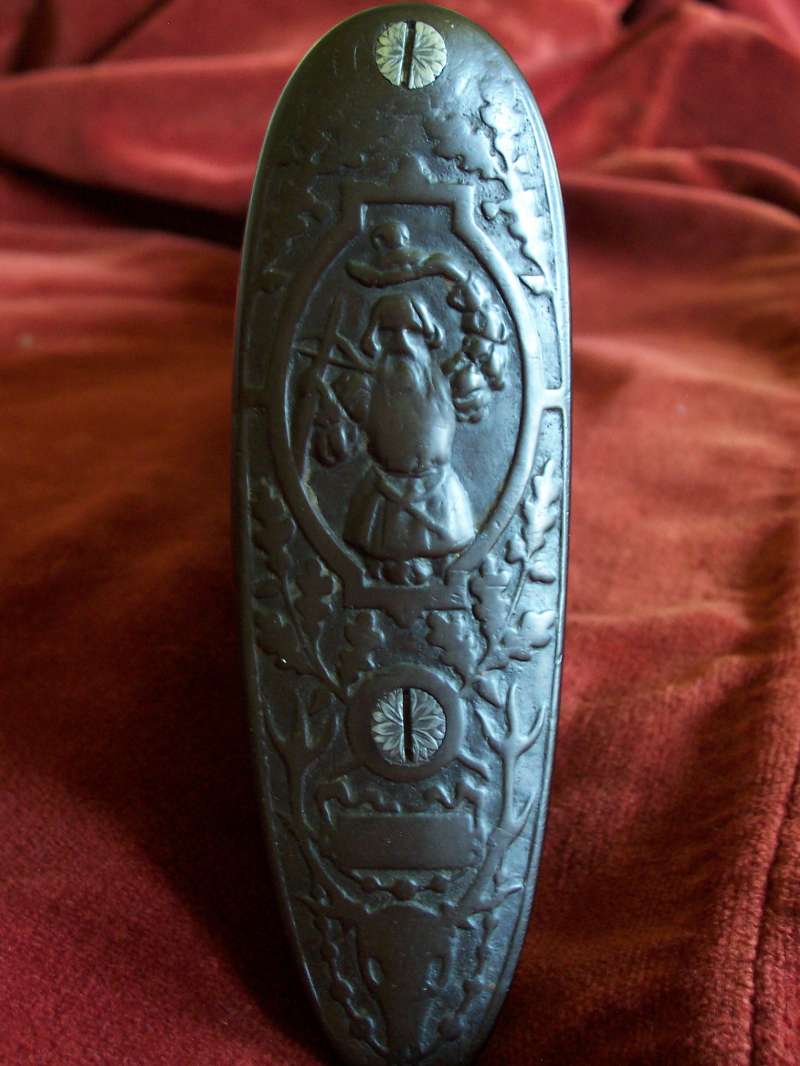

for a right-handed shot and is finished with an unusual, and very possible
original, molded 'Bakerlite' butt plate exhibiting a mounted stag's
head surmounted by a bearded hunter, surrounded by oak branches.
|
Highly figured walnut stock.
|
|
The 20 lines per inch
chequering is an unusual partly un-bordered, 'fleur-de-lys' design
with well defined drop points.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements (including pad) at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
14 1/2"
|
14 5/8"
|
14 1/2"
|
15 1/8"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 11/16"
|
1 13/16"
|
2 3/16"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Bentley's patent no. 17037 of 1884,
Bentley & Baker's patent no. 5292 of 1883,
Anson's forend fastener patent no. 3791 of 1872.
