P Webley & Son, 78 Shaftesbury
Avenue, London
16 bore Box Lock Ejector
no. 64439 (8247 internally)
Date of manufacture: pre-1897
Click on these images for more detail.
Heritage
Guns' Comment
From such a highly respected maker,
this gun is a lovely example of the Anson & Deeley boxlock
that became such a hugely successful design by the last decade

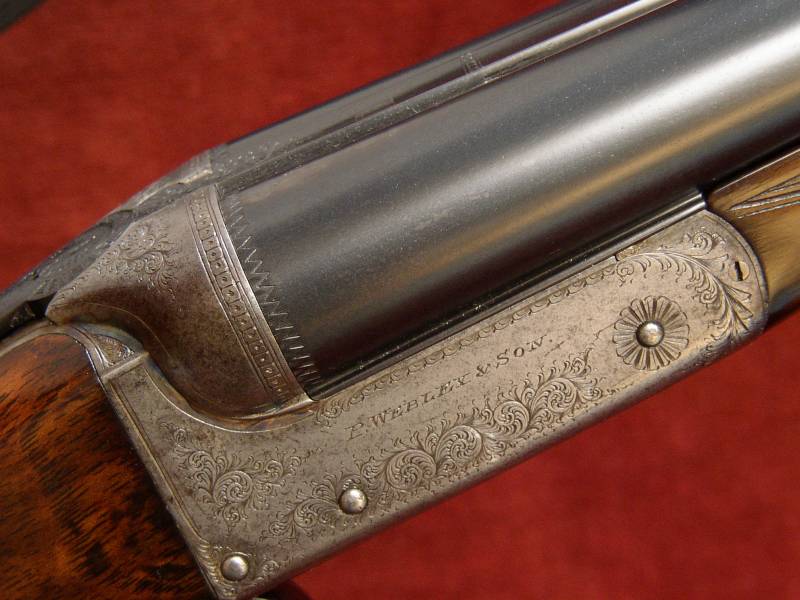

of the 19th Century. The 'Webley Horseshoe Top Lever' action is
nicely engraved with border and scroll and this coupled with the
excellent barrel measurements and sensitive restoration makes
it a very safe, pretty and 'shootable' gun for either game or
clays. There is some vestigial pitting in both tubes that has
not been lapped out to maintain the gun's excellent wall thicknesses.
The dating of this gun is complicated: no records exist but P
Webley & Son amalgamated with W & C Scott & Son to
form Webley & Scott in 1897 so this gun predates that. Furthermore,
internally the gun is numbered 8247 (possibly a Webley number)
which suggests that it was manufactured considerably earlier and
then finished in 1896 or 1897 (proof marks date from 1896 to 1904)
just before the adoption of the Webley & Scott name and issued
with a number from Scott's books.
WE REGRET THAT
THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN,
PLEASE CONTACT US.
|

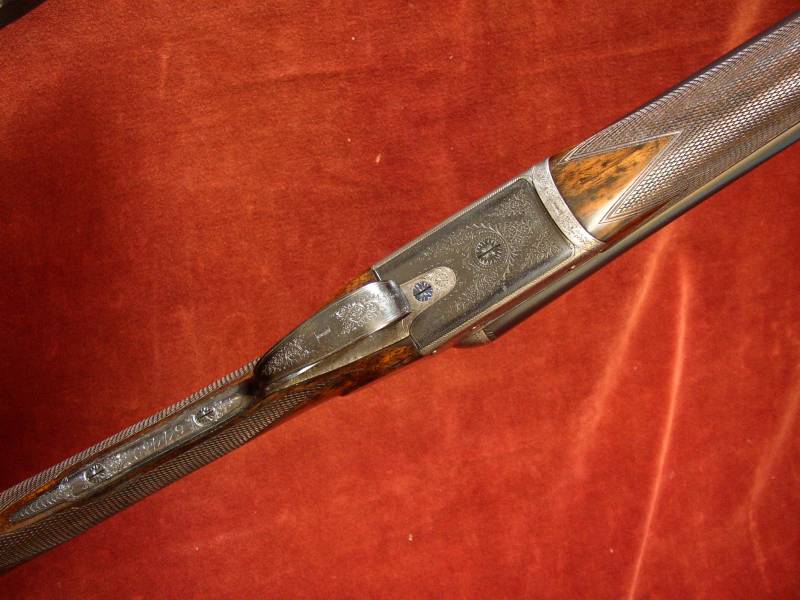

The action is of combined Webley
and Anson & Deeley design and features:
Double triggers bolted by an automatic top tang safety slide,

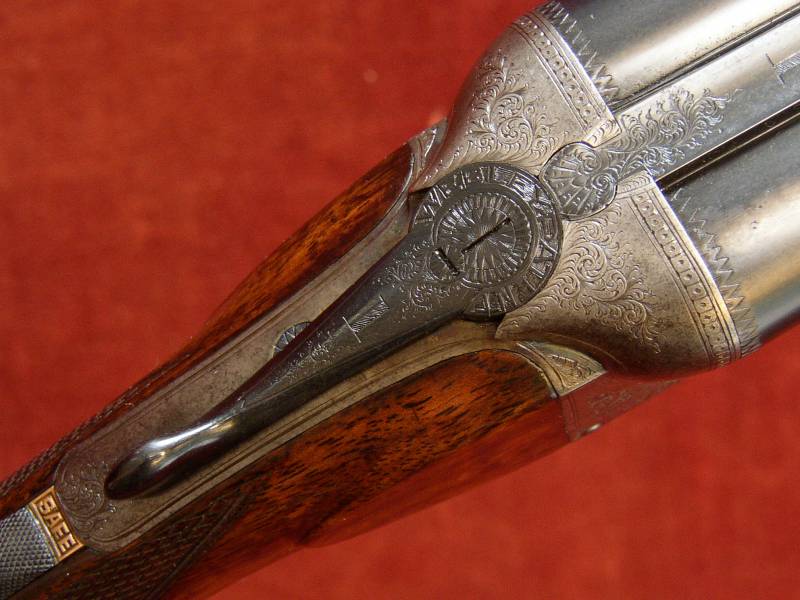

Top lever opening operating a 'Purdey Bolt' by way of a 'Webley Patent
Screw Grip',
Three point bolting including top extension, 'Disc-Set' strikers,
'Southgate' ejectors tripped by slides running from the action knuckle
to the tumblers,
Anson pushrod forend catch, traces of hardening colour.
Gun weight 6lb 1oz Engraving style Border & scroll
Trigger pulls measure approximately: Front trigger 4 lbs Rear
trigger 4 lbs
The original steel barrels are 30" in length, chambered
for 2 ¾" (70mm) cartridges and are of brazed 'dovetail'
lump construction with soft soldered ribs. There is vestigial pitting
in both tubes which was not lapped out to preserve the excellent wall
thicknesses.

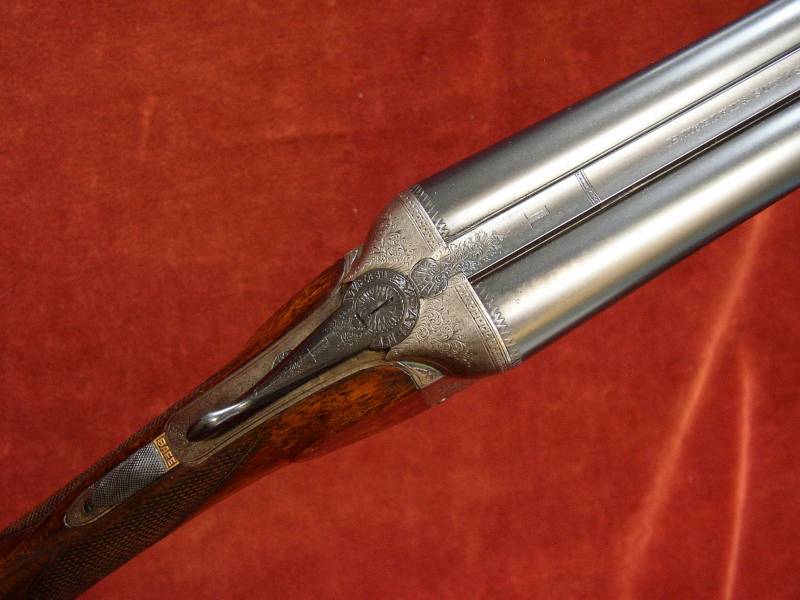

Top rib is of the smooth, concave, game
type.
London reproof for 70mm nitro powder cartridges in 2010
Approximate barrel measurements
at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
Right Barrel |
17.1mm (0.673")
|
0.673"
|
0.028"+
|
0.010" (IC)
|
Left Barrel |
16.9mm (0.665")
|
0.668"
|
0.026"+
|
0.030" (LF)
|

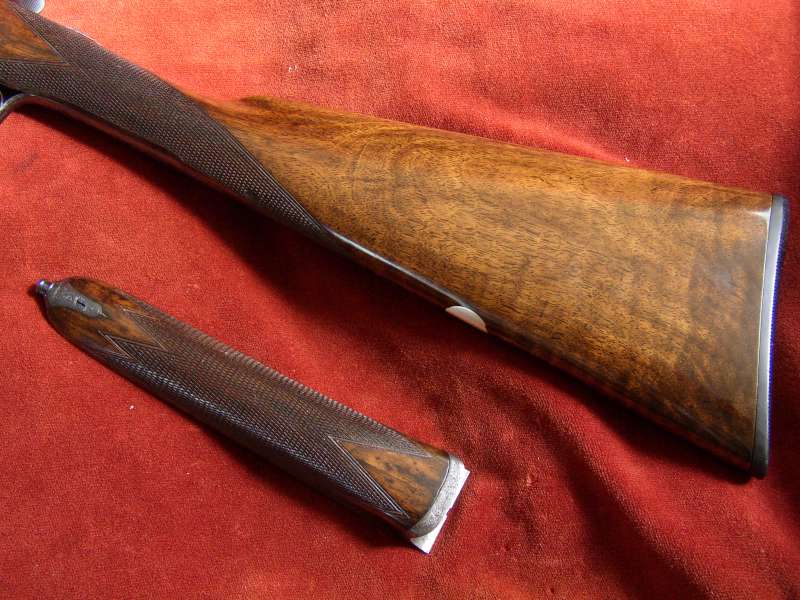

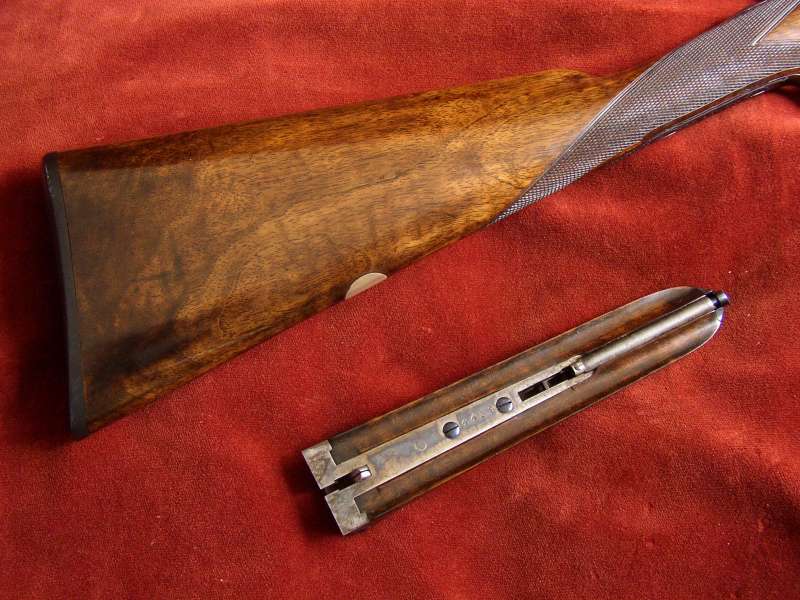

Straight Hand Stock and Splinter Forend are crafted
from well figured walnut. The stock is lightly cast-off for a right-handed
shot, features a vacant white metal escutcheon and is finished with
a 3/8" 'Bakerlite' extension.
The approximately 20 lines per inch chequering
has been cut to a normal boxlock design with well defined drop points.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock
measurements at date of publication:
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
15 1/8"
|
15 1/4"
|
15 1/4"
|
15 3/4"
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
1 1/2"
|
1 11/16"
|
2"
|
Cast at Comb
|
Cast at Heel
|
Negligible
|
1/8"
(approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Webley & Brain's 'Screw Grip' action patent no 3053 of 1882,
Anson & Deeley's boxlock patent no. 1756 of 1875,
'Purdey Bolt' patent no. 1104 of 1863,
Anson & Deeley's safety catch no. 907 of 1879,
'Southgate' ejectors patent no. 12314 of 1889,
Anson's forend fastener patent no. 3791 of 1872.
