J
Wilkes, 1 Lower James Street, Golden Square, London.
12 bore Box Lock Ejector
no. 4196 (no.1 of pair)
Approximate date of manufacture:
1897
 |
 |
 |
 |
Click on these images for more detail.
|

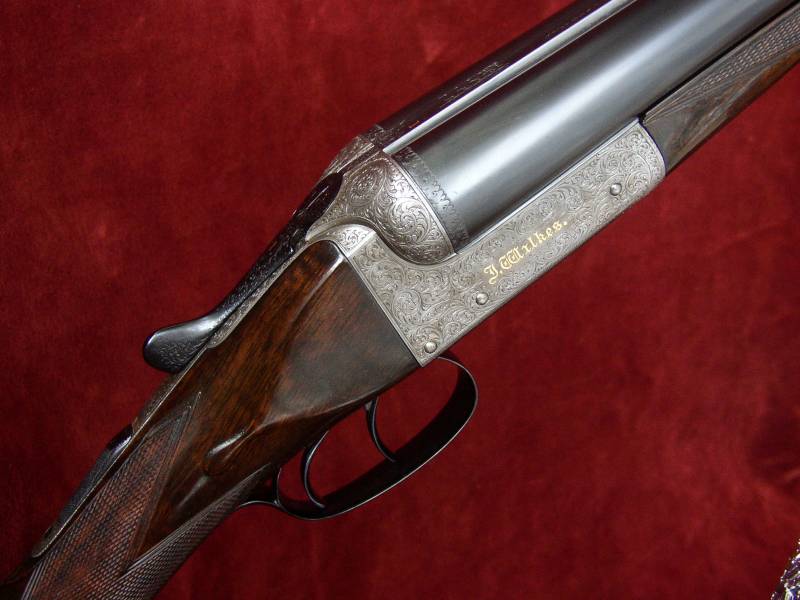

Heritage Guns Comment This gun is an unusually finely finished and specified example of the Anson & Deeley boxlock that had become such a hugely successful design by the last decade of the 19th Century. The action is profusely covered with best bold-foliate scroll with the makers name inlaid in gold and this coupled with our sensitive restoration makes it a very pretty and 'shootable' gun for either game or clays. WE REGRET THAT THIS GUN IS NOW SOLD. IF YOU ARE SEARCHING FOR A SIMILAR GUN, PLEASE CONTACT US. |
The action is of classic Anson
& Deeley boxlock :
Double triggers bolted by an automatic top tang safety
slide,

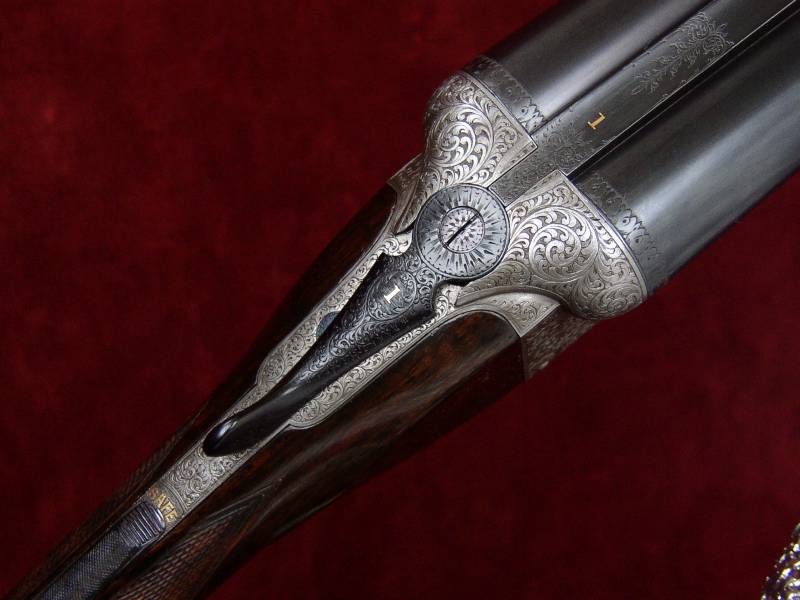

Top lever opening, operating a 'Purdey Bolt' by way of a
'Scott Spindle',
Three point bolting including top extension,
Tumbler and sear ejectors to 'Deeley' design tripped by slides running
from the action knuckle to the main springs..
Gun weight 6lb 5oz

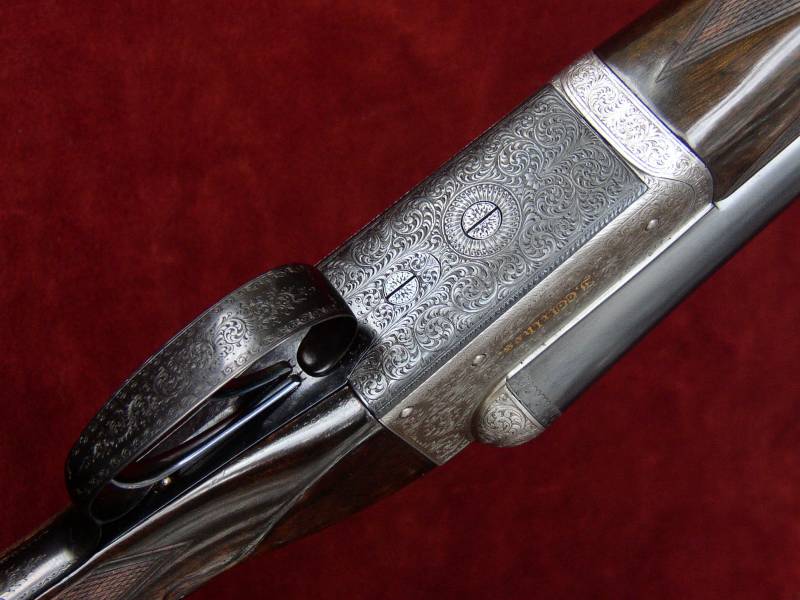

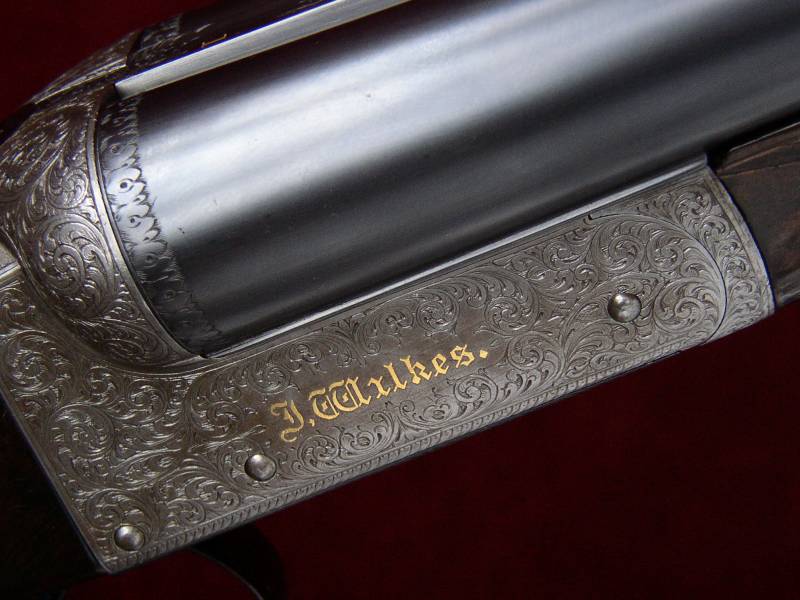

Engraving style Best bold foliate with gold inlay on sides of
action. No.1 in gold inlay on top rib, top lever and forend tip.
Trigger pulls measure approximately: Front trigger 3lbs Rear
trigger 4lbs
The steel barrels
are 30" in length, chambered for 2 ¾" (70mm) cartridges
and are of brazed 'dovetail' lump construction with soft soldered ribs.
Top rib is of the smooth, concave, game type.
London reproof for 70mm nitro powder cartridges in 2003.
Approximate barrel measurements at date of publication:
|
Nominal Proof Size
|
Bore Diameter 9" from Breech
|
Minimum Wall Thickness
|
Choke Constriction
|
|
|
Right Barrel
|
18.4mm (.724")
|
0.726"
|
0.025" Minimum
|
0.007" (1/4)
|
|
Left Barrel
|
18.5mm (.728")
|
0.731"
|
0.018" Minimum
|
0.023" (1/2)
|
Note: The left hand minimum barrel thickness of 0.018" is in
a small area near the bottom rib at about 13-14" from the muzzle..
Otherwise the barrel wall thickness is above 0.020". The barrels
were subjected to 2 3/4" proof after the barrel work was
done and they passed proof without any sign of weakness. Sleeving
of the barrels has been considered but since proof had been passed,
it was decided to first offer the gun with its original barrels. TIG,
so called 'Invisible', sleeving of this gun could be done for an additional
£500 on the list price.

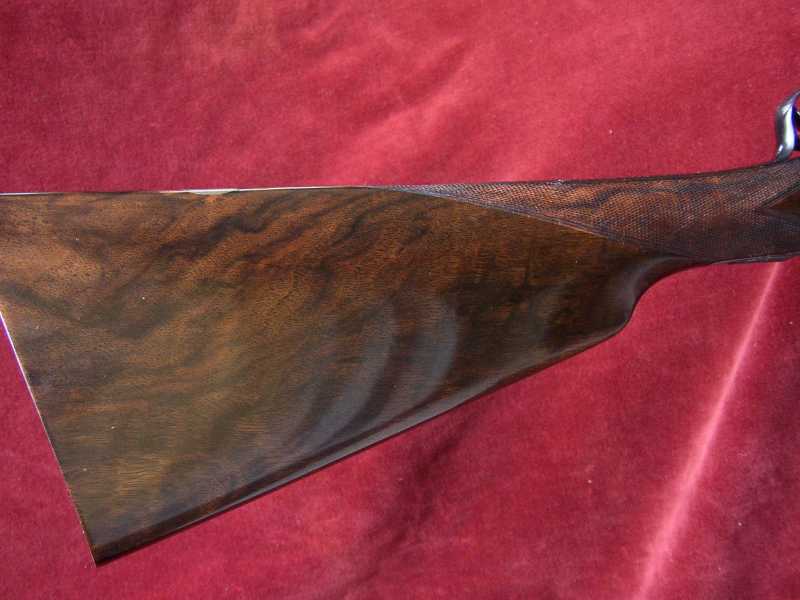

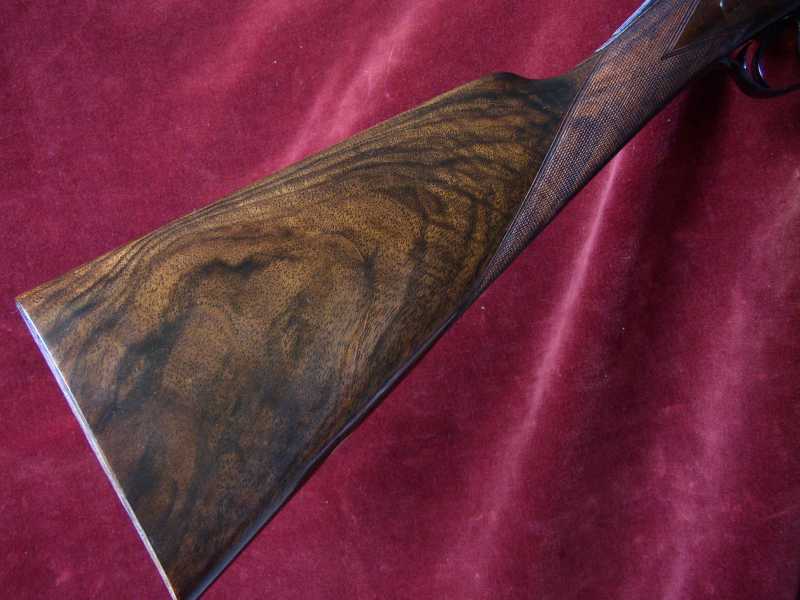

Straight Hand Stock and Splinter Forend
are the original well figured walnut with well defined drop points and
blank oval. The stock is slightly cast off for
a right-handed shot.
The butt has been left unfinished for the purchasers
choice of style, although the original 'Silvers' recoil pad is available
for refitting.
 |
Original well figured walnut
|
 |
The 24 lines per inch
chequering is to normal box lock design.
The stock is finished with a traditional linseed oil based preparation
as used on best guns by one of the top English makers. This finish uses
no grain fillers to achieve its deep, smooth lustre, only many hours
of alternate build and flatting off of the surface.
Approximate stock measurements at date of publication:
|
Pull to Heel
|
Pull to Bump
|
Pull to Centre
|
Pull to Toe
|
|
13 7/8"
|
n/a
|
13 5/8"
|
13 7/8"
|
|
Drop at Comb
|
Drop at Face
|
Drop at Heel
|
|
1 7/16"
|
1 9/16"
|
2 1/8"
|
|
Cast at Comb
|
Cast at Heel
|
|
1/16" (approximate)
|
1/8" (approximate)
|
For the purposes of these measurements,
'Drop at Face' is the 'drop' measurement taken on a line perpendicular
to the
line joining the trigger and centre of the butt at approximately 8"
from the trigger (front trigger on a double trigger gun).
Patents Exhibited include:
Deeley ejectors patent no. 4289 of 1886,
Anson & Deeley boxlock patent no. 1756 of 1875,
Anson & Deeley safety catch no. 907 of 1879,
'Purdey Bolt' patent no. 1104 of 1863,
'Scott Spindle' patent no. 2752 of 1865,
Scott's top extension patent no. 1902 of 1875,
Anson's forend fastener patent no. 3791 of 1872
and last but not least
Henry's snap cap patent no. 3257 of 1870.
